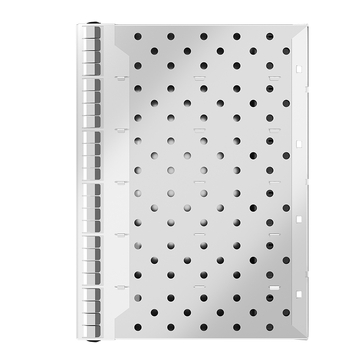

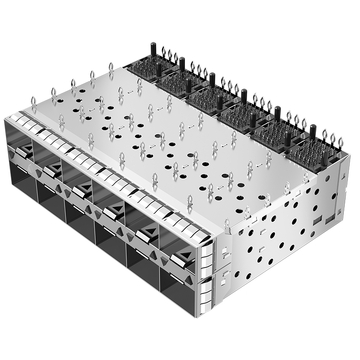

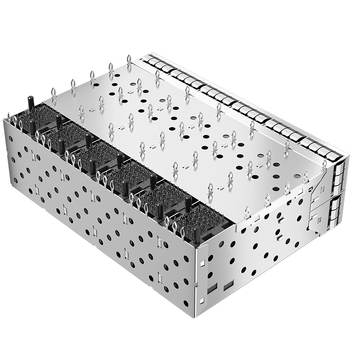

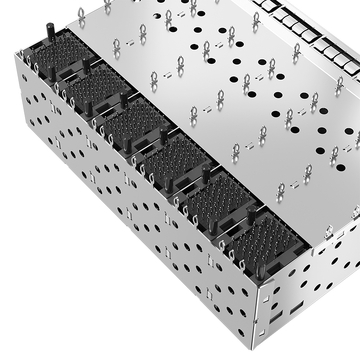

LP26CC01303S SFP28 2x6 Cage&Connector Press-Fit With Outer Light Pipe EMI Spring Finger

Name: LP26CC01303S SFP28 2x6 Cage&Connector Press-Fit With Outer Light Pipe EMI Spring Finger
Brand: LINK-PP
SKU: 203615
Price: 18.32 USD
Availability: InStock
Rating: 4.9 (19 reviews)

Product: LP26CC01303S SFP28 2x6 Cage&Connector Press-Fit With Outer Light Pipe EMI Spring Finger
SKU: 203615
P/N: LP26CC01303S
Price: $ 22.90
Stock: 190 in Stock
Sold: 2.5K
Product URL: https://www.l-p.com/products/493068.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

19 Reviews

3 Questions

2.5K Sold

$ 22.90

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 22.90

$ 21.76

100

$ 20.61

1000

$ 19.47

2500

$ 18.32

P/N: LP26CC01303S SKU: 203615

Compatible:: LINK-PP; Amphenol; Molex

Compatible P/N:: LP26CC01303S

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

190 in Stock .

Quantity:

Total Price:

$ 22.90

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP26CC01303S SFP28 2x6 Cage&Connector With Outer Light Pipe EMI Spring Finger

LINK-PP Part Number	LP26CC01303S	Part Status	Active
Connector Style	Receptacle with Cage, Ganged (2x6)	Connector Type	SFP28
Mounting Type	Through Hole, Right Angle	Termination	Press-Fit
Port Matrix Configuration	2x6 Port	Number of Ports	12
Features	EMI Shielded	Termination	Press-Fit
Included Lightpipe	Outer Light Pipe	EMI Containment Feature Type	EMI Springs
Height (Inches/mm)	1.00/25.40	Length (Inches/mm)	2.490/63.25
Width (Inches/mm)	3.396/86.25	Operating Temperature Range	-40 – 85°C

Model Comparison Table

	Current Model LP26CC01303S	LP26CC01203	LP26CC01103

Compatible	LINK-PP	LINK-PP	LINK-PP
Connector	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)
Operating Temperature	-40 – 85°C	-40 – 85°C	-40 – 85°C
Pluggable I/O Product Type	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs
Lightpipe Options	With Lightpipe	With Lightpipe	With Lightpipe
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
Part Status	Active	Active	Active
Connector Style	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit
Port Matrix Configuration	2x6 Port	2x6 Port	2x6 Port
Number of Ports	12	12	12
Features	EMI Shielded	EMI Shielded	EMI Shielded
Included Lightpipe	Outer Light Pipe	Inner Light Pipe	Inner/Outer Light Pipe
Height (Inches/mm)	1.00/25.40	1.008/25.60	1.00/25.40
Length (Inches/mm)	2.490/63.25	2.488/63.20	2.490/63.25
Width (Inches/mm)	3.396/86.25	3.40/86.35	3.396/86.25

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP26CC01303S.pdf Download

Questions & Answers
Ask a Question

No data

Q: What warranty and return policy apply to LP26CC01303S? Where can I download its mechanical PDF drawing? By P***n

A: It comes with five‑year warranty plus 30‑day return and exchange service. Datasheet PDF can be downloaded directly from product page. By admin
Q: Can LP26CC01303S replace Molex or Amphenol 2x6 stacked SFP28 cage for our data center switch PCB? By J***s

A: It works as compatible second source. Download datasheet and verify footprint plus outer light pipe dimensions before mass production. By candy
Q: What is the key difference between LP26CC01303S, LP26CC01203 and LP26CC01103? Can I swap them directly on existing PCB? By R***d

A: They differ in light‑pipe configuration. Always compare complete datasheets. Direct drop‑in swap on legacy PCB cannot be guaranteed. By admin
