What should I pay attention to for chassis bezel design with LP26CC01203 inner light pipe?

Your bezel cutout must match the datasheet light pipe profile. Wrong opening size will block LED light transmission.

Can SFP+ transceivers be used normally in this SFP28 2x6 stacked cage?

SFP+ modules fit mechanically, but the cage is optimized for SFP28 25G signals. You need to verify electrical performance on your board.

How do EMI spring fingers of LP26CC01203 protect high speed signals from electromagnetic interference?

Continuous contact between EMI springs and housing creates shielding, reducing crosstalk for 25G signal transmission.

Breadcrumb: Home; Products; Fiber Optic Cages & Connectors; SFP28 Cages & Connectors; 2X6 SFP28 Cage; 203613

Click to open expanded view

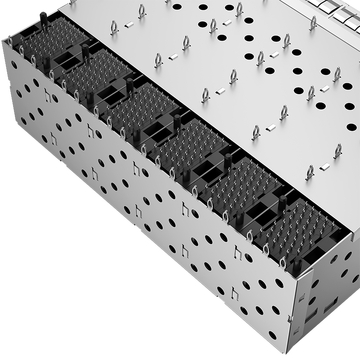

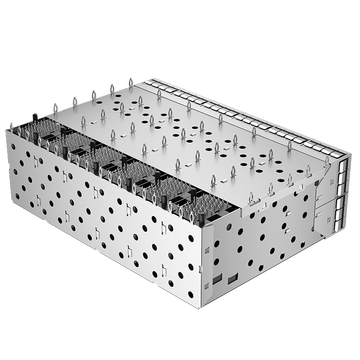

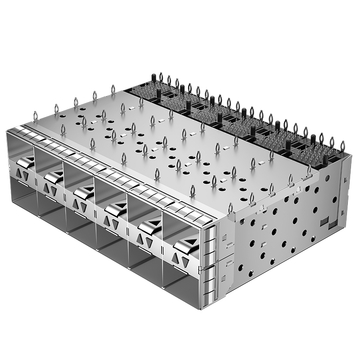

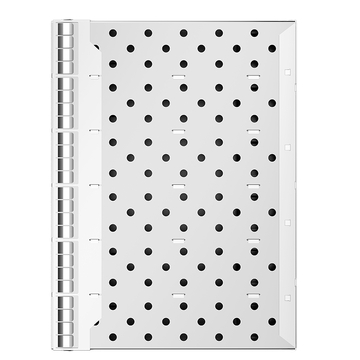

LP26CC01203 SFP28 2x6 Cage&Connector Press-Fit With Inner Light Pipe EMI Spring Finger

Name: LP26CC01203 SFP28 2x6 Cage&Connector Press-Fit With Inner Light Pipe EMI Spring Finger
Brand: LINK-PP
SKU: 203613
Price: 18.32 USD
Availability: InStock
Rating: 4.9 (21 reviews)

Product: LP26CC01203 SFP28 2x6 Cage&Connector Press-Fit With Inner Light Pipe EMI Spring Finger
SKU: 203613
P/N: LP26CC01203
Price: $ 22.90
Stock: 68 in Stock
Sold: 935
Product URL: https://www.l-p.com/products/493066.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

21 Reviews

3 Questions

935 Sold

$ 22.90

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 22.90

$ 21.76

100

$ 20.61

1000

$ 19.47

2500

$ 18.32

P/N: LP26CC01203 SKU: 203613

Compatible:: LINK-PP; Amphenol; Molex

Compatible P/N:: LP26CC01203

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

68 in Stock .

Quantity:

Total Price:

$ 22.90

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP26CC01203 SFP28 2x6 Cage&Connector With Inner Light Pipe EMI Spring Finger

LINK-PP Part Number	LP26CC01203	Part Status	Active
Connector Style	Receptacle with Cage, Ganged (2x6)	Connector Type	SFP28
Mounting Type	Through Hole, Right Angle	Termination	Press-Fit
Port Matrix Configuration	2x6 Port	Number of Ports	12
Features	EMI Shielded	Termination	Press-Fit
Included Lightpipe	Inner Light Pipe	EMI Containment Feature Type	EMI Springs
Height (Inches/mm)	1.008/25.60	Length (Inches/mm)	2.488/63.20
Width (Inches/mm)	3.40/86.35	Operating Temperature Range	-40 – 85°C

Model Comparison Table

	Current Model LP26CC01203	LP26CC01303S	LP26CC01103

Compatible	LINK-PP	LINK-PP	LINK-PP
Connector	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)
Operating Temperature	-40 – 85°C	-40 – 85°C	-40 – 85°C
Pluggable I/O Product Type	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs
Lightpipe Options	With Lightpipe	With Lightpipe	With Lightpipe
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
Part Status	Active	Active	Active
Connector Style	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)	Receptacle with Cage, Ganged (2x6)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit
Port Matrix Configuration	2x6 Port	2x6 Port	2x6 Port
Number of Ports	12	12	12
Features	EMI Shielded	EMI Shielded	EMI Shielded
Included Lightpipe	Inner Light Pipe	Outer Light Pipe	Inner/Outer Light Pipe
Height (Inches/mm)	1.008/25.60	1.00/25.40	1.00/25.40
Length (Inches/mm)	2.488/63.20	2.490/63.25	2.490/63.25
Width (Inches/mm)	3.40/86.35	3.396/86.25	3.396/86.25

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP26CC01203.pdf Download

Questions & Answers
Ask a Question

No data

Q: What should I pay attention to for chassis bezel design with LP26CC01203 inner light pipe? By K***y

A: Your bezel cutout must match the datasheet light pipe profile. Wrong opening size will block LED light transmission. By admin
Q: Can SFP+ transceivers be used normally in this SFP28 2x6 stacked cage? By C***s

A: SFP+ modules fit mechanically, but the cage is optimized for SFP28 25G signals. You need to verify electrical performance on your board. By admin
Q: How do EMI spring fingers of LP26CC01203 protect high speed signals from electromagnetic interference? By R***s

A: Continuous contact between EMI springs and housing creates shielding, reducing crosstalk for 25G signal transmission. By admin
