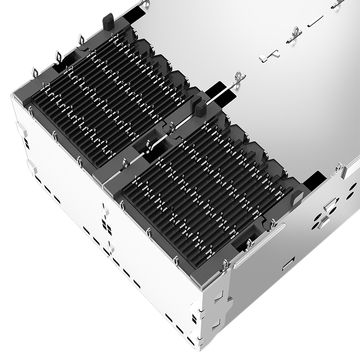

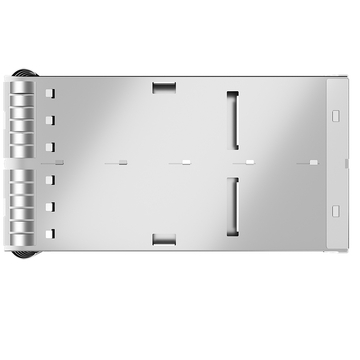

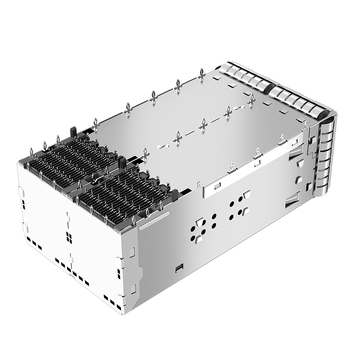

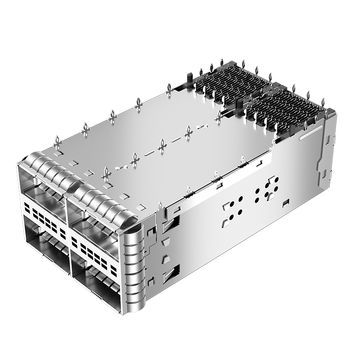

LP22FC01003S qsfp28 2x2 cage assembly with integrated connector with emi spring finger

LP22FC01003S QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger

Product summary

Product
LP22FC01003S QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger
SKU
203512
P/N
LP22FC01003S
Price
$ 14.05
Stock
98 in Stock
Sold
1.9K
Unit price $ 14.05
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22FC01003SSKU: 203512

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP22FC01003S
Volume pricing Online tiers · larger qty or custom price on request
$ 14.050
1–99 pcs
$ 13.575
100–999 pcs
$ 12.984
1,000–4,999 pcs
$ 11.945
5,000–9,999 pcs
$ 10.972
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
98 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 14.05

LINK-PP LP22FC01003S QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger

LINK-PP Part Number LP22FC01003S Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 2×2 Number of Ports 4
Included Connector Yes Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.062/1.57 (MIN)
Length (Inches/mm) 2.874/72.99 (REF) Width (Inches/mm) 1.506/38.25 (REF)
Height (Inches/mm) 1.000/25.40 (REF) Cage Material Stainless Steel
Contact Plating Gold over Nickel Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22FC01003S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    To the cage, the plating and the plastic parts. Modules have their own rating, and a commercial 100G SR4 module is usually 0 to 70℃, so at -30℃ the module may not link even though the cage is fine. For cold deployments use industrial temperature modules and check that the latch plastic is rated for the low end, some are not. by LINK-PP Technical Support
  • A:
    At 38.25mm for four ports the guides would be very narrow and light bleed between adjacent ports becomes a real problem. Rather than ship a guide that shows the wrong port, we leave it out. Most customers drive a front panel LED board. If you need per port status in the cage, the 1x1 QSFP28 family has a guide version. by LINK-PP Technical Support
  • A:
    Around 1.9 to 2.1kN for the assembly. Use a flat tool covering the full 72.99mm length and press at 0.4mm per second with force monitoring. Support the board under the middle of the block with two standoffs, otherwise a 1.6mm board bows and the middle ports sit high. Check the four corner ports, target under 0.1mm. by LINK-PP Technical Support
  • A:
    No. QSFP-DD is deeper and has a different latch, it needs a QSFP-DD specific cage. This part is QSFP28, so it takes 100G QSFP28 modules. If you want 400G breakout, put the QSFP-DD port on the spine and use four 100G links into four of these cages on the leaf, which is exactly how most of our customers use it. by LINK-PP Technical Support
  • A:
    Plan for at least 1.0 m/s through the block at 40℃ inlet, and duct the air so it enters at the bezel and exits behind the cage. Without a duct we measured module cases at 82℃, which is over the limit. With a duct at 1.0 m/s we got 74℃. At 45℃ ambient you need 1.2 m/s or a heat spreader on top of the modules, the cage alone cannot fix it. by LINK-PP Technical Support

Customer Reviews

  • 5

    31 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (31)
No data
M***e
Norway
Verified Purchase
5.0
2026-11-15
Four QSFP28 ports in 38.25 mm, handy where the cage count runs high.
E***r
Chile
Verified Purchase
5.0
2026-10-25
25.15 mm of height cleared the heatsink we had already bolted above the card, and four modules loaded at -40 to 85 ℃ without a derating note. The cage alone means a damaged port can be reworked without touching the connector, which has saved us a board.
T***w
Spain
Verified Purchase
5.0
2026-10-25
Good part for a dense 100G design. The only thing I would ask for is a version with a heat sink on the 2x2, because at 45℃ ambient we are at the edge with four modules.
J***n
Poland
Verified Purchase
5.0
2026-10-20
We had to add a 0.5mm thermal pad between the module and a chassis heat spreader above the cage on two ports. The cage top is open, so the pad sits on the module. It dropped module case by 5℃.
B***d
Viet Nam
Verified Purchase
5.0
2026-09-14
Ordered 40 for a pilot and 20 more for a second site. Same revision, same plating, no difference in press force. That consistency is what let us skip a re-qualification on the second order.
