LP22FC01603 qsfp28 2x2 cage assembly with integrated connector with emi spring finger light pipe

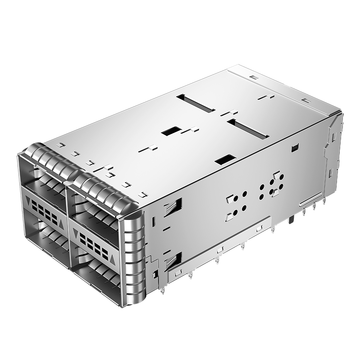

LP22FC01603 QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger Light Pipe

Product summary

Product
LP22FC01603 QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger Light Pipe
SKU
201979
P/N
LP22FC01603
Price
$ 14.05
Stock
120 in Stock
Sold
880
Unit price $ 14.05
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22FC01603SKU: 201979

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP22FC01603
Volume pricing Online tiers · larger qty or custom price on request
$ 14.050
1–99 pcs
$ 13.575
100–999 pcs
$ 12.984
1,000–4,999 pcs
$ 11.945
5,000–9,999 pcs
$ 10.972
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
120 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 14.05

LINK-PP LP22FC01603 QSFP28 2x2 Cage Assembly With Integrated Connector With EMI Spring Finger Light Pipe

LINK-PP Part Number LP22FC01603 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 2×2 Number of Ports 4
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.062/1.57 (MIN)
Length (Inches/mm) 2.874/72.99 (REF) Width (Inches/mm) 1.506/38.25 (REF)
Height (Inches/mm) 1.000/25.40 (REF) Cage Material Stainless Steel
Contact Plating Gold over Nickel Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22FC01603.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Correct, there is no second connector to order. The four QSFP28 host contacts, shielding shell and compliant legs arrive as one press-fit assembly, so the board sees one placement and a single arbor press cycle rather than a cage plus a separate connector. That removes the alignment tolerance between two parts. What still has to be specified is the plated through hole diameter, hole finish and host side footprint; our footprint drawing lists all three, and the panel cutout should be checked against the 38.25mm width. by LINK-PP Technical Support
  • A:
    Work back from the faceplate, not the part number. On the 01603 two moulded guides bring board LED output up to both rows, so a host driving per port activity lamps gets an indicator at each of the four bays. If status comes from the switch CLI, that light path stays unused and the 01003S is cheaper. Both share the 25.15mm stack, 38.25mm width, press-fit legs and EMI springs. The guided variant needs clear bezel mouths at both rows, or the upper pair reads dim. by LINK-PP Technical Support
  • A:
    Plan for the 25.15mm stack height as well as the 38.25mm width, and leave room behind the faceplate for four boots plus the 72.99mm right angle body. The upper row sits noticeably higher than a single row cage, so a bezel drawn for a 1x2 part will often shade the top lightpipe mouths. Check that a plug latches in all four bays with the panel fitted, not on a bare board. Airflow over the upper row is worth a look as well, since four pluggable modules share one frame. by LINK-PP Technical Support
  • A:
    The two moulded guides pick up the board LEDs and carry their light to the faceplate beside the upper and lower rows. Place the LEDs at the pitch shown in the recommended footprint and keep the lightpipe mouths flush with the bezel cutout, otherwise the upper row reads dim. Drive current matters too, so check both rows at the same setting during bring up. If your panel has a lip that shades the top opening, trim it before blaming the LED or the guide. by LINK-PP Technical Support
