cisco qdd-400g-dr4-s compatible 400gbase-dr4 qsfp-dd 1310nm 500m mpo-12 apc smf transceiver module
Click to open expanded view

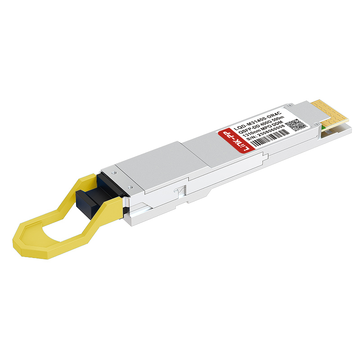

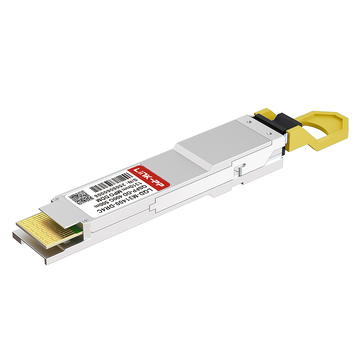

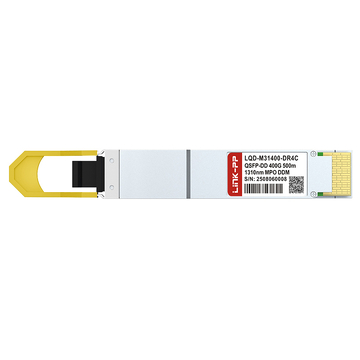

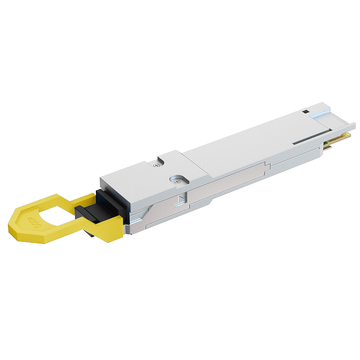

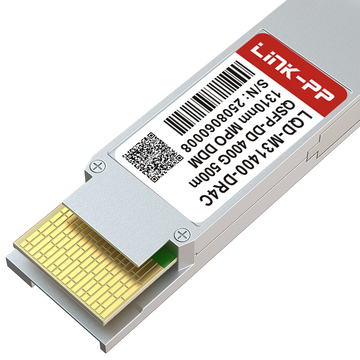

Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD 1310nm 500m MPO-12/APC SMF Transceiver Module

Product summary

Product
Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD 1310nm 500m MPO-12/APC SMF Transceiver Module
SKU
228721
P/N
LQD-M31400-DR4C
Price
$ 560.00
Stock
597 in Stock
Sold
1.3K
Unit price $ 560.00
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LQD-M31400-DR4CSKU: 228721

Compatible with Cisco QDD-400G-DR4-SDatasheetTest reportAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 560.00
1–9 pcs
$ 543.20
10–99 pcs
$ 526.40
100–999 pcs
$ 509.60
1,000–2,999 pcs
$ 492.80
≥3,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
597 in Stock
Shipping:
Free Shipping
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 560.00

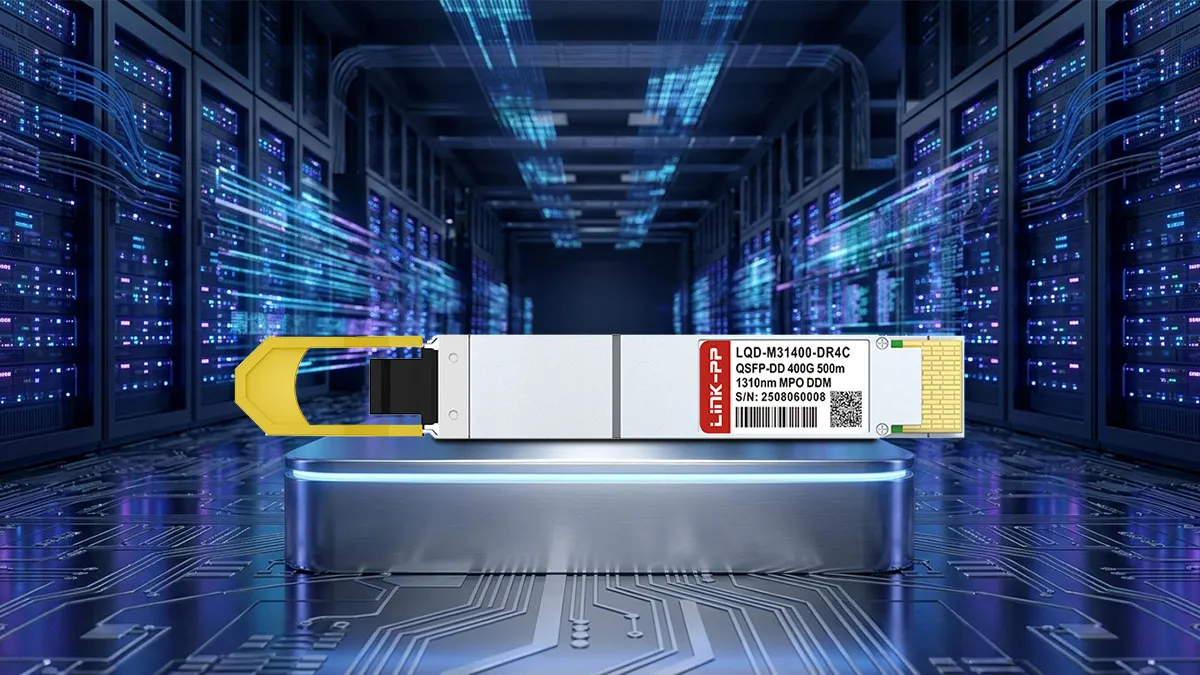

Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD Specifications

The Cisco QDD-400G-DR4-S Compatible LINK-PP module is a high-performance 400G QSFP-DD DR4 optical transceiver designed for 500m single-mode fiber applications. Operating via an 8-channel 53.125Gb/s PAM4 electrical interface and a 4-channel 106.25Gb/s optical architecture , it features a single 3.3V power supply , a maximum power consumption of 9.5W , and integrated digital diagnostic monitoring functions.

Cisco Part Number QDD-400G-DR4-S Vendor Name LINK-PP
Form Factor QSFP-DD Max Data Rate 425Gbps
Wavelength 1310nm Max Cable Distance 500m
Modulation Format PAM4 Media SMF
Connector MPO-12/APC Receiver Type

PIN

Modulation (Electrical)
8x50G-PAM4 Modulation (Optical)

4x100G-PAM4

DDM/DOM Supported Operating Temperature Range

0°C to +70°C

Protocols
QSFP-DD MSA HW Rev 5.1, QSFP-DD CMIS Rev 5.0, IEEE 802.3bs Warranty

5 Years

Key Features of Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD

This cutting-edge module delivers compliant operation with IEEE Std 802.3bs, QSFP-DD MSA, and CMIS4.0 specifications. It boasts high-density integration , robust EMI resistance , hot-pluggable efficiency , and a commercial case operating temperature range from 0 to 70°C, making it ideal for standard networking.

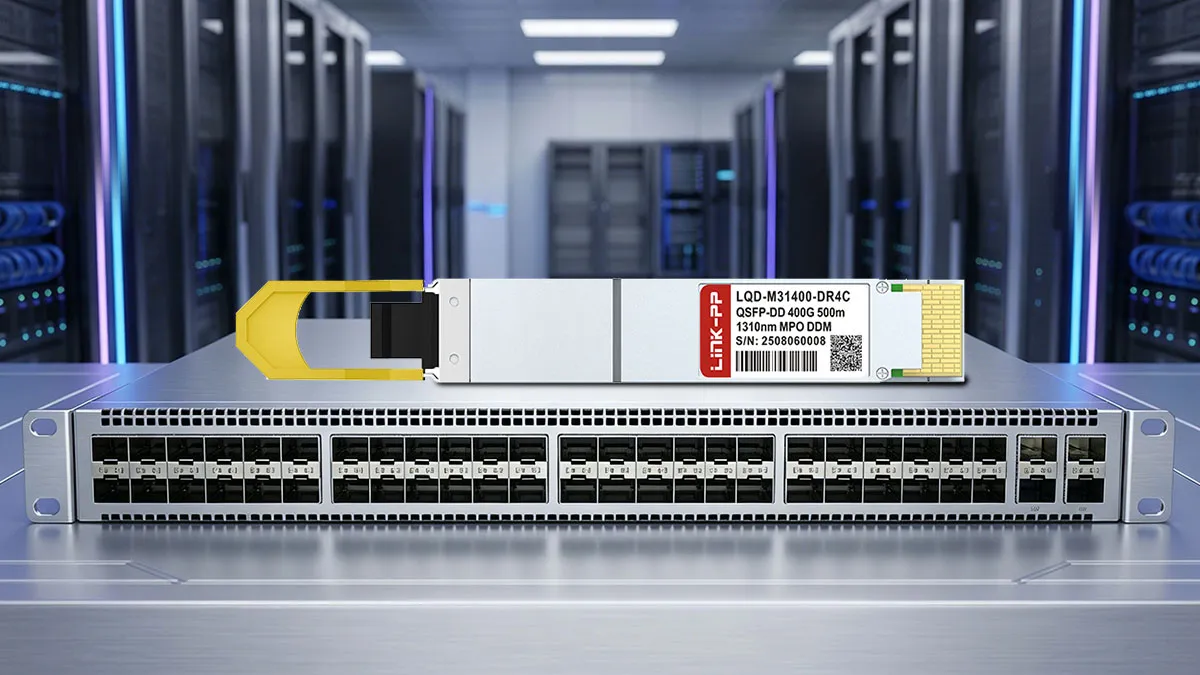

Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD Optical Module

The Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD optical module combines an 8:4 Mux and a PAM4 Retimer to effectively aggregate data. This ensures exceptional optical signal integrity and low latency across modern cloud infrastructures.

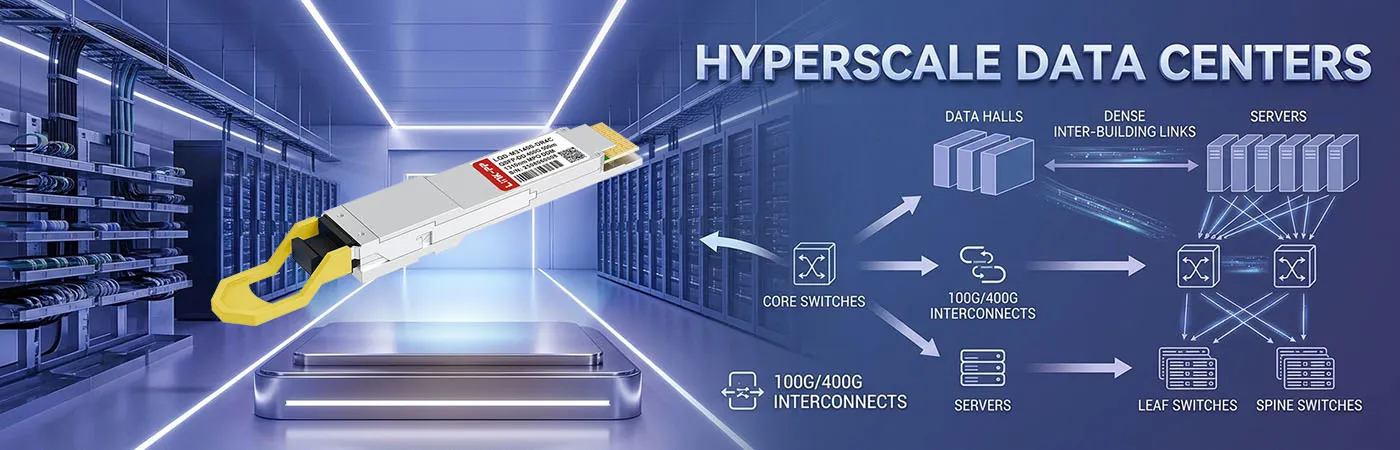

QDD-400G-DR4-S: 400G Connectivity for Hyperscale Data Centers

Engineered to fulfill demanding high-bandwidth requirements , the QDD-400G-DR4-S delivers robust 400G connectivity. It serves as a reliable solution for hyperscale data center interconnects, enterprise networking, and intensive Infiniband computing environments.

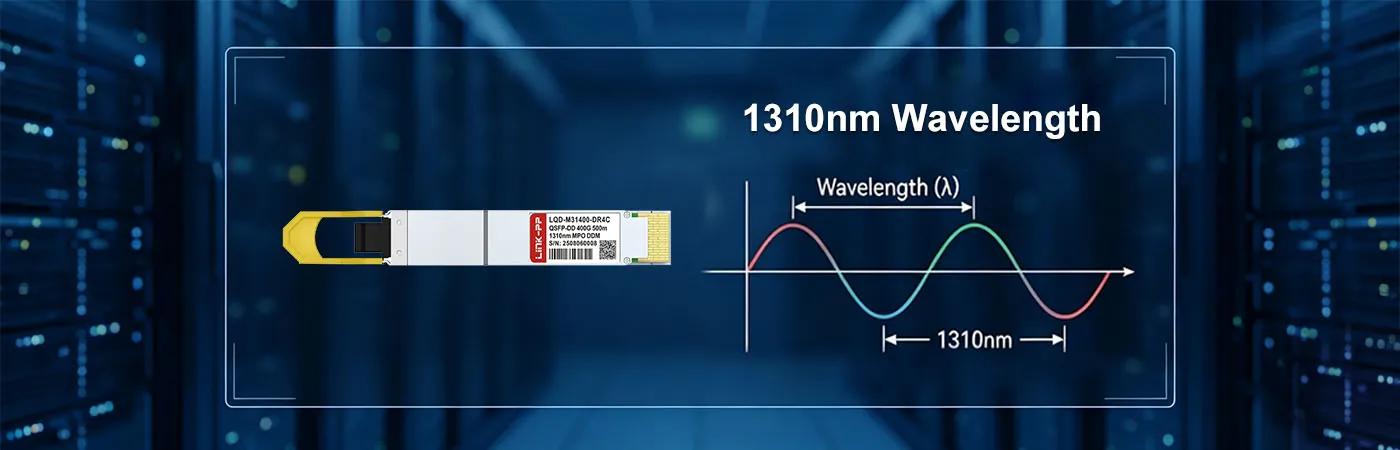

QDD-400G-DR4-S Module with 1310nm Wavelength

Operating across a reliable lane wavelength 1310nm , this module utilizes 1.3µm EML transmitters. It guarantees consistent dispersion performance and optimal channel alignment for critical optical links.

QDD-400G-DR4-S Module Supporting 500m Transmission

The QDD-400G-DR4-S module supports high-speed data transmission up to 500 meters over single-mode fiber with FEC. It provides an efficient and cost-effective reach for internal intra-datacenter connections.

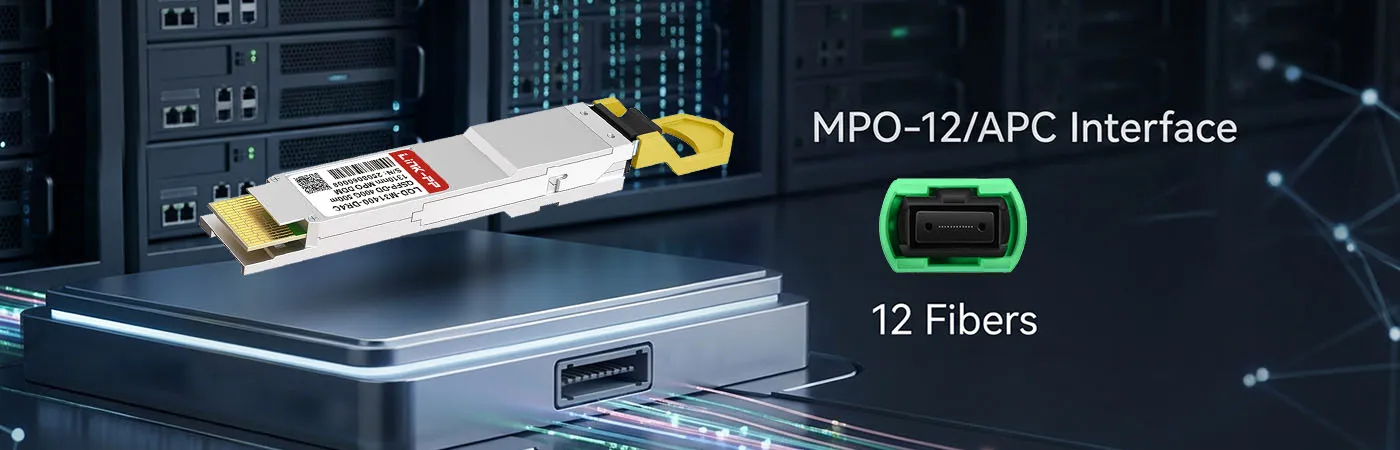

QDD-400G-DR4-S Module with MPO-12/APC Interface

Equipped with a standard industry-grade MPO-12 optical connector interface, the QDD-400G-DR4-S module simplifies high-density fiber cabling. It ensures reliable, low-insertion-loss mating with parallel single-mode fiber infrastructure patches.

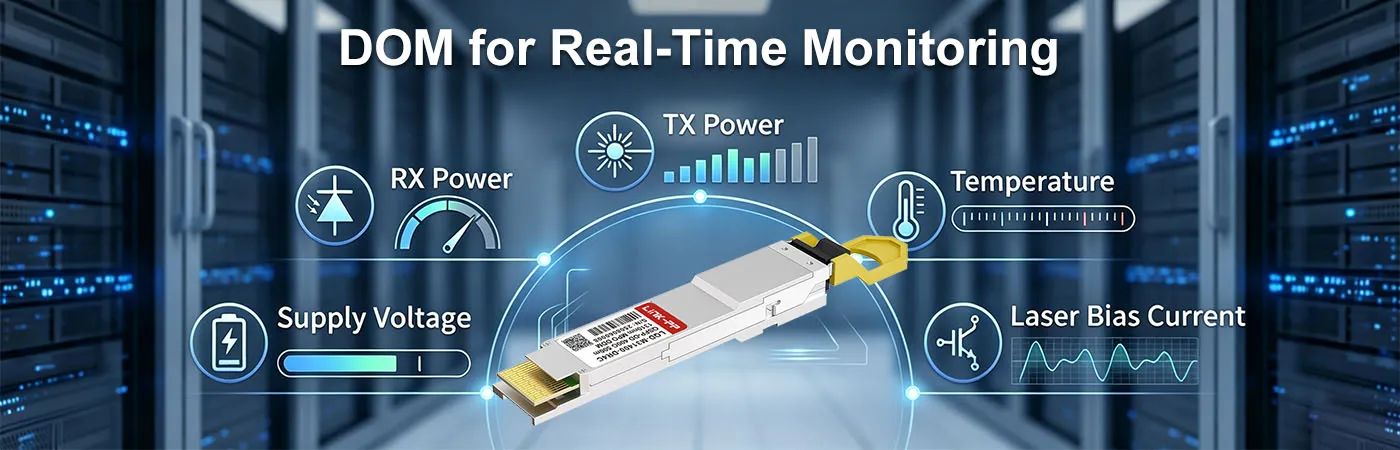

QDD-400G-DR4-S Module with DOM for Real-Time Monitoring

Featuring advanced digital diagnostic monitoring, the QDD-400G-DR4-S enables real-time tracking of critical operational parameters. Network operators can instantly check absolute transceiver temperature, supply voltage, laser bias current, and received optical power.


Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD Certification

Compatibility tested in the LINK-PP lab. View test report

The Cisco QDD-400G-DR4-S Compatible LINK-PP transceiver complies with stringent global quality standards. It strictly meets the RoHS environmental directive and conforms fully with international electro-optical specifications.

Optical Transceivers Testing

Every single module undergoes a rigorous, comprehensive multi-stage quality testing program. Hardware functionality and data integrity are thoroughly checked to guarantee defect-free product manufacturing before shipment.

QDD-400G-DR4-S Quality Certifications

Built under world-class production management protocols, the module achieves complete certification compliance. It satisfies all major regulatory benchmarks including IEEE 802.3bs and standard MSA system agreements.

QDD-400G-DR4-S Certified for Reliable Host-Device Compatibility

The 76-pin edge connector and CMIS4.0 software architecture are fully certified. This assures stable interface compatibility and seamless integration across diverse enterprise host hardware systems.


Rigorous Testing Ensures Reliable QSFP-DD Performance

Every QDD-400G-DR4-S transceiver is subjected to comprehensive technical evaluations. This process guarantees excellent optical performance and rock-solid reliability in harsh network environments.

Optical

Optical Spectrum Test

The optical spectrum test verifies that the 1.3µm EML laser stays precisely within 1290-1320nm.

Optical

Eye Pattern Test

The eye pattern test evaluates TDECQ and PAM4 vertical eye closure to ensure crisp signals.

Optical

Bit Error Rate Test

The module undergoes bit error rate testing to achieve perfect Post-FEC performance benchmarks.

Optical

Temperature Test

Thermal chambers validate consistent operational integrity across the entire 0 to 70°C range.


Product Shipping for Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD

We provide secure, efficient, and standardized shipping processes for every 400G transceiver order. Your high-speed network components are handled with professional logistical care.

Anti-Static Protective Packaging

Anti-Static Protective Packaging

Each module is sealed inside a customized anti-static protective ESD bag.

Shock-Resistant Transport Protection

Shock-Resistant Transport Protection

Multi-layered, shock-resistant foam cushioning prevents mechanical damage during global transit.

Fast Order Processing and Dispatch

Fast Order Processing and Dispatch

Our dedicated warehouse facility guarantees quick verification, secure processing, and rapid dispatch.

Global Logistics and International Delivery

Global Logistics and International Delivery

We utilize trusted international express couriers to deliver shipments reliably worldwide.

Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD Usage Demonstration

This demonstration outlines the straightforward installation of the QDD-400G-DR4-S transceiver. Align the module using its distinctive blue pull tab, insert it smoothly into a live 400G QSFP-DD host slot until it clicks securely, and connect your MPO-12 patch cable.

QDD-400G-DR4-S Technical Support

LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.

Pre-Sales Technical Consultation

Pre-Sales Technical Consultation

Professional technical guidance to help customers select the most suitable QDD-400G-DR4-S modules based on network architecture and application requirements.

Compatibility Verification Support

Compatibility Verification Support

Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.

Deployment & Installation Assistance

Deployment & Installation Assistance

Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.

Long-Term Technical Assurance

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.

Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15 days

15-day no-reason return and refund

Free maintenance or replacement

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free maintenance

 Free repair services for manufacturing defects throughout the warranty period

Limitations

Warranty exclusions and conditions apply

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LQD-M31400-DR4C.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 4.9

    29 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (29)
No data
C***n
Verified Purchase
4.0
2026-10-10
One star off because the page lists the power consumption and the lane architecture but never the receive window, so the budget has to be measured. Also worth noting for anyone ordering: the APC end will not mate with a UPC trunk. The link itself has been.
E***e
Norway
Verified Purchase
5.0
2026-08-15
MPO-12/APC, so check the polish on the trunk before you blame the optic. :)
L***d
Turkey
Verified Purchase
5.0
2026-07-17
Single 3.3V supply, 9.5W maximum consumption, which is what decides how many fit behind one fan wall.
E***n
United Kingdom
Verified Purchase
5.0
2026-06-19
The trunk catches people out. Twelve fibres carry four transmit and four receive lanes, so eight are used and four spare, and the spares are where the next service goes. Label the lane order before the first plug, because one swapped lane looks like a marginal module rather than a wiring error.
T***d
Indonesia
Verified Purchase
5.0
2026-05-22
Five hundred metres is the reach, and it is deliberately short because DR4 exists for row to row inside a hall rather than for campus links. Ours runs 180m, so the budget is not the constraint and the receive levels sit well above the floor. That is the right way round for a part like this: you pay for the lane count, not for distance you will never use.
