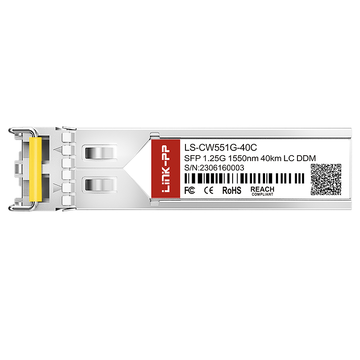

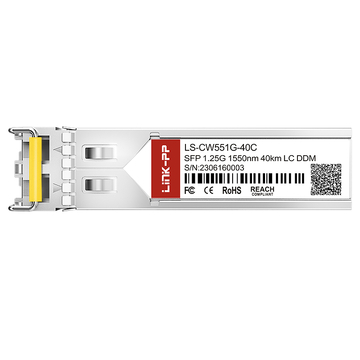

The LS-CW551G-40C is a 1G SFP CWDM optical module operating at 1550nm. It integrates a DFB laser and a PIN photodiode, supports data rates up to 1.25Gbps, and enables transmission over up to 40km on standard single-mode fiber. The module includes real-time digital optical monitoring and is specified for a standard operating temperature range of 0 to +70°C.

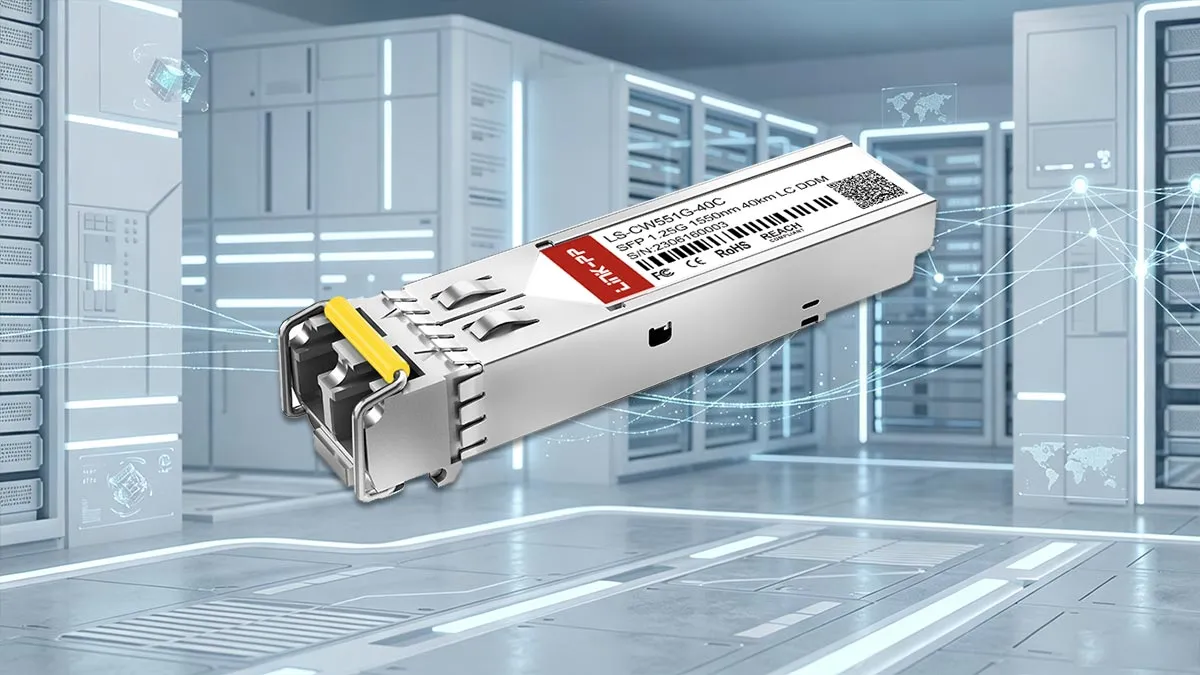

| LINK-PP Part Number | LS-CW551G-40C | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -5 to 0dBm | RX Power | -26 to -1dBm |
| Receiver Sensitivity | -24dBm | Receiver Overload | -1dBm |
| EMC (Electromagnetic Compatibility) | Supported | DDM/DOM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols | SFP MSA、SFF-8472 |

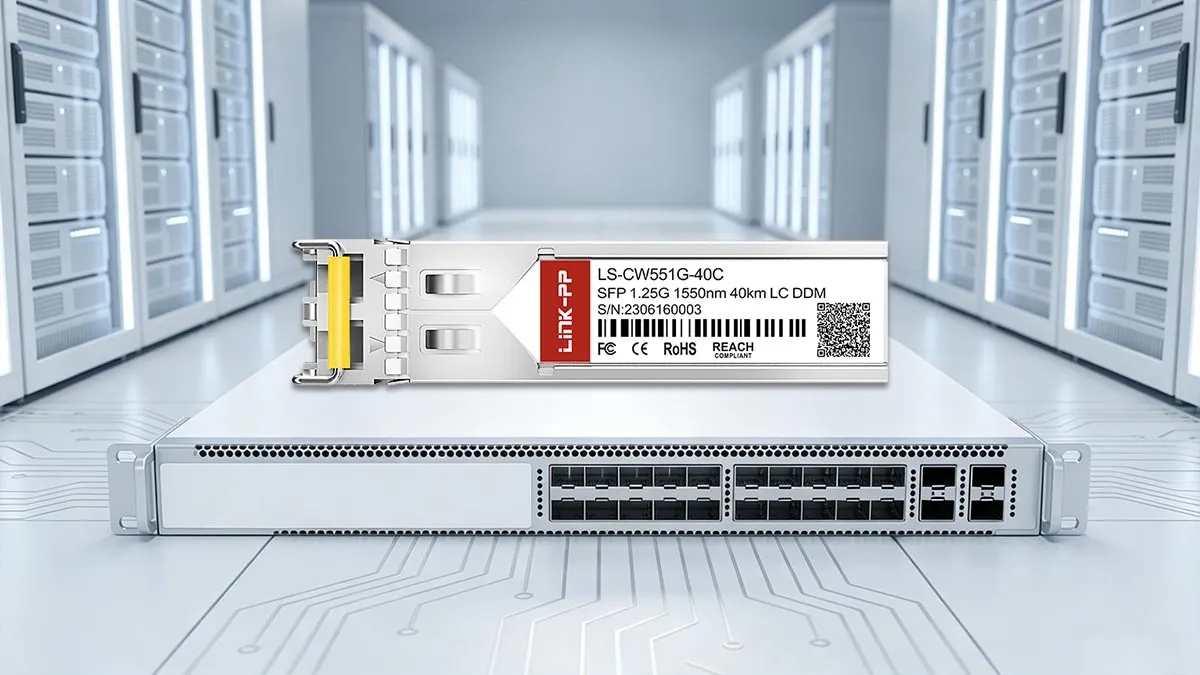

Operating at 1550nm with a 40km reach over single-mode fiber, the LINK-PP LS-CW551G-40C is offered as a 1G SFP CWDM module. A duplex LC connector, DOM compliant with SFF-8472, and a hot-pluggable MSA-compliant SFP footprint are included in its design. With an operational temperature range of 0 to +70 °C, the module is well suited for commercial-grade networking deployments.
Featuring a hot-pluggable SFP footprint, the module allows easy installation and replacement without system power-down. It is fully compliant with the SFP Multi-Source Agreement, ensuring compatibility with standard host ports and cages.
Providing a line rate of 1Gbps, this module is well suited for metro and regional access networks. It delivers cost-effective connectivity for medium-range links in city-wide or area-wide infrastructures.

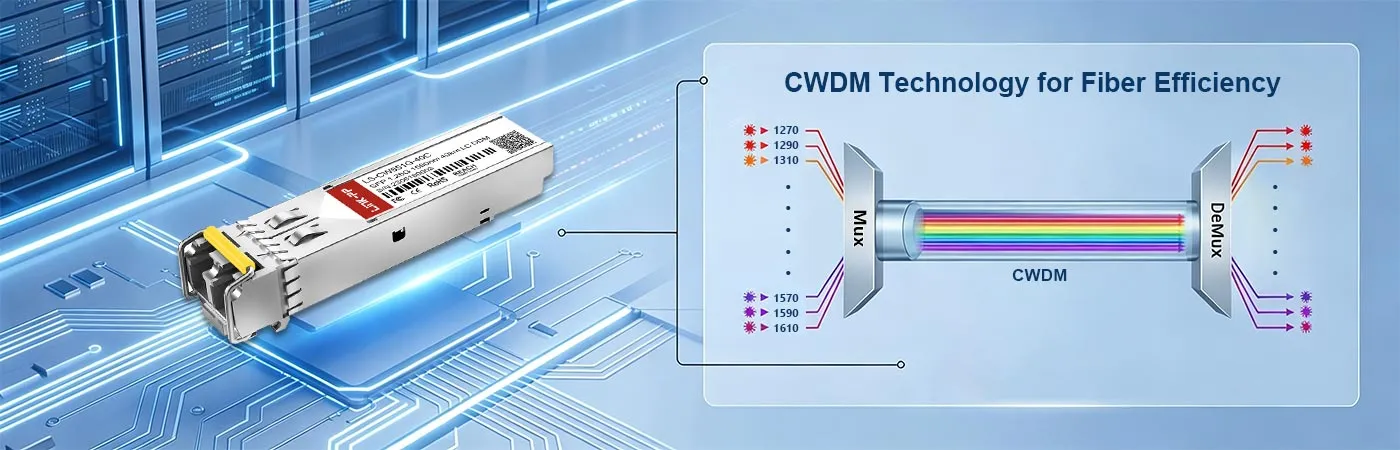

The CWDM technology integrated in the module enables multiple optical channels to coexist on one fiber, maximizing fiber utilization. It reduces the need for additional fiber strands, which is beneficial for network expansion and capacity upgrades.

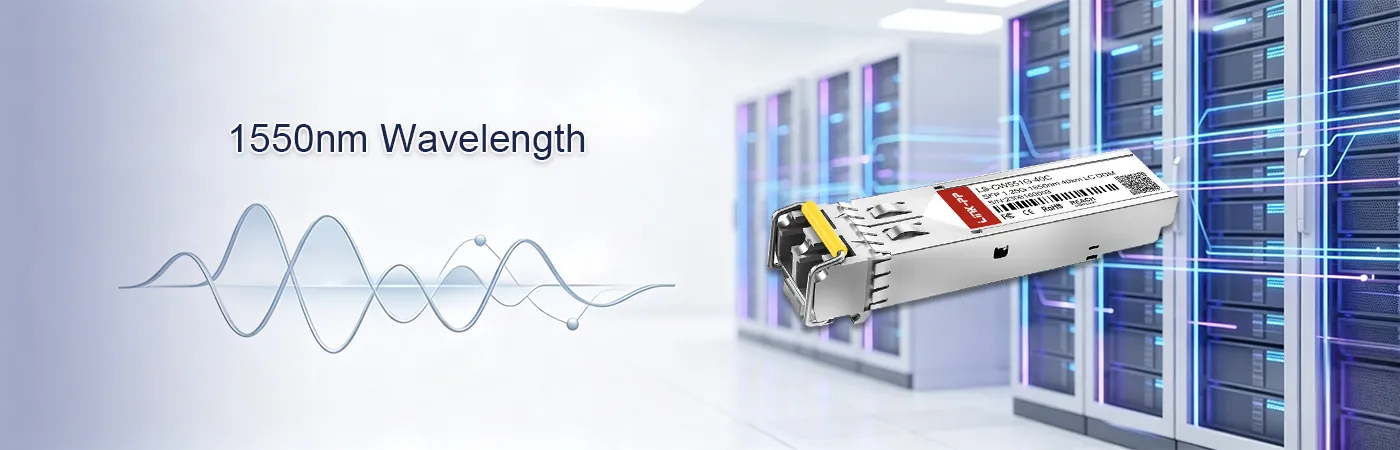

Operating at the 1550nm wavelength, this transceiver leverages the lowest attenuation window of single-mode fiber. The 1550nm channel is a standard CWDM grid point, providing stable and predictable optical performance.
Supporting distances of up to 40km, the transceiver is designed for extended-reach applications over single-mode fiber. It provides adequate optical power budget to maintain signal integrity over long spans without regeneration.

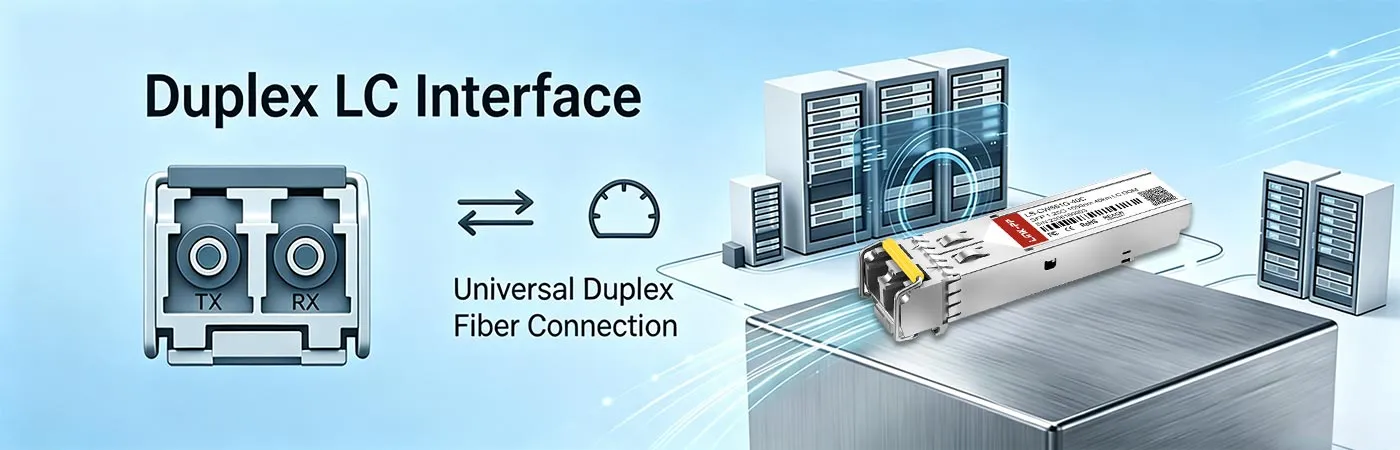

Equipped with a duplex LC interface, this SFP module ensures secure and polarized fiber connections. The LC connector is widely adopted in networking equipment, offering low insertion loss and easy mating.

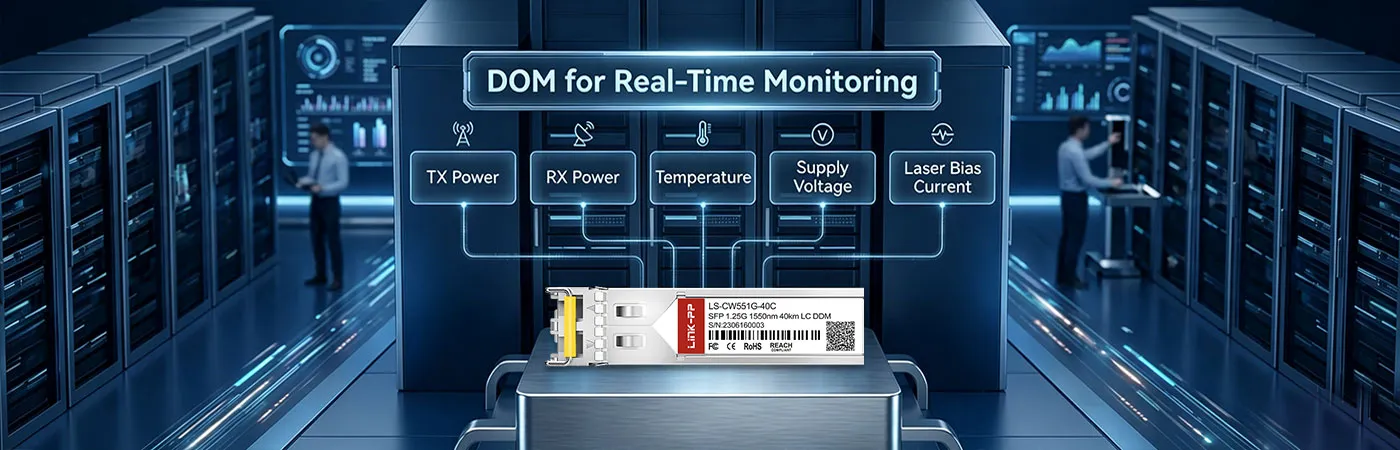

With built-in DOM functionality, the module offers real-time monitoring of parameters such as Tx/Rx power, bias current, and temperature. It is compatible with SFF-8472 digital diagnostics, allowing network administrators to proactively detect link degradation.
The LINK-PP LS-CW551G-40C 1G SFP optical transceiver complies with global manufacturing and safety standards. It maintains certified compliance under ISO 9001, CE, RoHS, and FCC frameworks.
Each module undergoes optical output and signal integrity verification before distribution. Hardware inspections confirm stable optical transmission and link continuity across standard temperature ranges.
Documented compliance verifies adherence to international environmental safety guidelines. These official approvals confirm that factory production aligns with standardized quality management controls.
The module completes full hardware recognition checks across various network platforms. Physical-layer validation ensures seamless plug-and-play operation with host equipment.
Comprehensive testing procedures verify signal accuracy and continuous optical output across actual networks. Explore our full validation methodology at the LINK-PP Test Support Center.
Analyze center wavelength precision to avoid channel interference across fiber links.
Inspect signal rise and fall times to guarantee clean transmission waveforms.
Check packet transfer accuracy to eliminate data loss during heavy traffic.
Validate hardware thermal limits to ensure dependable operation in tough environments.
Safe transit methods protect your modules throughout the entire fulfillment process. Dependable carrier options ensure your shipment arrives securely and on schedule.
Protect sensitive optical circuits from electrostatic discharge damage.
Safeguard optical modules against harsh drops and physical vibrations.
Fulfill pending customer orders rapidly to ensure short fulfillment lead times.
Ship transceiver orders globally through trusted international express carriers.

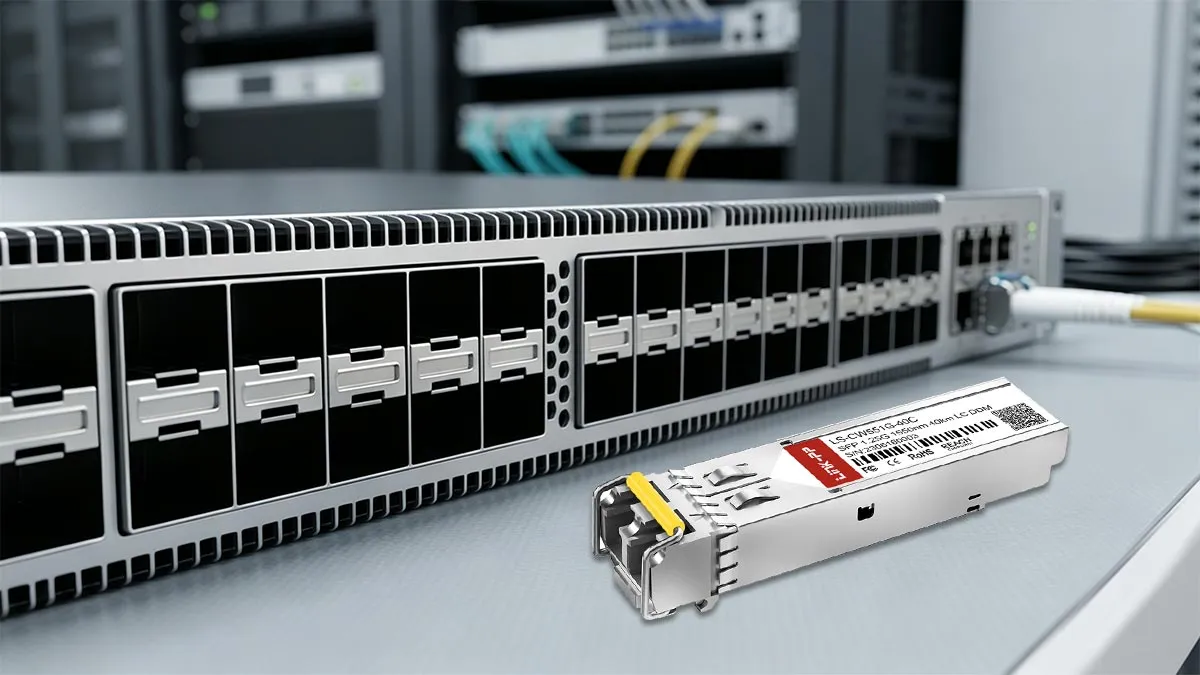

Align the LS-CW551G-40C CWDM SFP module with the optical slot and slide it in until firmly seated. Connect LC fiber cabling to activate the 1550nm channel. Designed for easy deployment, this module connects switches and routers across extended metro links and regional access networks.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-CW551G-40C module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-CW551G-80C
| ![]() LS-CW611G-40C
| ![]() LS-CW591G-40C
| ![]() LS-CW571G-40C
| ![]() LS-CW531G-40C
|
|---|
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1550nm | 1550nm | 1610nm | 1590nm | 1570nm | 1530nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 40km | 80km | 40km | 40km | 40km | 40km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -5 to 0dBm | -1 to +4dBm | -5 to 0dBm | -5 to 0dBm | -5 to 0dBm | -5 to 0dBm |
Receiver Sensitivity | -24dBm | -26dBm | -24dBm | -24dBm | -24dBm | -24dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Temperature | Commercial | Commercial | 0 to 70°C | Commercial | 0 to 70°C | Commercial |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | DFB | DFB CWDM | DFB | DFB | DFB | DFB |
Receiver Type | PIN | PIN | PIN | PIN | PIN | PIN |
Receiver Overload | -1dBm | -1dBm | -1dBm | -1dBm | -1dBm | -1dBm |
EMC (Electromagnetic Compatibility) | Supported | Supported | Supported | Supported | Supported | |
DDM/DOM Support | Yes | Yes | Yes | Yes | Yes | |
Protocols | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Can we hot-swap this 1550nm CWDM optic during live network maintenance without rebooting the switch? By L***e on 2026-04-13
A: Yes, the LS-CW551G-40C module features a standard hot-pluggable SFP footprint, so you can insert or remove it while the switch is powered on without interrupting other active ports. By admin on 2026-04-14
Q: We have a 30km point-to-point fiber run between two sites. Can the LS-CW551G-40C module handle this span reliably, or are we cutting it too close to the link margin? By F***n on 2026-02-20
A: In most standard deployments, yes. The module's 1550nm DFB laser and PIN receiver provide an optical power budget designed for up to 40km over standard single-mode fiber. However, because real-world links include patch panels, fiber splices, and potential MUX/DEMUX insertion loss, we always recommend calculating your total end-to-end dB loss to ensure adequate safety margin. By admin on 2026-02-21
Q: We are leasing a dark fiber pair between two data centers and need to multiplex multiple Gigabit links. Is the 1550nm wavelength on this 40km SFP stable enough to pass through passive multiplexing filters without crosstalk? By I***r on 2025-08-26
A: Yes. Its high-stability DFB laser is engineered to stay well within the typical 1550nm CWDM passband tolerance across the entire operating temperature range, ensuring minimal insertion loss and clean channel isolation across your passive multiplexer filters. By admin on 2025-08-27
