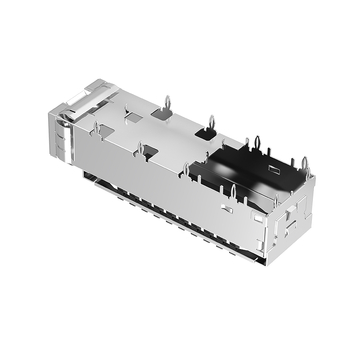

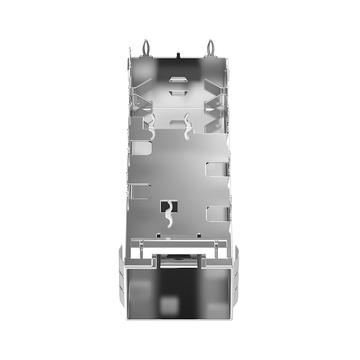

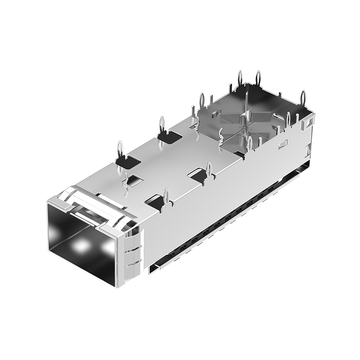

Molex 1111128121 Compatible LINK-PP LP11BC02030 SFP+ 1x1 Cage With Heat Sink EMI Spring Finger Press-Fit

Product summary

Product
Molex 1111128121 Compatible LINK-PP LP11BC02030 SFP+ 1x1 Cage With Heat Sink EMI Spring Finger Press-Fit
SKU
196939
P/N
LP11BC02030
Price
$ 2.19
Stock
2290 in Stock
Sold
1.7K
Unit price $ 2.19
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11BC02030SKU: 196939

Compatible with Molex 1111128121Datasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
1111128120
1111128121
Volume pricing Online tiers · larger qty or custom price on request
$ 2.190
1–99 pcs
$ 1.827
100–999 pcs
$ 1.686
1,000–4,999 pcs
$ 1.487
5,000–9,999 pcs
$ 1.409
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2290 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.19

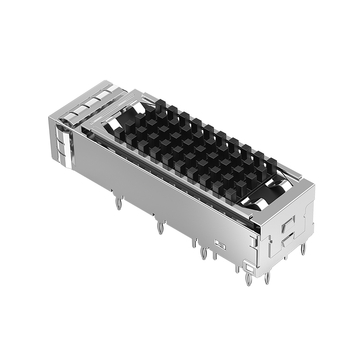

Molex 1111128121 Compatible LINK-PP LP11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

LINK-PP Part Number LP11BC02030 Molex Part Number 1111128121
Product Type Cage Form Factor SFP+
Cage COPPER ALLOY,Ni PL ATED PACKAGING TRAY PACKAGING
Port Matrix Configuration 1x1 Port Number of Ports 1
Operating Temperature Range -55 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe - Termination Press-Fit
Height (Inches/mm) 0.581/14.75 Length (Inches/mm) 1.941/49.30
Width (Inches/mm) 0.551/14.00 EMI Containment Feature Type
EMI Springs

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11BC02030.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Cold soak is where a plated hole and a compliant pin show whether they were matched, since the copper and the shell contract at different rates. We ran the first article through two cold cycles and then rechecked retention rather than only looking at the electrical result. The board finish matters too: a brittle surface treatment can crack around the barrel at that temperature. If the enclosure sees condensation on the way back up, allow a drying period before power is applied. by LINK-PP Technical Support
  • A:
    Nothing in this shell carries light forward, so the indicators have to live in the bezel or behind a window on the board itself. We chose two board mounted emitters and cut small holes in the faceplate, then printed the legend beside the single opening. Wiring them to PHY outputs rather than a spare GPIO keeps the behaviour consistent with the rest of the range. Decide this before the panel artwork is released; adding a window afterwards means new tooling. by LINK-PP Technical Support
  • A:
    The cage pins are pressed while the signal tails still go through a solder step, which means the sequence matters more than either process alone. We pressed the shell first on a supported fixture, then hand soldered the tails with a short dwell to avoid softening anything around the plastic body. A full reflow after the press would have put the housing through an unnecessary heat cycle. Record which station owns each operation on the traveller, because the two steps are easy to swap when the board is subcontracted. by LINK-PP Technical Support
  • A:
    Adding fins to a one bay shell changes the height above the board, so measure it with the intended transceiver actually plugged in. We laid a straight edge across the neighbouring components during the mechanical review and found the fan duct sat two millimetres too low. Raising the duct by that much gave the cap a clear path, and a lid that rests directly on the fins would only hold heat in. Read the seated height off the drawing and leave room for the plug boot. by LINK-PP Technical Support

Customer Reviews

  • 5

    44 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (44)
No data
E***t
Verified Purchase
5.0
2025-08-31
No light pipes on this part number at all. The module seated within spec.
R***u
Verified Purchase
5.0
2025-02-15
Checklist for the cage: 14.75 mm high, 14.00 mm across, 49.30 mm deep, press fit tails, and springs all round. LP11BC02030 met all five. It took the wave first try. ;)
S***y
Verified Purchase
4.0
2024-07-23
The first tray came with a bent lip, but the cages pressed square. Press fit tails took the stroke cleanly, and the heat sink cleared our rail. The packing held up through the trip.
K***e
Verified Purchase
5.0
2023-12-27
A single SFP+ cage with a heat sink on top. No surprises on the insertion force.
C***y
Verified Purchase
5.0
2023-04-20
Copper alloy shell, nickel plated. It sat within spec on the height.
