molex 747548420 compatible link-pp lp14bc01000 sfp+ 1x4 cage press-fit with emi spring finger
Click to open expanded view

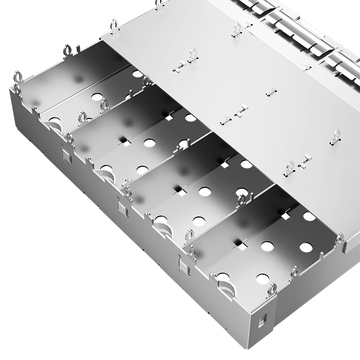

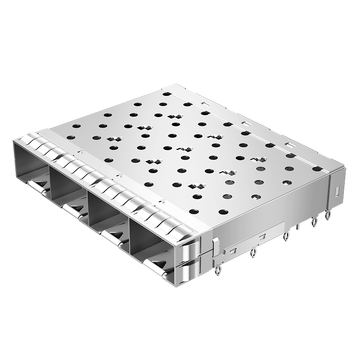

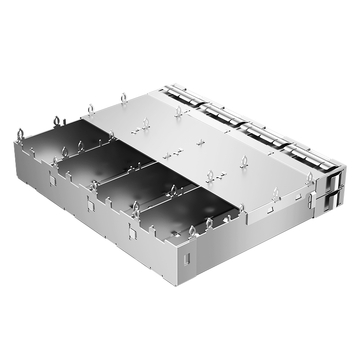

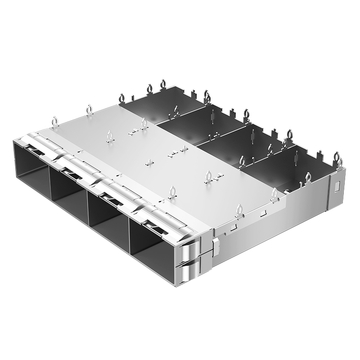

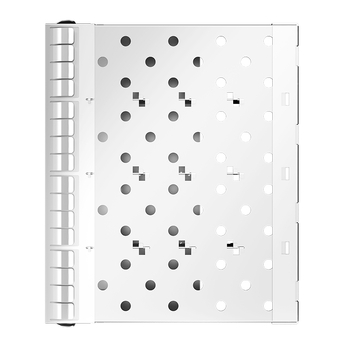

Molex 747548420 Compatible LINK-PP LP14BC01000 SFP+ 1x4 Cage Press-Fit With EMI Spring Finger

Product summary

Product
Molex 747548420 Compatible LINK-PP LP14BC01000 SFP+ 1x4 Cage Press-Fit With EMI Spring Finger
SKU
195641
P/N
LP14BC01000
Price
$ 2.39
Stock
1300 in Stock
Sold
5.7K
Unit price $ 2.39
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP14BC01000SKU: 195641

Compatible with Molex 747548420DatasheetAll downloads

Compatible P/N:
747547420
747548420
747548427
Volume pricing Online tiers · larger qty or custom price on request
$ 2.390
1–99 pcs
$ 1.990
100–999 pcs
$ 1.706
1,000–4,999 pcs
$ 1.620
5,000–9,999 pcs
$ 1.535
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.39

Molex 747548420 Compatible LINK-PP LP14BC01000 SFP+ 1X4 Cage With EMI Spring Finger

LINK-PP Part Number LP14BC01000 Molex Part Number 747548420
Product Type Cage Form Factor SFP+
Material Nickel Silver Thickness 0.25mm
Port Matrix Configuration 1x4 Port Number of Ports 4
Operating Temperature Range -55 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe - Termination Press-Fit
Height (Inches/mm) 0.352/8.95 Length (Inches/mm) 2.264/57.50
Width (Inches/mm) 1.919/48.75 Tail Length
-

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP14BC01000 REV A.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It works, but the card needs support during the press. A thin board deflects under the insertion force of four ports, and the deflection is what bends pins rather than the force itself. Back the board flat across the full 57.50mm, set pressing force on the first article, and check height at each end. Below about 1.0mm finished thickness, add a stiffener or press before the card is depanelised. by LINK-PP Technical Support
  • A:
    Through the management path. On a daughter card there is normally no faceplate to read, so link state goes back over the bus to whatever is managing the carrier, and the lamps on the cage itself are only used during bring-up. If you do need visible indication at the card edge, a board level guide from the LED pad works, but plan the clearance under the 8.95mm body for it at layout. by LINK-PP Technical Support
  • A:
    You can, and it is one of the reasons to choose a low profile cage. Keep the traces on the layer directly beneath the body, stitch ground either side of them, and avoid anything that needs a via under the cage because the drill and the press-fit pins compete for the same space. On our card two differential pairs ran under the frame without a measurable penalty at 10G. by LINK-PP Technical Support
  • A:
    The lower figure usually comes from the plating and the spring alloy rather than from the housing. A nickel underplate with a spring temper chosen for cold keeps its contact force below minus 40, where a cheaper finish can go brittle and lose pressure. Ask for the plating callout if your qualification needs to prove it, because the number on the page is a claim about materials and the drawing is where it is substantiated. by LINK-PP Technical Support

Customer Reviews

  • 5

    55 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (55)
No data
L***g
Belgium
Verified Purchase
5.0
2026-11-07
Press-fit keeps the cage out of reflow, which on a mezzanine matters more than on a main board. The daughter card is thinner, it goes through the oven once with everything else on it, and pressing afterwards means the frame is not fighting a warped board.
M***n
Verified Purchase
4.0
2026-10-10
Docking a star because the table lists minus 55 to plus 85 without saying what changes to earn the lower figure, and on a cage that is usually plating rather than geometry. Worth a line. The frame itself has been.
W***k
Malaysia
Verified Purchase
5.0
2026-08-13
What a 1x4 frame gives you that four singles do not is a single press cycle and a guaranteed height. On a daughter card with four ports and a stiffener behind them, four separate cages means four insertions and four chances for one to sit a few thou off. One frame means the whole row is set by one tool and one stroke.
T***t
Philippines
Verified Purchase
5.0
2026-07-15
Four ports is the right number for a mezzanine. Two is not enough to justify the connector, eight will not fit beside the power stages, and four leaves room for the management header and the mounting holes.
H***g
Norway
Verified Purchase
5.0
2026-06-17
The minus 55 rating is unusual for an SFP+ cage and worth asking about rather than assuming it means the same package as a minus 40 part.
