te 1-2007538-7 compatible link-pp lp21bc01301 sfp+ 2x1 cage&connector with outer light pipe emi spring finger

TE 1-2007538-7 Compatible LINK-PP LP21BC01301 SFP+ 2x1 Cage&Connector With Outer Light Pipe EMI Spring Finger

Product summary

Product
TE 1-2007538-7 Compatible LINK-PP LP21BC01301 SFP+ 2x1 Cage&Connector With Outer Light Pipe EMI Spring Finger
SKU
181182
P/N
LP21BC01301
Price
$ 3.72
Stock
100 in Stock
Sold
1.2K
Unit price $ 3.72
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21BC01301SKU: 181182

Compatible with TE 1-2007538-7Datasheet3D ModelAll downloads

Compatible:
TE
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 3.720
1–99 pcs
$ 3.100
100–999 pcs
$ 2.862
1,000–4,999 pcs
$ 2.561
5,000–9,999 pcs
$ 2.391
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.72

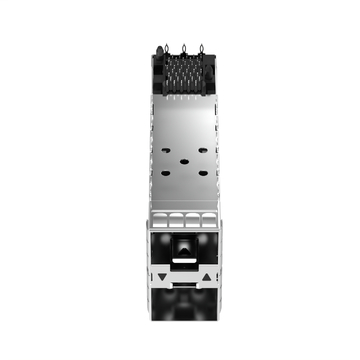

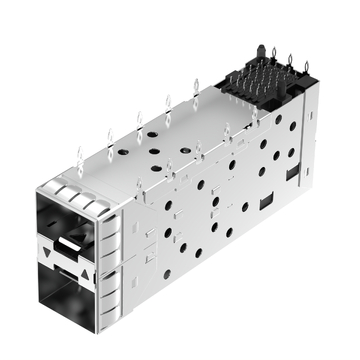

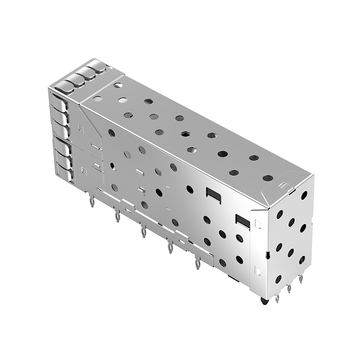

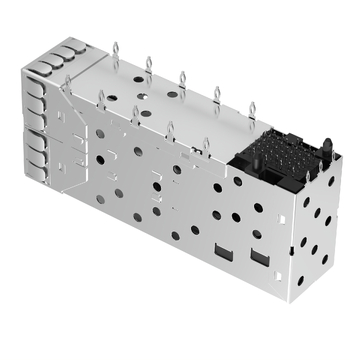

TE 1-2007538-7 Compatible LINK-PP LP21BC01301 SFP+ 2x1 Port Cage Connector With Outer LightPipe

Link-pp Part Number LP21BC01301 TE Part Number 1-2007538-7
Product Type Receptacle with Cage, Ganged (2x1) Form Factor SFP+
Data Rate (Max)(Gb/s) - Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 2x1 Ports Number of Ports 2
Operating Temperature Range -40 – 85°C Pluggable I/O Applications SFP+
Circuit Application Signal EMI Containment Feature Type External Springs
Included Lightpipe With Outer LightPipe Cage Material COPPER ALL OY 30u”
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 0.551/14.00
Height (Inches/mm) 1.005/25.53 PCB Thickness (Recommended) 2.36MM( .093 INCH)

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21BC01301-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A press fit shell is not a drop in replacement once it has been seated, because the plated holes are work hardened by the first insertion and pulling the part out can tear the barrel. If a cage is tilted or a tail is folded, plan for a new board rather than a second stroke in the same holes. Keep one spare assembly on the line for that case, and check the seating height at both ends of the strip before the board moves to the next station. by LINK-PP Technical Support
  • A:
    Press fit tails have to protrude far enough past the far side of the board to be inspected, but not so far that they foul a neighbouring part or the enclosure floor. Use the board thickness from the stack up and the tail figure in the mechanical drawing, then cross check the finished bore against the vendor sheet. A tail that folds during the stroke is easy to miss from above, so turn the assembly over and look along both rows before fitting any heatsink. by LINK-PP Technical Support
  • A:
    A single row of two openings is wider than one bay but much shorter than a stacked block, so it suits a shallow enclosure where height is tight. Leave a thumb width above the sockets for the latch and for a patch lead to turn out of the tray, and keep the label area clear on both ends of the strip. Check the tab travel against the bezel thickness with a printed template before the metal is cut, then trial fit a cable with its boot attached. by LINK-PP Technical Support
  • A:
    The moulded guides sit on the outer side of the two bay strip, which is where a front facing indicator can be seen without adding a second lamp row behind the board. Inner positions are left to the host software or a panel label, so the footprint needs fewer emitters than a fully guided block. Place the lamps on the pitch given in the drawing and check the brightness with the bezel closed, since a guide that starts flush with the panel will look dim. by LINK-PP Technical Support

Customer Reviews

  • 5

    49 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (49)
No data
B***a
Verified Purchase
5.0
2026-11-14
Two modules in one opening saved a second cutout on our plate. The ganged frame puts the light pipe where the crew can read it. It sat within spec on the press force. :)
B***y
Verified Purchase
4.0
2026-06-15
Two trays came with the ducts bent and 2 springs out of line, but every cage pressed square. Both mouths took a module and held. We ordered more once the tray was checked.
D***r
Verified Purchase
5.0
2025-11-13
Our line card needed the wide temperature range, and the frame held its shape through the burn in. Both mouths seated a module with no play. 220 frames out. Both ends linked as described.
H***d
Verified Purchase
5.0
2025-07-11
Springs run the full mouth and they hold well. The second order matched the first on the meter.
