te 6368511-3 compatible lpjg27093aenl 1000 base-t rj45 2x2 port magnetic jacks green yellow leds
Click to open expanded view

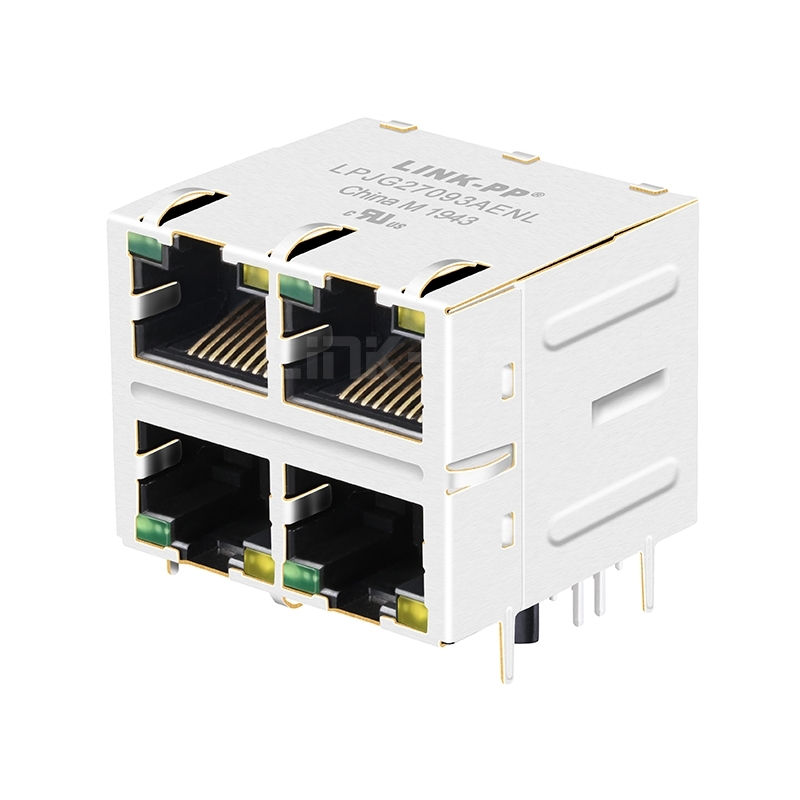

TE 6368511-3 Compatible LPJG27093AENL 1000 Base-T RJ45 2x2 Port magnetic jacks Green/Yellow Leds

Product summary

Product
TE 6368511-3 Compatible LPJG27093AENL 1000 Base-T RJ45 2x2 Port magnetic jacks Green/Yellow Leds
SKU
178560
P/N
LPJG27093AENL
Price
$ 13.71
Stock
2900 in Stock
Sold
17.1K
Unit price $ 13.71
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG27093AENLSKU: 178560

Compatible with TE 6368511-3DatasheetAll downloads

Compatible:
TE
LINK-PP
Compatible P/N:
1-6368511-3
6368511-3
Volume pricing Online tiers · larger qty or custom price on request
$ 13.710
1–99 pcs
$ 11.383
100–599 pcs
$ 9.737
600–1,199 pcs
$ 8.640
1,200–5,999 pcs
$ 7.680
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 18
Total Price:
$ 13.71
Packaging Details
18 pcs
324 pcs
Tray
37×30×30 cm
0.034 kg
11 kg

TE 6368511-3 Compatible LINK-PP LPJG27093AENL 1000 Base-T RJ45 2x2 Port magnetic jacks Green/Yellow Leds

The LPJG27093AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal , Webcams and Hard Disk Players.


LINK-PP Part Number
LPJG27093AENL TE Part Number
6368511-3
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x2 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.000/25.40Package Length (Inches/mm)

1.117/28.37

Package Width (Inches/mm)
1.230/31.24
Temperature
0℃ TO +70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG27093AENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    One opening is simpler to punch and to seal, but the web between windows is what keeps the mouths aligned, so a large hole lets the bezel bow and pinch a port. We use a single cutout with a tight tolerance and let the body face define the four mouths, then gauge each one after the panel is bolted down. by LINK-PP Technical Support
  • A:
    You plan it before placing the part. Each opening needs four matched pairs, its own return, and a gap to the next channel, and the inner ports have the worst access. We fan the pairs out in two directions rather than all to one side, and hold the reference plane continuous under the whole body. by LINK-PP Technical Support
  • A:
    Fix the order before layout: pin one corner, run across, then up, and print the same order on the silk and the bezel. A square body is the easiest shape to get wrong, because the board can be rotated and every row still looks plausible. We bring up one opening at a time and tick the map off on paper. by LINK-PP Technical Support

Customer Reviews

  • 5

    35 Reviews

  • 5 Stars
    100%
    4 Stars
    0%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (35)
No data
T***g
Verified Purchase
5.0
2026-11-15
2x2, four ports, gigabit. Both rows negotiated as described.
N***r
Verified Purchase
5.0
2026-05-22
This 2x2 replaced four single jacks on a switch face and cut the kit list to one part number. All four mouths share a can with tabs down both sides, so the plate reads low at each port. Eight cores per mouth are used at gigabit. 5 switches built. No surprises on the turns ratio.
Y***d
Verified Purchase
5.0
2025-12-24
Both rows latch, so cables can enter from either side. The clip held up through the pull test.
A***m
Verified Purchase
5.0
2024-12-06
25.40 mm of height and 31.24 mm across fitted our 32 mm opening. Latch both rows holds a plug either way up. Six units. The pitch was within spec against the old part. =)
