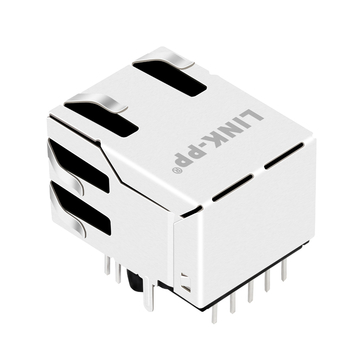

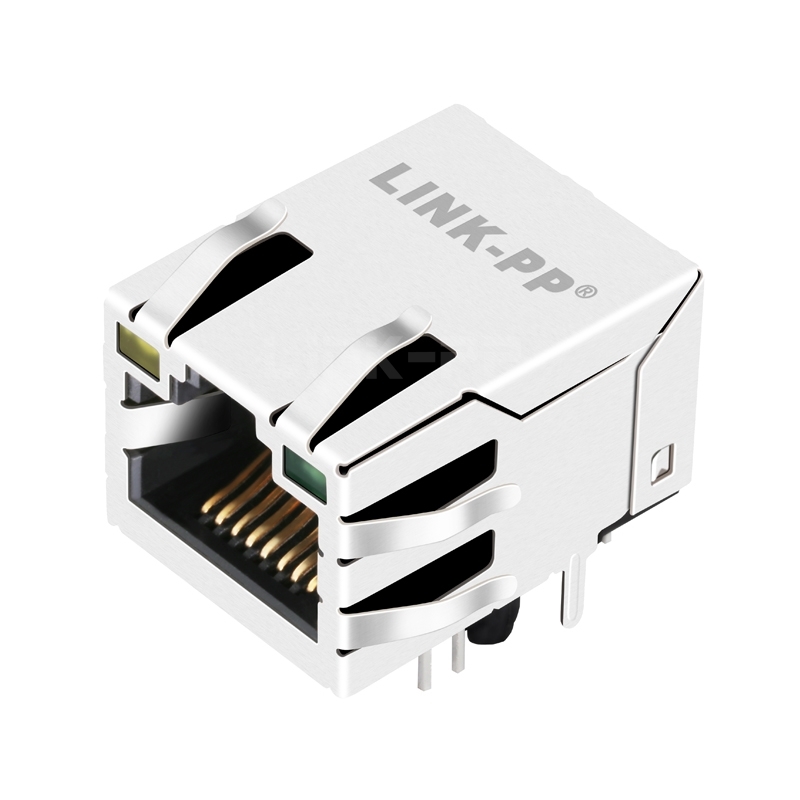

LPJ161284ADNLV 10/100 Base-T Single Port RJ45 Ethernet Pcb Connector For PoE Application Tab Up Yellow/Green Led

Name: LPJ161284ADNLV 10/100 Base-T Single Port RJ45 Ethernet Pcb Connector For PoE Application Tab Up Yellow/Green Led
Brand: LINK-PP
SKU: 178255
Price: 2.65 USD
Availability: InStock
Rating: 5 (18 reviews)

Product: LPJ161284ADNLV 10/100 Base-T Single Port RJ45 Ethernet Pcb Connector For PoE Application Tab Up Yellow/Green Led
SKU: 178255
P/N: LPJ161284ADNLV
Price: $ 2.65
Stock: 2610 in Stock
Sold: 7.4K
Product URL: https://www.l-p.com/products/474019.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

18 Reviews

0 Questions

7.4K Sold

$ 2.65

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 2.646

100

$ 2.170

600

$ 1.906

1200

$ 1.456

6000

$ 1.244

Manufacture: LINK-PP P/N: LPJ161284ADNLV SKU: 178255

Compatible:: LINK-PP

Compatible P/N:: LPJ161284ADNLV

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

2610 in Stock .

Quantity:

Total Price:

$ 2.65

Packaging Details:

N.W/pcs: 0.007kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W/carton: 8.5kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJ161284ADNLV 10/100 Base-T RJ45 Ethernet Pcb Connector (POE, Rectifier Diode,Single Port, Tab Up, Yellow/Green Led)

The LPJ161284ADNLV supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number	LPJ161284ADNLV	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	UP	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.530/13.45	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches)	0.628/15.95	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	Rectifier Diode	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Ethernet Pcb Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJ161284ADNLV.pdf Download
