LPJ4014CNL 10 100 base-t rj45 magjack tab down without led

LPJ4014CNL 10/100 Base-T RJ45 Magjack Tab Down Without LED

Product summary

Product
LPJ4014CNL 10/100 Base-T RJ45 Magjack Tab Down Without LED
SKU
177999
P/N
LPJ4014CNL
Price
$ 2.21
Stock
687 in Stock
Sold
10K
Unit price $ 2.21
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ4014CNLSKU: 177999

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ4014CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.210
1–99 pcs
$ 1.811
100–599 pcs
$ 1.590
600–1,199 pcs
$ 1.214
1,200–5,999 pcs
$ 1.038
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
687 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.21
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

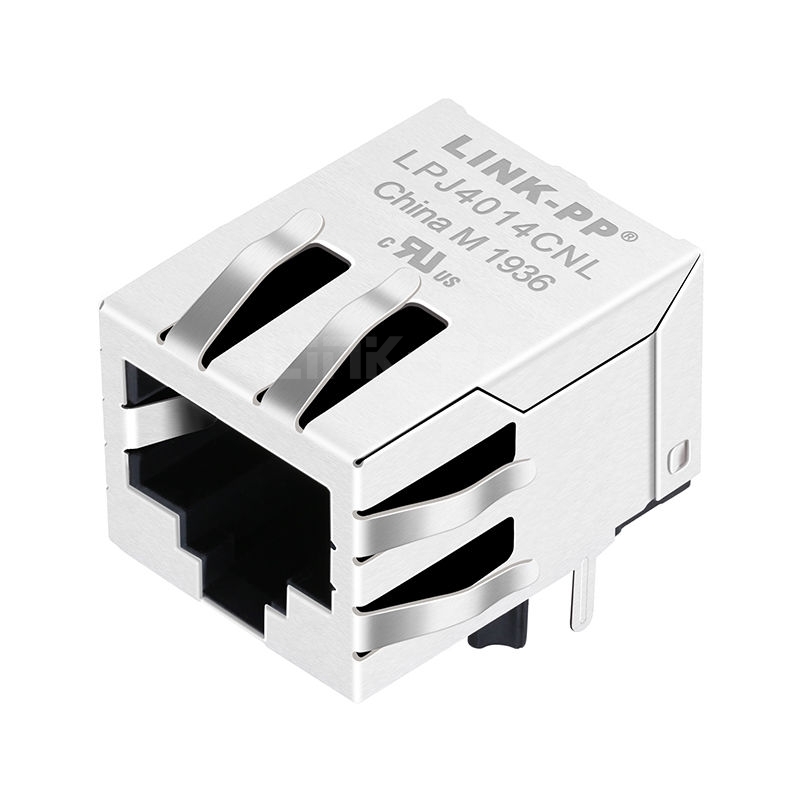

LINK-PP LPJ4014CNL 10/100 Base-T RJ45 Ethernet Magjack for Network Firewall and New Energy (Single Port, Tab Down, Without Led)

The LPJ4014CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Set-top Box and Intercom.

LINK-PP Part Number LPJ4014CNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Without

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

-40 TO +85℃

Bst Circuit YES AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ4014CNL Drawing LPJ4014CNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The LPJ4014CNL latch faces Down for a lower exit, on the case, with this rig. That suits a board under a flat panel, near this case, at a span. That call sits with the ordering team, in that cover, under our file. by LINK-PP Technical Support
  • A:
    LPJ4014CNL is a 10/100 magjack in one port, near the harness, on the build. It fits a plain Ethernet drop, near that spec, near a sheet, at the jig. The release lead closes the print, via the height, around our plan. by LINK-PP Technical Support
  • A:
    No lamp sits on the LPJ4014CNL face, at this gauge, on our size. Link state comes from the PHY, in this note, for a cover, across that page. The assembler checks the side, around that reel, at a grade, at this lot. by LINK-PP Technical Support
  • A:
    EMI tabs are formed on the LPJ4014CNL front shell, via a tray, across that bench. A short ground return completes it, in that rig, around this span, in the file. Your RFQ should state the rate, for our chart, via our cover. by LINK-PP Technical Support
