LPJG17664A92NL 1000 base-t rj45 2x1 magnetic jacks with transformer g g&y leds
Click to open expanded view

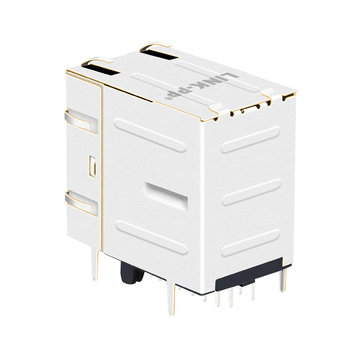

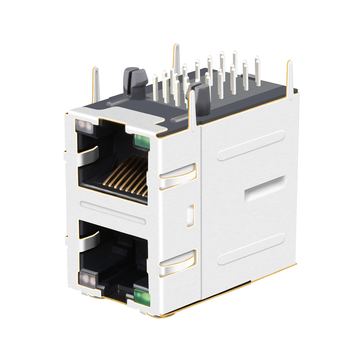

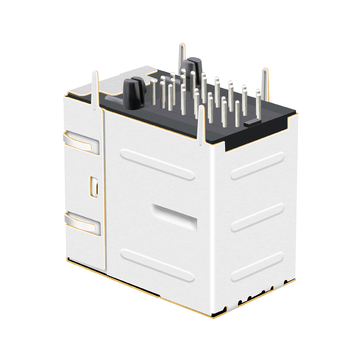

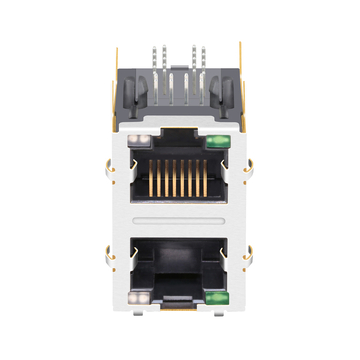

LPJG17664A92NL 1000 Base-T RJ45 2x1 Magnetic jacks With transformer G/G&Y Leds

Product summary

Product
LPJG17664A92NL 1000 Base-T RJ45 2x1 Magnetic jacks With transformer G/G&Y Leds
SKU
177971
P/N
LPJG17664A92NL
Price
$ 8.87
Stock
10 in Stock
Sold
10K
Unit price $ 8.87
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG17664A92NLSKU: 177971

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJG17664A92NL
Volume pricing Online tiers · larger qty or custom price on request
$ 8.870
1–99 pcs
$ 7.272
100–599 pcs
$ 6.385
600–1,199 pcs
$ 4.877
1,200–5,999 pcs
$ 4.168
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
10 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 8.87
Packaging Details
30 pcs
540 pcs
Tray
37×30×30 cm
0.02 kg
10.8 kg

LINK-PP LPJG17664A92NL 1000 Base-T RJ45 2x1 magnetic jacks With transformer Green/Green&Yellow Leds


LINK-PP Part Number
LPJG17664A92NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x1 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green&Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.996/25.29Package Length (Inches/mm)

1.118/28.40

Package Width (Inches/mm)
0.675/17.15
Temperature
-40℃ TO +85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG17664A92NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    That is how we wired it. The reader takes the upper mouth and the camera the lower one. Both run at 1000 Base-T with no retrain since install. One part number in the BOM keeps the spares simple. by LINK-PP Technical Support
  • A:
    It sits 25.29 mm tall, so leave that much behind the plate. Our duct starts 28 mm back and the plugs still go in. A right angle patch cord gave extra room on the lower row. Check your cord bend before you close the panel. by LINK-PP Technical Support
  • A:
    They are separate channels inside one shell. Losing one port leaves the other at 1000 Base-T. Our service port and the spare have never pulled each other down. Both rows carry the same green with yellow lamp pair. by LINK-PP Technical Support
  • A:
    Each row has its own latch, top and bottom. A patch cord in the lower row does not fight the upper one. Our fitter can pull either cable without rocking the other. That mattered on a door that swings open twice a shift. by LINK-PP Technical Support
  • A:
    We cycled 15 units from -40℃ to 85℃ with the link up. Every one came back at 1000 Base-T on the thaw. The shell is 25.29 mm tall and the tabs stayed bonded through the swing. Your defrost cycle may be harsher than our chamber. by LINK-PP Technical Support
  • A:
    The cabinet door only takes a 17.15 mm wide window. Two stacked mouths give us a service port and a spare. One part covers both, so the cutout stays small. Height is 25.29 mm, which our box had room for. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    21 Reviews

  • 5 Stars
    90%
    4 Stars
    10%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
E***t
Verified Purchase
4.0
2026-11-15
The tray came crushed at one end, but both mouths inside were untouched. Every port trained at gigabit on the firewall card. We ordered more once the box was checked.
U***t
Verified Purchase
5.0
2026-07-13
8 cores in every port, gigabit on both. No fuss on the hipot run.
P***s
Verified Purchase
5.0
2025-12-19
Both ports share one shielded can, which reads. The crimp held up on every contact.
E***d
Verified Purchase
5.0
2025-08-18
One window is plain green and the other green over yellow, so the two ports read apart. 8 cards built, every port linked at gigabit. Nothing to report. =)
P***n
Verified Purchase
5.0
2024-12-31
Twin mouths, 8 cores each. The ratio matched the drawing.
