LPJG17610A105NL 1000 base-t rj45 2x1 magnetic jacks with transformer g g&o leds
Click to open expanded view

LPJG17610A105NL 1000 Base-T RJ45 2x1 magnetic jacks With transformer G/G&O Leds

Product summary

Product
LPJG17610A105NL 1000 Base-T RJ45 2x1 magnetic jacks With transformer G/G&O Leds
SKU
177485
P/N
LPJG17610A105NL
Price
$ 8.87
Stock
2900 in Stock
Sold
7.1K
Unit price $ 8.87
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG17610A105NLSKU: 177485

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJG17610A105NL
Volume pricing Online tiers · larger qty or custom price on request
$ 8.870
1–99 pcs
$ 7.272
100–599 pcs
$ 6.385
600–1,199 pcs
$ 4.877
1,200–5,999 pcs
$ 4.168
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 8.87
Packaging Details
30 pcs
540 pcs
Tray
37×30×30 cm
0.02 kg
10.8 kg

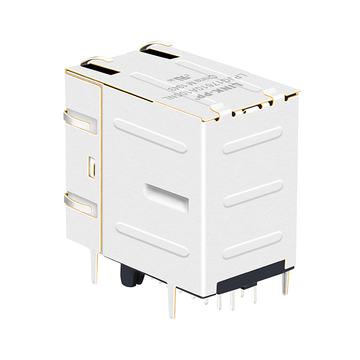

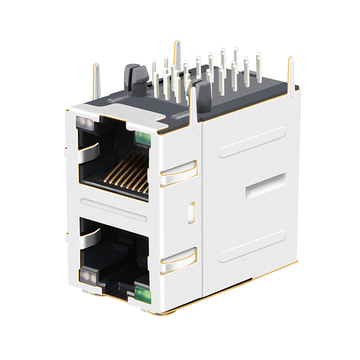

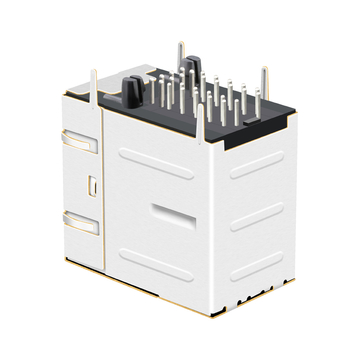

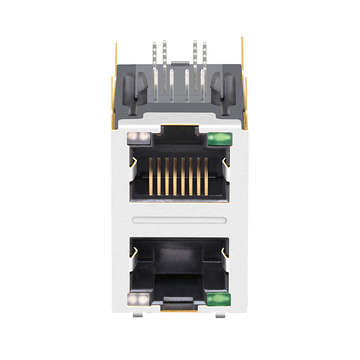

LINK-PP LPJG17610A105NL 1000 Base-T RJ45 2x1 magnetic jacks With transformer Green/Green&Orange Leds RoHS


LINK-PP Part Number
LPJG17610A105NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x1 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green&Orange

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.122/28.50

Package Width (Inches/mm)
0.678/17.21
Temperature
-40℃ TO +85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG17610A105NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Two lamps of different colour sit at each opening, so firmware has to define what each one means before the panel is cut. We made green a steady link and orange a blink on activity, and wrote that into the legend and the field guide. On an early board one led was fitted the wrong way round and stayed out until a live cable revealed it. Driving both from their own PHY lines lets the mapping stay in software across the range. by LINK-PP Technical Support
  • A:
    With both ports pushing full gigabit traffic, each one needs its own routing lane and its own reference plane, and we kept one port's traces clear of the other's body. On the test bench we ran both links at once and watched the counters for a long stretch under load. Noise between the two showed up first as a few errors on the quieter side, and separating the channels cleared it. by LINK-PP Technical Support
  • A:
    We settled the port order before the artwork was drawn, reading the top row first then the lower one so the silkscreen, the PHY map and the patch label all agree. A builder once wired a cable to the wrong port because the order was ambiguous, and that cost an afternoon. We now mark the break between rows with a small notch on the legend. Pin the convention down before the labels go to print. by LINK-PP Technical Support
  • A:
    Two ports share one long cutout, so the panel has to hold its flatness along the whole slot or the far opening rides high off the faceplate. We had the shop add a stiffening lip behind the opening and clamped the board across the strip while both plugs were seated, since the combined insertion force is far higher than a single port. Confirm the fit with both leads present, not one, and lock the cutout length before the tooling is cut. by LINK-PP Technical Support
