LPJ0034GDNL 10 100 base-t rj45 magjack tab down yellow green led
Click to open expanded view

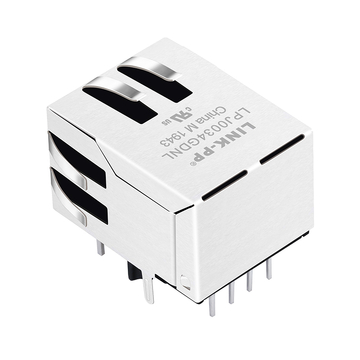

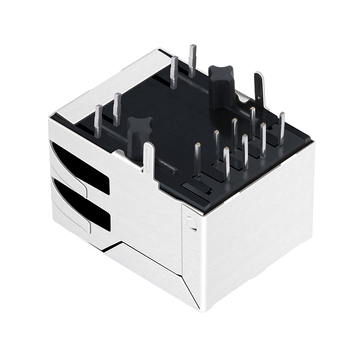

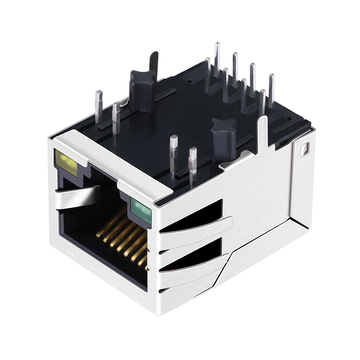

LPJ0034GDNL 10/100 Base-T RJ45 Magjack Tab Down Yellow/Green LED

Product summary

Product
LPJ0034GDNL 10/100 Base-T RJ45 Magjack Tab Down Yellow/Green LED
SKU
177467
P/N
LPJ0034GDNL
Price
$ 2.03
Stock
3490 in Stock
Sold
16.5K
Unit price $ 2.03
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ0034GDNLSKU: 177467

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJ0034GDNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.030
1–99 pcs
$ 1.663
100–599 pcs
$ 1.460
600–1,199 pcs
$ 1.115
1,200–5,999 pcs
$ 0.953
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3490 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.03
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LPJ0034GDNL Single Port RJ45 magjack connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED, Tab Down, RoHS

LINK-PP Part Number: LPJ0034GDNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Yellow/Green

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0034GDNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The gate sees about eighty plug cycles on a busy day. The contacts are gold plated and rated for far more than that. Two years on the barrier board show no wear at the mouth or the latch. by LINK-PP Technical Support
  • A:
    Across the face this part measures 15.93 mm, and it stands 13.30 mm off the card. Tails drop into the middle of the card and the lead turns once. We cut the same opening for sixty gate boxes over two winters. by LINK-PP Technical Support
  • A:
    This body carries its EMI tabs on the shield, so they press into the plate. That bond ties the shell to the chassis without a screw. On the older number we had to add a clip and a screw by hand. by LINK-PP Technical Support
  • A:

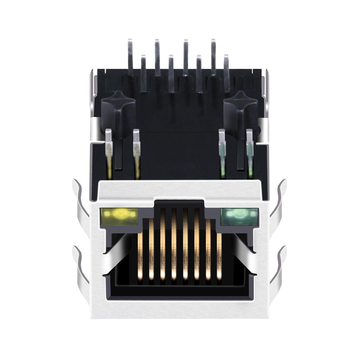

    Yellow sits on the left side and green sits on the right. We drive yellow from the link and let green follow activity. A guard at the barrier reads the two colours from outside without opening the housing. by LINK-PP Technical Support
  • A:
    The board hangs on the ceiling of the gate house and the lead drops from above. With the clip under the mouth the plug enters from below. The cable then falls straight into the tray without a bend. by LINK-PP Technical Support
  • A:
    The gate controller only pushes barrier state and a camera still image. Both fit inside a hundred megabit link with room to spare. A faster part would only have added cost with nothing gained on this gate board. by LINK-PP Technical Support

Customer Reviews

  • 5

    42 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (42)
No data
C***a
Verified Purchase
5.0
2026-11-15
FR4 housing takes the same conformal coat and the same cure, so nothing changed in the process. The jack came through the wash without a mark. The pin out matched the drawing line for line. =)
H***y
Verified Purchase
5.0
2026-08-16
LPJ0034GDNL, eight contacts. It dropped in with the same pin out.
E***u
Poland
Verified Purchase
5.0
2026-03-17
Eight contacts means four pairs and no spare positions, so the checklist is about pair assignment rather than extra legs. We buzz pin one through eight and mark the pairs on the drawing. The body is the same 15.93 mm as the ten contact parts, so the opening did not change. Good.
B***t
Verified Purchase
5.0
2025-12-07
15.93 mm wide, the old opening still works. The pitch was within spec against the old part.
Y***e
Verified Purchase
4.0
2025-07-22
First lot went out with a scuffed box, though every jack inside was fine. Eight contacts, tab down, and the latch felt like the ten contact parts. No change on the line.
