LPJ17634AENL 10 100 base-t 2x1 rj45 magjack green yellow led
Click to open expanded view

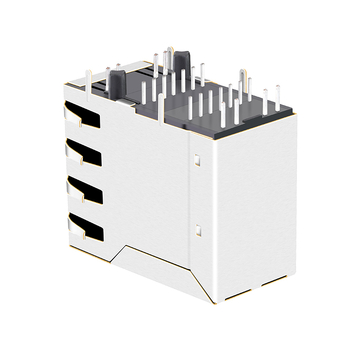

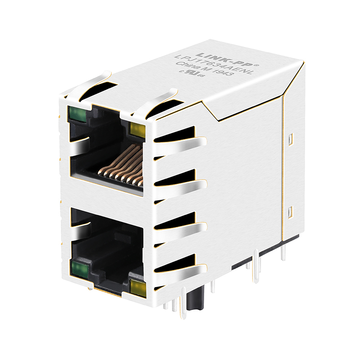

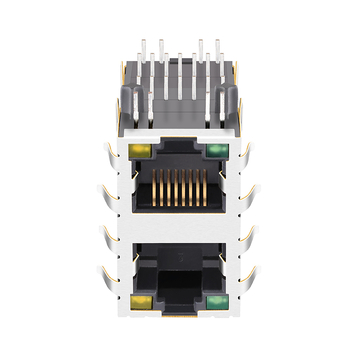

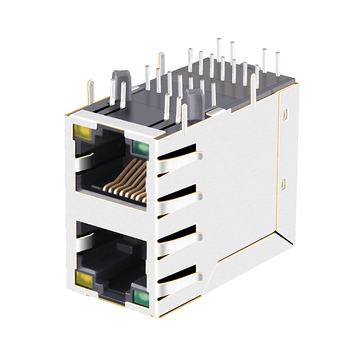

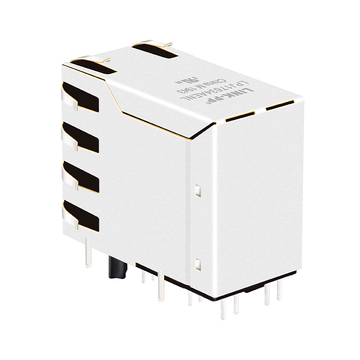

LPJ17634AENL 10/100 Base-T 2x1 RJ45 Magjack Green/Yellow LED

Product summary

Product
LPJ17634AENL 10/100 Base-T 2x1 RJ45 Magjack Green/Yellow LED
SKU
177422
P/N
LPJ17634AENL
Price
$ 8.82
Stock
4500 in Stock
Sold
5.6K
Unit price $ 8.82
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ17634AENLSKU: 177422

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJ17634AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 8.820
1–99 pcs
$ 7.231
100–599 pcs
$ 6.349
600–1,199 pcs
$ 4.850
1,200–5,999 pcs
$ 4.144
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 8.82
Packaging Details
40 pcs
640 pcs
Tray
37×30×30 cm
0.012 kg
7.5 kg

LINK-PP LPJ17634AENL 2X1 Port RJ45 magjack Connectors 10/100 Base-T Green/Yellow LED

LINK-PP Part Number: LPJ17634AENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 2X1 Port Speed 10/100 Base-T
Latch Both Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 1.059/26.90 Package Length (Inches/mm)

1.331/33.80

Package Width (Inches/mm) 0.661/16.80 Temperature -40℃ TO +85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ17634AENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No, colour is built in. Each lens holds a specific emitter, so a green over yellow part and a yellow over green part are different items with different build sheets, even though the shell is identical. Tell us the combination you want at order and we will hold it; asking a technician to rework the lamps afterwards usually ends in a damaged lens. by LINK-PP Technical Support
  • A:
    Measure from the top of the shell, add the plug and its boot, then add the bend radius the cord needs; that stack is usually taller than people expect on a double deck part. Leave the column above both mouths empty to the next card, and if a stiff riser is planned, mock it with a real cord before the chassis is released. by LINK-PP Technical Support
  • A:
    It can, because both mouths have their own latch window and the contacts line up either way. That suits a cabinet where cords arrive from above on one shelf and from below on the next, and it lets one part number serve both. Only one plug per mouth, of course, and the lamp colours stay with the deck, not with the entry side. by LINK-PP Technical Support

Customer Reviews

  • 5

    45 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (45)
No data
D***r
Verified Purchase
5.0
2026-11-15
26.90 mm is two ports tall, so the height check is really a stack check. The lower opening sits on the board line. The footprint dropped into the old pad row. =)
C***d
Verified Purchase
5.0
2026-07-09
The upper and lower latches open opposite ways, so two cables leave without crossing at the back. That is the whole point of a stack.
E***y
Verified Purchase
4.0
2026-03-08
Two of the six boxes came in dented at the corner, though the jacks were fine. Eight positions is all the board needs here, so nothing is left unused.
T***y
Verified Purchase
5.0
2025-11-22
FR4 body, same as the rest. No fuss seating it on the header.
K***y
Verified Purchase
5.0
2025-07-30
LPJ17634AENL, the stacked pair. No surprises on the contact order.
