LPJ0026EBNL 10 100 base-t rj45 connector with transformer 1x1 port green yellow led tab down
Click to open expanded view

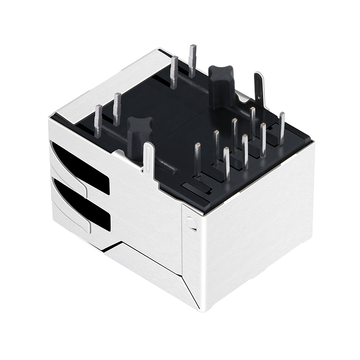

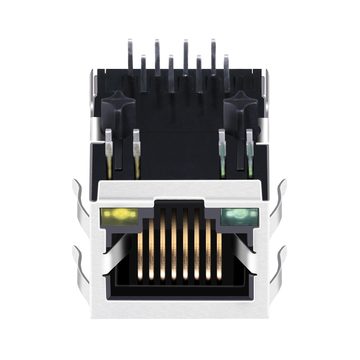

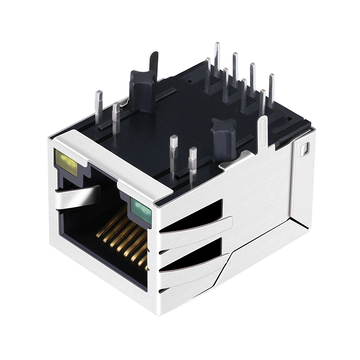

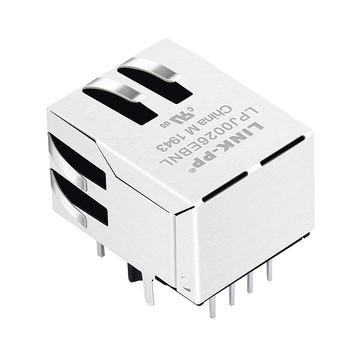

LPJ0026EBNL 10/100 Base-T rj45 connector with transformer 1x1 Port Green/Yellow Led Tab Down

Product summary

Product
LPJ0026EBNL 10/100 Base-T rj45 connector with transformer 1x1 Port Green/Yellow Led Tab Down
SKU
177360
P/N
LPJ0026EBNL
Price
$ 2.26
Stock
2950 in Stock
Sold
23.1K
Unit price $ 2.26
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0026EBNLSKU: 177360

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJ0026EBNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.260
1–99 pcs
$ 1.851
100–599 pcs
$ 1.625
600–1,199 pcs
$ 1.241
1,200–5,999 pcs
$ 1.061
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2950 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.26
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LINK-PP LPJ0026EBNL 10/100 Base-T rj45 connector with transformer for Server and Network Firewall (1x1 Port,Tab Down, Green/Yellow Led)


The LPJ0026EBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Server and Embedded Main Board.


LINK-PP Part Number:
LPJ0026EBNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0026EBNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The tab bites the cutout wall when the jack is pressed home. Our boxes are powder coated, so we mask 4 mm around the cutout. The bond measured 0.5 ohm. That saved a separate earth strap. by LINK-PP Technical Support
  • A:
    The shaft holds 18℃ to 32℃ through the year with the machine room venting. Our logger has stayed inside that band on all six cars. The rating covers it with margin to spare. No callout has been network related. by LINK-PP Technical Support
  • A:
    The car panel is 18 mm deep behind the stainless face. Our body runs 21.30 mm back, so the car uses the landing side. The landing box has 40 mm. That was in the original drawing. by LINK-PP Technical Support
  • A:
    The audio runs at 600 ohm and sits well below the data band. We screened the audio core to the shell at one end only. Our talkback has no hum. The lift engineer signed it off. by LINK-PP Technical Support
  • A:
    The fifth core carries the intercom audio back to the car unit. Data uses two pairs and the audio rides the spare core. Our cable has six cores total. One core stays unused for now. by LINK-PP Technical Support

Customer Reviews

  • 5

    43 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (43)
No data
Y***d
Verified Purchase
5.0
2026-11-15
Shield tabs lock into the cutout and the can does not shift when a cable is yanked sideways. The body matched the drawing on height. ;)
D***e
Verified Purchase
5.0
2026-06-13
Five cores. It has been in service since the pilot.
A***g
Verified Purchase
5.0
2025-12-11
Green over yellow shows the link the way we label it. The first batch came through without a bent pin.
S***t
Verified Purchase
4.0
2025-08-31
Our carton came late by 3 days, though the parts were packed well. This 10/100 jack pushed 100 megabit through 5 cores on the first try.
E***n
Verified Purchase
5.0
2024-12-17
LPJ0026EBNL matched the footprint drawing we had. The panel cut needed no filing, no fuss.
