Integrated RJ45 Connector
Low-Profile RJ45 Connector
1000 Base-T RJ45 Connector
179993

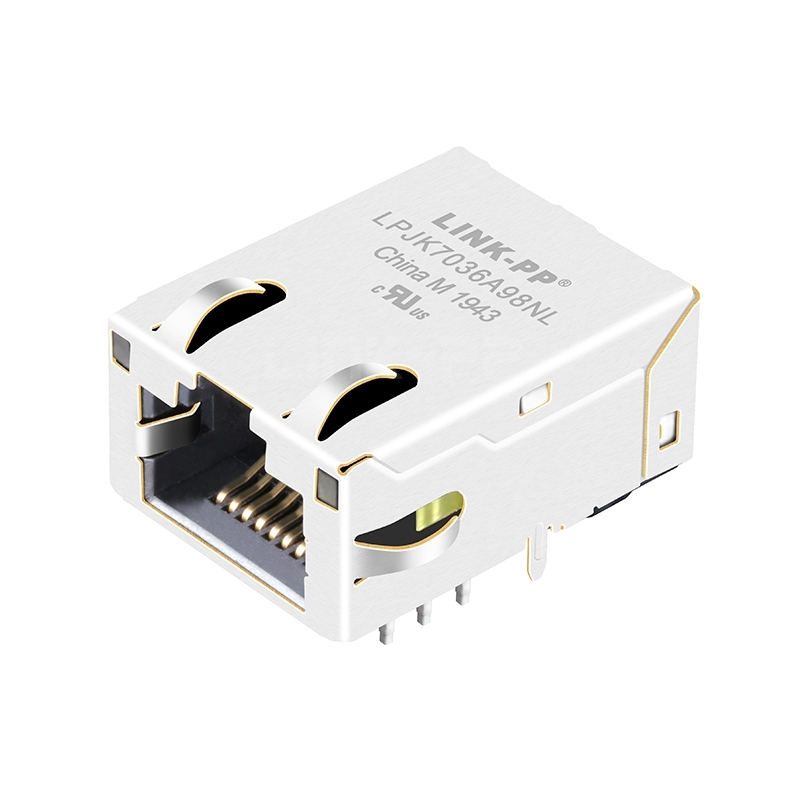

LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED
  • LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED thumb image 1
  • LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED thumb image 2
  • LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED thumb image 3
  • LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED thumb image 4
  • LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED thumb image 5

LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED

#179993
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics Tab Up Orange&Green/Yellow LED

  • $  4.056

    2900 in Stock

 29 Reviews
0 Questions
Request Stock
2.1K Sold
$  4.056
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 4.056
100
$ 3.326
600
$ 2.921
1200
$ 2.231
6000
$ 1.907
Manufacture: LINK-PP
P/N: LPJK7036A98NL
Compatible:
LINK-PP
BelFuse
Belfuse
Pulse
Competitor P/N:
LPJK7036A98NL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2900 in Stock .
Quantity:
Total Price:
$ 4.056
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
11.5kg
Add to wish

LINK-PP LPJK7036A98NL 1G Base-T RJ45 Low Profile Connector With Magnetics For Smart Camera ( Height 11.30mm,Orange&Green/Yellow LED,Tab Up)


The LPJK7036A98NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number
 LPJK7036A98NL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.953/24.20

Package Width (Inches/mm)
0.701/17.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. 1G Base-T RJ45 Low Profile Connector
