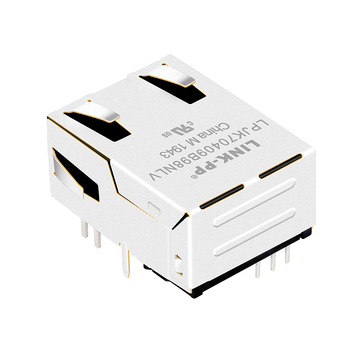

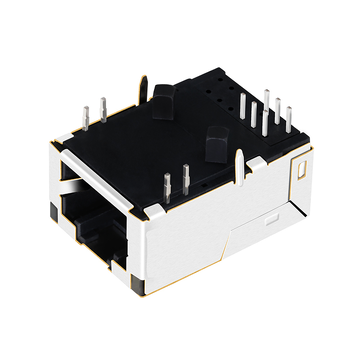

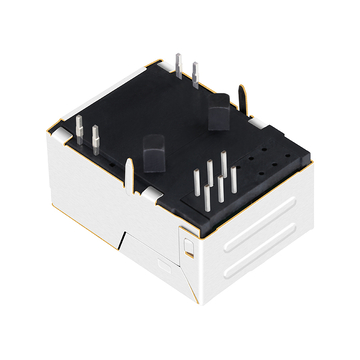

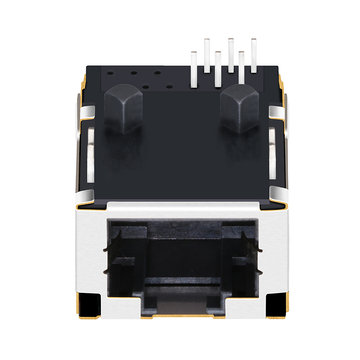

LPJK70409B98NLV 100 base-t rj45 mag jack low profile tab up orange&green yellow leds
Click to open expanded view

LPJK70409B98NLV 100 Base-T RJ45 Mag jack Low Profile Tab Up Orange&Green/Yellow Leds

Product summary

Product
LPJK70409B98NLV 100 Base-T RJ45 Mag jack Low Profile Tab Up Orange&Green/Yellow Leds
SKU
174166
P/N
LPJK70409B98NLV
Price
$ 4.07
Stock
2988 in Stock
Sold
49.8K
Unit price $ 4.07
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK70409B98NLVSKU: 174166

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJK70409B98NLV
Volume pricing Online tiers · larger qty or custom price on request
$ 4.070
1–99 pcs
$ 3.336
100–599 pcs
$ 2.929
600–1,199 pcs
$ 2.237
1,200–5,999 pcs
$ 1.912
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2988 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.07
Packaging Details
50 pcs
1200 pcs
Tray
40×32×33 cm
0.01 kg
12.3 kg

LINK-PP LPJK70409B98NLV 10/100 Base-T RJ45 Mag jack Low Profile For New Energy ( Height 11.30mm,Orange&Green/Yellow LED,Tab Up)


The LPJK70409B98NLV supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number:
LPJK70409B98NLV Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.957/24.30

Package Width (Inches/mm)
0.701/17.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK70409B98NLV.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A queue moves pages rather than streams, so 100 Base-T has been plenty on our bench. The counters stay clean through a full print run. Gigabit would not change the printed output at all here. by LINK-PP Technical Support
  • A:
    The fifth core carries a signal our module uses for a handshake with the tray sensor. Four cores alone would have left that signal out. Ours maps it on the spare pin, which works well. by LINK-PP Technical Support
  • A:
    A print module sits close to a motor. The shell keeps that link quiet. The low 11.30 mm height lets the board sit under the paper tray. Ours has run clean since the first build. by LINK-PP Technical Support

Customer Reviews

  • 5

    34 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (34)
No data
A***n
Verified Purchase
5.0
2026-11-14
17.80 mm across and 24.30 mm from face to board. It sat within spec on the height.
K***n
Verified Purchase
5.0
2026-02-22
The barrier controller had 12 mm of lid and this can fit. It is within spec against the old part.
G***o
Verified Purchase
5.0
2025-11-18
The tabs are still on the can even at this height, and they bit the post rim so the earth test passed. Every port trained first try. :)
C***n
Verified Purchase
5.0
2025-04-25
The first window reads orange over green, the second is yellow. The lamps matched the sheet on colour.
E***e
Verified Purchase
5.0
2024-10-05
11.30 mm tall with tabs on. It cleared the chassis wall as expected.
