LPJK7004SA98NL 10 100 base-t orange&green yellow led tab up low profile rj45 magjack

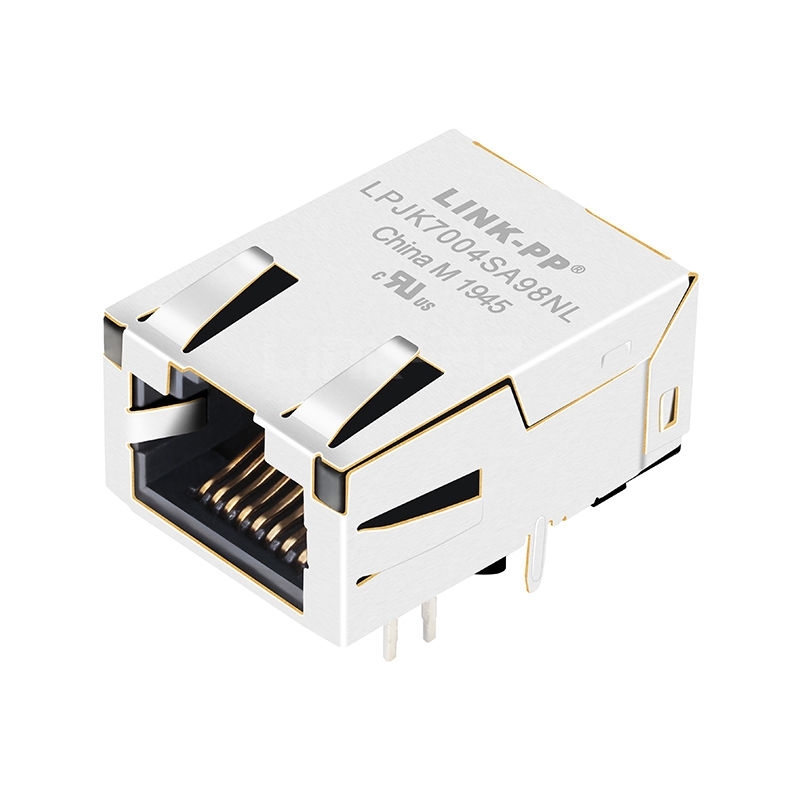

LPJK7004SA98NL 10/100 Base-T Orange&Green/Yellow LED Tab Up Low Profile RJ45 Magjack

Product summary

Product
LPJK7004SA98NL 10/100 Base-T Orange&Green/Yellow LED Tab Up Low Profile RJ45 Magjack
SKU
155776
P/N
LPJK7004SA98NL
Price
$ 3.97
Stock
4900 in Stock
Sold
5.1K
Unit price $ 3.97
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK7004SA98NLSKU: 155776

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
LPJK7004SA98NL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.970
1–99 pcs
$ 3.254
100–599 pcs
$ 2.857
600–1,199 pcs
$ 2.182
1,200–5,999 pcs
$ 1.865
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.97
Packaging Details
50 pcs
1200 pcs
Tray
40×32×33 cm
0.01 kg
12.3 kg

LINK-PP LPJK7004SA98NL 10/100 Base-T Low-Profile RJ45 Magjacak For Smart Home( Orange&Green/Yellow LED,Tab Up)


The LPJK7004SA98NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, Video Recorder, Smart Home .

LINK-PP Part Number:
LPJK7004SA98NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.946/24.04

Package Width (Inches/mm)
0.700/17.78
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK7004SA98NL Drawing LPJK7004SA98NL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Take it to chassis ground through a 1 nF capacitor and keep the trace short. Do not tie it to the signal ground at the jack. That split kept our emissions down on the last build. by LINK-PP Technical Support
  • A:
    The fifth core takes the shield drain to its own contact rather than sharing a signal return. That keeps common mode current off the pairs. We saw fewer retrains on a noisy panel by far. by LINK-PP Technical Support
  • A:
    We tested 100% before we ship out.We offer 90- 180days quality assurance. by LINK-PP Technical Support

Customer Reviews

  • 5

    68 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (68)
No data
E***t
Verified Purchase
5.0
2026-11-14
Five cores mean one spare landing on the frame, and our older boards used it for a shield drain. It has been in service since the pilot. =)
A***y
Verified Purchase
5.0
2026-06-07
Orange, green, yellow lamps, all lit. The two colours read as described.
H***w
Verified Purchase
5.0
2025-10-05
The lamp pair was the part that needed care. Orange and green share one side of the mouth and yellow sits on the other, so we mapped the three colours to link, activity and a fault line before the first build. Every jack lit the same way. No surprises on the insertion loss.
E***n
Verified Purchase
5.0
2025-05-09
A 100 Base-T low profile jack with magnetics inside. No surprises on the contact order.
M***d
Switzerland
Verified Purchase
4.0
2024-12-01
Two shells came scuffed along one edge, but the contacts were clean. Five cores carry two pairs plus a spare, and the body sat at 11.30 mm so our lid closed over it.
