LPJ0026BBNL 10 100 base-t rj45 magjack tab down green yellow led

LPJ0026BBNL 10/100 Base-T RJ45 Magjack Tab Down Green/Yellow LED

Product summary

Product
LPJ0026BBNL 10/100 Base-T RJ45 Magjack Tab Down Green/Yellow LED
SKU
173569
P/N
LPJ0026BBNL
Price
$ 2.26
Stock
1300 in Stock
Sold
66K
Unit price $ 2.26
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0026BBNLSKU: 173569

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ0026BBNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.260
1–99 pcs
$ 1.851
100–599 pcs
$ 1.625
600–1,199 pcs
$ 1.241
1,200–5,999 pcs
$ 1.061
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.26
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

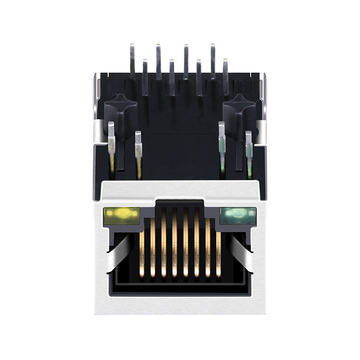

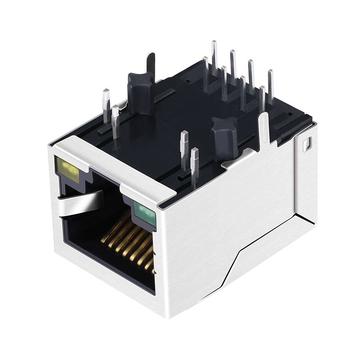

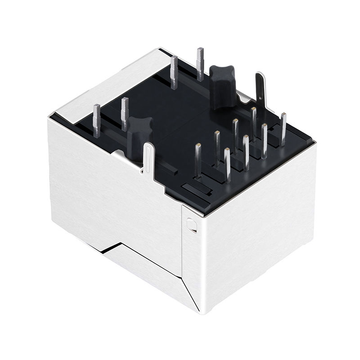

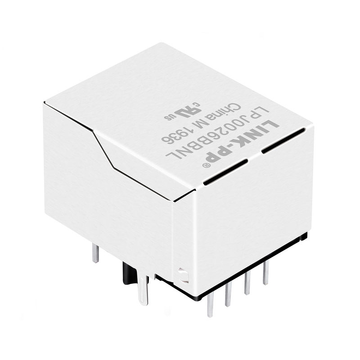

LINK-PP LPJ0026BBNL 10/100 Base-T RJ45 Ethernet Magjack for Server and Network Firewall (1x1 Port,Tab Down, Green/Yellow Led)

The LPJ0026BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Server and Embedded Main Board.

LINK-PP Part Number: LPJ0026BBNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 5
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0026BBNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 5

    47 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (47)
No data
D***e
Verified Purchase
5.0
2026-11-14
Rated 0℃ to 70℃, which covers a rink plant room that never really gets cold. The contacts came up within spec. ;)
D***y
Netherlands
Verified Purchase
5.0
2026-08-10
Our first panel showed no link and the cause was the pair order on the dehumidifier board. With the pairs swapped the 5 core winding trained at 100 megabit at once. This part has no shield fingers, so the ground comes through the 2 posts and a floating plate reads open, good.
S***t
Verified Purchase
5.0
2026-02-15
Green over yellow on the window, easy to read at a glance. The light pipe lined up first try.
C***k
Verified Purchase
5.0
2025-11-10
Went on the dehumidifier panel, latch under the mouth. It dropped into the same opening.
A***d
Verified Purchase
5.0
2025-06-27
Five cores in an 8p8c part, odd but it works. The ratio matched the drawing.
