LPJ2011KHNL 10 100 base-t rj45 magjack tab up green yellow led

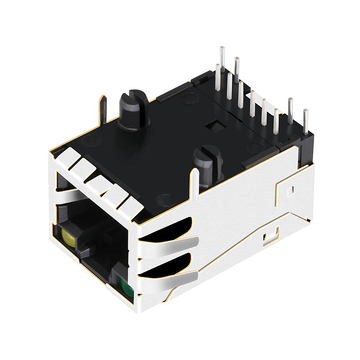

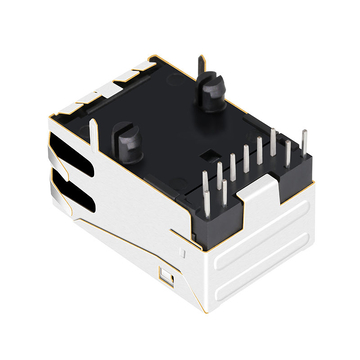

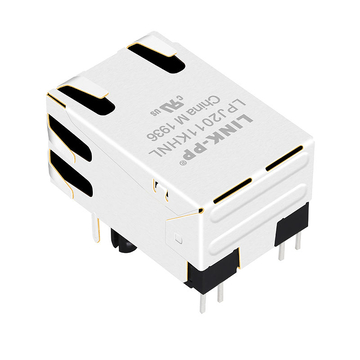

LPJ2011KHNL 10/100 Base-T RJ45 Magjack Tab Up Green/Yellow LED

Product summary

Product
LPJ2011KHNL 10/100 Base-T RJ45 Magjack Tab Up Green/Yellow LED
SKU
173137
P/N
LPJ2011KHNL
Price
$ 3.18
Stock
5100 in Stock
Sold
10.9K
Unit price $ 3.18
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ2011KHNLSKU: 173137

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ2011KHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.180
1–99 pcs
$ 2.604
100–599 pcs
$ 2.286
600–1,199 pcs
$ 1.746
1,200–5,999 pcs
$ 1.492
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.18
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LINK-PP LPJ2011KHNL 10/100 Base-T RJ45 Magjack for Digital Camera and Smart Meters (Single Port, Tab Up,Green/Yellow Led)

The LPJ2011KHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.

LINK-PP Part Number: LPJ2011KHNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch UP Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.522/13.25 Package Length (Inches/mm)

1.08/25.60

Package Width (Inches) 0.661/16.80 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ2011KHNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The page lists this body from 0℃ to 70℃ only, right for a rack above freezing. We kept ours in a conditioned room that holds the window. Ask for a -40℃ part if the enclosure turns cold, since the housing will stiffen. by LINK-PP Technical Support
  • A:
    Both shell walls hold EMI fingers that contact the panel and a pad. Solder the rows so the screen cannot float loose. The 16.80 mm face gives the two rows room. Our shielded link stayed quiet once the seam was closed. by LINK-PP Technical Support
  • A:

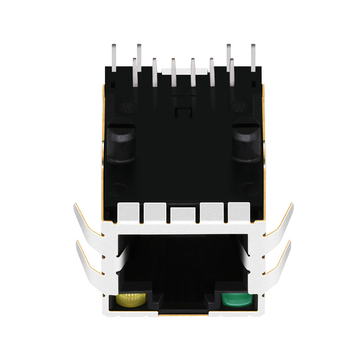

    Green and yellow sit on opposite sides of the mouth here. Both lenses border the opening on the front face. The moulding says nothing about which is which, so the driver decides. That two colour split gave us a clear link and activity readout. by LINK-PP Technical Support
  • A:
    Length along the board is 25.60 mm, the longest part in this set. Measure from the panel face to the nearest item behind it. Leave space for that reach on the layout and verify early. Our board had clearance because nothing sat near the back. by LINK-PP Technical Support
  • A:
    The latch points up on this side entry connector. You press it from above the panel cut out to release a plug. Because the body enters from the side, the cable leaves forward not sideways. Our bench swap was quick and the lead never snagged a neighbour. by LINK-PP Technical Support

Customer Reviews

  • 5

    43 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (43)
No data
Y***g
Malaysia
Verified Purchase
5.0
2026-11-14
Fitted a run of these on a slim panel where the body had to stay under a low extrusion, and the 13.25 mm height was the reason we picked it. Four cores carry the two pairs, the lamp window sits back from the face, and the tabs bond at the cutout, good.
D***l
Verified Purchase
5.0
2026-05-15
Magnetics in the body and a top latch. It matched the drawing on the tab side.
A***n
Verified Purchase
5.0
2025-07-29
Only 13.25 mm high, so a low extrusion still clears it. The panel cut matched the drawing.
E***y
Verified Purchase
5.0
2025-01-02
Green one side, yellow the other, and the window sits back far enough that a boot cannot clip it. The tab cleared the housing as expected. :D
D***m
Verified Purchase
4.0
2024-08-01
One bag came with a torn label and no part number on three jacks, but the bodies were fine. Both pairs landed and the link has held.
