LPJ2011KWNL 10 100 base-t single port integrated magnetic rj45 jack tab up green green led

LPJ2011KWNL 10/100 Base-T Single Port Integrated Magnetic RJ45 Jack Tab Up Green/Green Led

Product summary

Product
LPJ2011KWNL 10/100 Base-T Single Port Integrated Magnetic RJ45 Jack Tab Up Green/Green Led
SKU
172279
P/N
LPJ2011KWNL
Price
$ 3.18
Stock
2370 in Stock
Sold
12.1K
Unit price $ 3.18
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ2011KWNLSKU: 172279

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ2011KWNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.180
1–99 pcs
$ 2.604
100–599 pcs
$ 2.286
600–1,199 pcs
$ 1.746
1,200–5,999 pcs
$ 1.492
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2370 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.18
Packaging Details
50 pcs
1200 pcs
Tray
40×32×33 cm
0.01 kg
12.3 kg

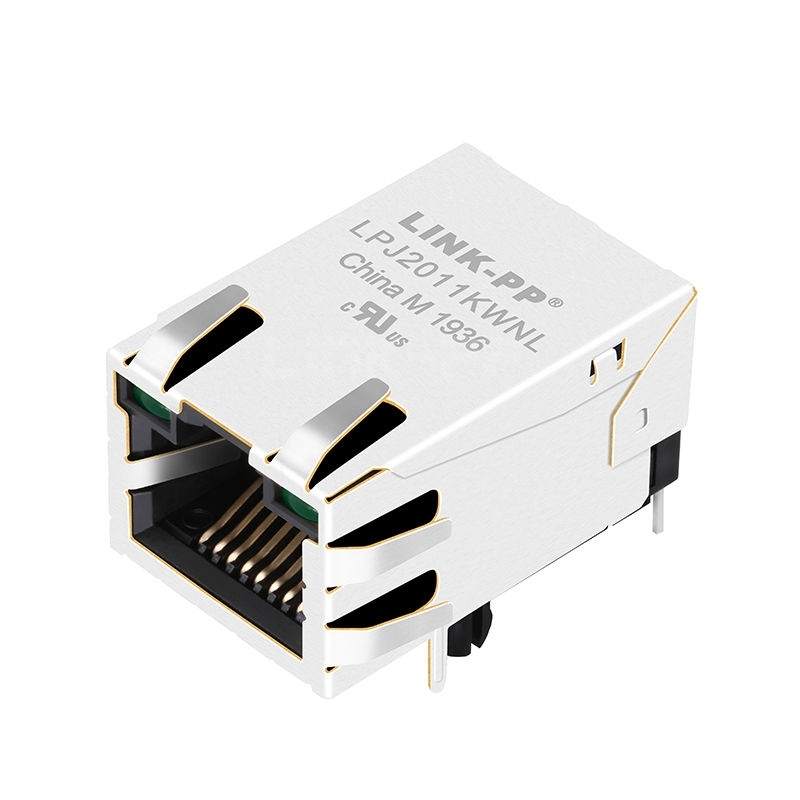

LINK-PP LPJ2011KWNL 10/100 Base-T Integrated Magnetic RJ45 Jack for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Green Led)


The LPJ9011KONL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.


LINK-PP Part Number:
LPJ2011KWNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

1.08/25.60

Package Width (Inches)
0.661/16.80Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ2011KWNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Mechanically nothing breaks, but the two cable exits point in opposite directions and that makes a tidy harness almost impossible. We standardised on tab up across the whole panel so every lead leaves the same way, and the cutouts could be shared between positions. Mixing them is fine electrically because the latch is only a retention feature. It is a packaging decision, so settle it with the enclosure drawing rather than the schematic. by LINK-PP Technical Support
  • A:
    For the monitoring and meter products this jack is aimed at, a hundred meg is plenty and it keeps the PHY and the cable bill modest. Even a high bitrate camera stream sits well inside that budget unless you are aggregating many feeds on one uplink. The trade is that you cannot run a gigabit link later without changing the jack and the silicon together. We chose it deliberately for a fixed function board that will never need more. by LINK-PP Technical Support
  • A:
    No. The magnetics are inside the jack body, along with the termination network that the bootstrap circuit references, so the board only needs the PHY side routing and the common mode components called out in the reference design. That is the main reason to pick an integrated part: fewer placements and fewer opportunities to get the matched pairs wrong. We did not add any external winding on our board and the link trained at both supported speeds. by LINK-PP Technical Support
  • A:
    Both are green on this part, so colour alone will not tell you which is link and which is activity. The assignment is in the datasheet and it follows the PHY wiring, not the housing. We labelled the two positions on the silkscreen and verified them with a live link during bring up, because swapping them is an easy mistake on a board with two identical lamps. If you need the usual colour split, the same family is offered with green and yellow. by LINK-PP Technical Support
