Breadcrumb: Home; Products; Fiber Optic Cages & Connectors; SFP Cage & Connectors; 1X1 SFP Cage; 170625

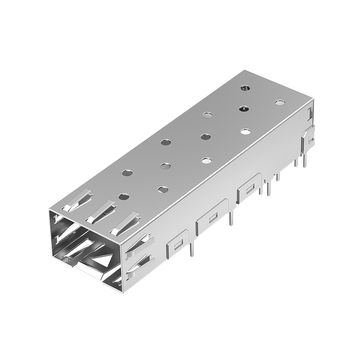

LP11ACS1000 SFP 1x1 Cage Solder With EMI Spring Finger

Name: LP11ACS1000 SFP 1x1 Cage Solder With EMI Spring Finger
Brand: LINK-PP
SKU: 170625
Price: 0.34 USD
Availability: InStock
Rating: 5 (28 reviews)

Product: LP11ACS1000 SFP 1x1 Cage Solder With EMI Spring Finger
SKU: 170625
P/N: LP11ACS1000
Price: $ 0.34
Stock: 2000 in Stock
Sold: 3K
Product URL: https://www.l-p.com/products/469202.htm

28 Reviews

4 Questions

3KSold

Unit price $ 0.34

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LP11ACS1000SKU: 170625

LINK-PP originalDatasheet 3D Model All downloads

Compatible:: Pulse; LINK-PP

Compatible P/N:: LP11ACS1000

Volume pricing Online tiers · larger qty or custom price on request

$ 0.340

1–99 pcs

$ 0.280

100–999 pcs

$ 0.258

1,000–4,999 pcs

$ 0.228

5,000–9,999 pcs

$ 0.216

≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

2000 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

Total Price:

$ 0.34

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP11ACS1000 SFP 1x1 Cage Solder With EMI Spring Finger

LINK-PP Part Number	LP11ACS1000	Part Status	Active
Product Type	Cage	Form Factor	SFP
PACKAGING	Tray Packaging	Mounting Type	Through Hole, Right Angle
Port Matrix Configuration	1x1 Port	Number of Ports	1
Operating Temperature Range	-55 – 85°C	PCB Mounting Style	Solder
Included Lightpipe	No	EMI Containment Feature Type	EMI Springs
Height (Inches/mm)	9.75/0.384	Length (Inches/mm)	48.75/1.919
Width (Inches/mm)	15.10/0.591

Model Comparison Table

	Current Model LP11ACS1000	LP11AC02000	LP11AC02000A	LP11AC02000	LP11ACS2000	LP11AC01000

Tail Length (Inches/mm)	48.75/1.919	1.919/48.75	1.919/48.75	1.919/48.75	1.919 / 48.75	1.919/48.75
Termination	Through Hole - Solder	Press-Fit	Press-Fit	Press-Fit	Through Hole - Solder	Through Hole - Press-Fit
Cage Material	-	-	-	-	-	-
Recommended PCB Thickness	-	-	-	-	-	-
Port Matrix Configuration	1x1 Port	1x1 Port	1x1 Port	1x1 Port	1x1 Port	1x1 Port
Includes Connector	-	-	-	-	-	-
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs
Included Lightpipe	No	No	No	No	No	No
Heat Sink	-	-	-	-	-	-
Data Rate (Max)	-	-	-	-	-	-

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP11ACS1000.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
How do we keep the spring finger from bending during handling? by N***l

A:
Lift the cages by the side walls rather than the front edge, and keep them in the tray until the board is ready. A front finger that has been pressed flat will not spring back into the panel cutout, and the symptom is usually a loose fit rather than an electrical fault. We added a quick visual check at goods inward and another after reflow. Bins of loose cages are the usual cause. by LINK-PP Technical Support
Q:
Where do we put the link LED without a light pipe? by A***s

A:
Keep it on the board behind the opening and bring the light out through a small faceplate hole if the panel allows one, or rely on the host display. This part has no moulded guide to carry a lamp, so an emitter placed far off centre will look dim from the front. We put the indicator close to the shell edge and labelled the port beside it. The switch still reports link state over software. by LINK-PP Technical Support
Q:
What does the solder termination change in assembly? by C***e

A:
It means the shell goes through the same reflow as the rest of the board rather than being pressed in afterwards, so the footprint and the paste apertures matter more than a press tool. We checked coplanarity on a sample from each tray and kept the thermal soak long enough for the stamped metal to reach temperature. Reworking a soldered cage takes a larger iron and more patience than swapping a pluggable. Plan that access early. by LINK-PP Technical Support
Q:
Does the minus fifty five rating cover outdoor enclosures? by N***l

A:
The quoted range covers the part itself, not the whole assembly, so the surrounding components still need their own check. We ran the board at the low end in a chamber and looked at solder joints and the latch spring after cycling, since repeated cold soaks are harder on mechanics than a single reading. Condensation matters too: a sealed box that warms quickly can wet the contacts. Rate the enclosure separately from the cage. by LINK-PP Technical Support
