LPJ19113DNL 10 100 base-t without led tab down smt rj45 connector inventory

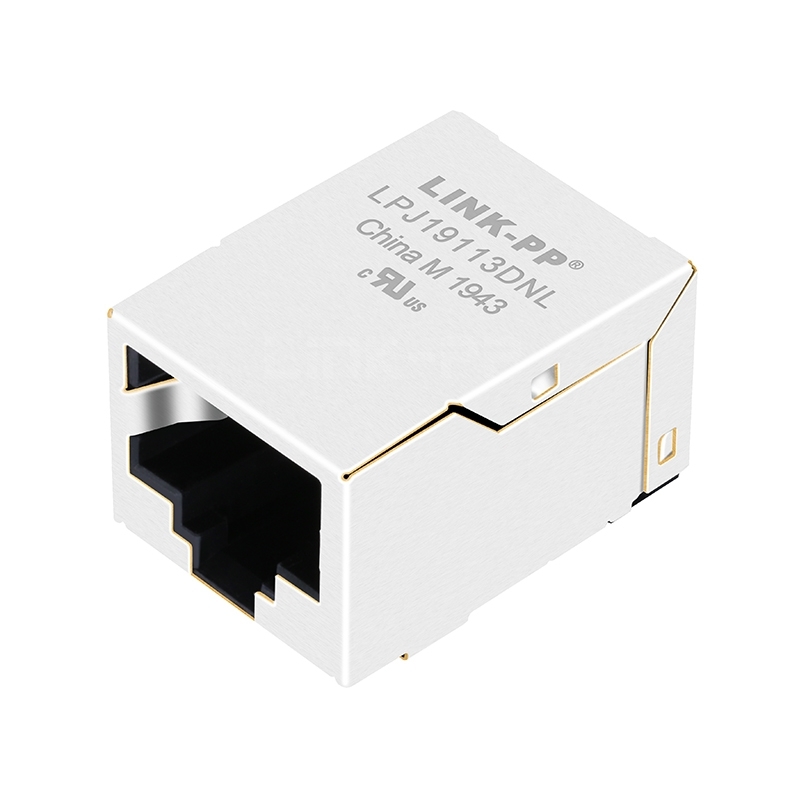

LPJ19113DNL 10/100 Base-T Without LED Tab Down SMT RJ45 Connector Inventory

Product summary

Product
LPJ19113DNL 10/100 Base-T Without LED Tab Down SMT RJ45 Connector Inventory
SKU
169467
P/N
LPJ19113DNL
Price
$ 3.97
Stock
3600 in Stock
Sold
23.8K
Unit price $ 3.97
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ19113DNLSKU: 169467

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LPJ19113DNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.970
1–99 pcs
$ 3.254
100–599 pcs
$ 2.857
600–1,199 pcs
$ 2.182
1,200–5,999 pcs
$ 1.865
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3600 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 120
Total Price:
$ 3.97
Packaging Details
120 pcs
720 pcs
Tray
36×36×35 cm
0.11 kg
8 kg

LINK-PP LPJ19113DNL 10/100 Base-T SMT RJ45 connector Inventory for Router ( Without LED Tab Down )


The LPJ19113DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, Router, Smart Meters .

LINK-PP Part Number:
LPJ19113DNL Connector Type
Jack
Part Status
Active Mounting Type
Surface Mount
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.833/21.15

Package Width (Inches/mm)
0.631/16.04
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ19113DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A 0.10 mm stencil and a gentle ramp to 240 ℃ worked for us. Too much paste bridges the inner pair on a 4 core body. We check the first board under a loupe on the bench. by LINK-PP Technical Support
  • A:
    It does, because the tails sit flat and take the pull instead of through holes. We widened the pads by 0.2 mm and kept 2 mm of copper behind them. That held on every board. by LINK-PP Technical Support
  • A:
    EXW, FOB, CFR, CIF.(defaults EXW for all quotation) by LINK-PP Technical Support

Customer Reviews

  • 5

    51 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (51)
No data
A***s
Verified Purchase
5.0
2026-11-14
Stands 13.60 mm high and measures 16.04 mm across the body. The body matched the drawing on height.
C***a
Verified Purchase
5.0
2026-03-21
With no fingers on the shell the ground path runs through the two mounting screws, which is what our chassis already does. The length matched the sheet. ;)
P***n
Verified Purchase
5.0
2025-11-10
These go on with the rest of the board and the pads take a normal profile without the body drifting. Four cores are wound inside, the latch faces down so a boot clears the edge, and the ground comes off the screws into a chassis that is already bonded. No surprises on the lead spacing.
T***n
Verified Purchase
5.0
2025-03-12
LPJ19113DNL, surface mount, no lamps. It matched the drawing on the tab side.
E***n
Verified Purchase
5.0
2024-08-09
Eight contacts take the plug, and the body is 1x1 with one latch. No drama with the tab direction.
