LPJK9436AHNL 10g base-t rj45 magjack tab up green yellow led

LPJK9436AHNL 10G Base-T RJ45 Magjack Tab Up Green/Yellow LED

Product summary

Product
LPJK9436AHNL 10G Base-T RJ45 Magjack Tab Up Green/Yellow LED
SKU
161579
P/N
LPJK9436AHNL
Price
$ 7.06
Stock
1066 in Stock
Sold
82.6K
Unit price $ 7.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJK9436AHNLSKU: 161579

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJK9436AHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 7.060
1–99 pcs
$ 5.785
100–599 pcs
$ 5.080
600–1,199 pcs
$ 3.880
1,200–5,999 pcs
$ 3.316
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1066 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 7.06
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

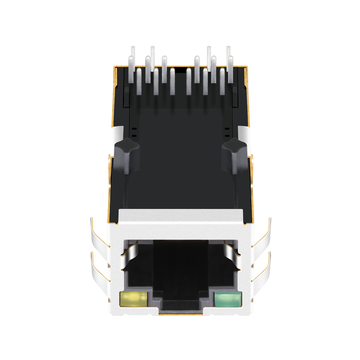

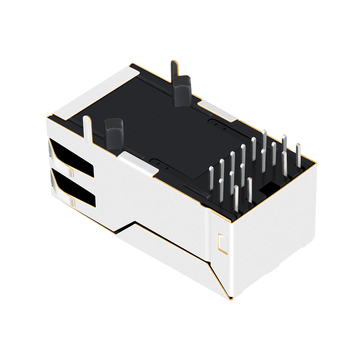

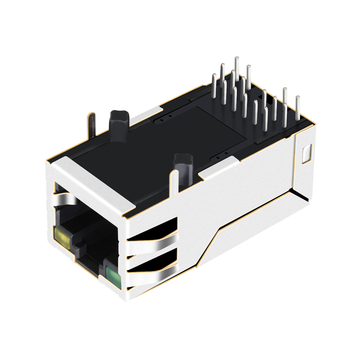

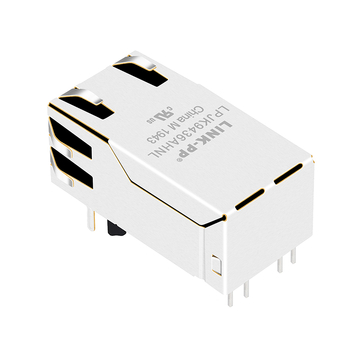

LINK-PP LPJK9436AHNL 10G Base-T RJ45 Connector With magnetics for Video Recorder and Smart Meters ( Single Port, Tab Up, Green/Yellow Led)

The LPJK9436AHNL supports speed 10G Base-T, It is compliant to IEEE 802.3,UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Video Recorder and Smart Meters.

LINK-PP Part Number: LPJK9436AHNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet(NON PoE)
Number of Ports 1x1 Port Speed 10G Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm) 0.654/16.60 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes NO Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK9436AHNL-10G-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The body reaches 32.50 mm behind the panel, which is the deepest single port we have used. Our box had 35 mm of room. Height is only 13.50 mm, so it fits a low profile face. by LINK-PP Technical Support
  • A:
    It held on the leads we tried, which were three metres. Beyond that the lead matters more than the jack. We ran a ten gigabit loop for an hour and saw no error. The mouth stayed cool. by LINK-PP Technical Support
  • A:
    The extra positions let the plug seat keyed and let the tenth and twelfth pins bond the shell. Eight of the positions still carry the signal. That is how the mouth holds a clean ten gigabit link. by LINK-PP Technical Support
  • A:
    It wants the pairs kept short and matched all the way to the magnetics. We put the parts close to the jack and kept the routing on one layer. Our eye opened clean at ten gigabits after that. by LINK-PP Technical Support
  • A:
    EXW, FOB, CFR, CIF.(defaults EXW for all quotation) by LINK-PP Technical Support

Customer Reviews

  • 4.9

    22 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (22)
No data
B***y
Saudi Arabia
Verified Purchase
5.0
2026-11-16
Second shipment came on the pallet with the trays strapped, and every bag carried a consistent date code. :)
I***k
Portugal
Verified Purchase
4.0
2026-09-28
The tray arrived with one lid scuffed, but the jacks inside were bagged. The 12p8c body kept the four pairs away from the lamp legs and the link trained a clean 10G.
X***t
Switzerland
Verified Purchase
5.0
2026-08-16
LPJK9436AHNL took the 10G link on the first try.
S***d
Chile
Verified Purchase
5.0
2026-07-10
We ran the first article through a 10G loop for two days with the four pair set patched straight through, and the error count stayed at zero on both ends, which is the number we watch before a build release.
G***y
United States
Verified Purchase
5.0
2026-06-03
Twelve positions, eight loaded, as described.
