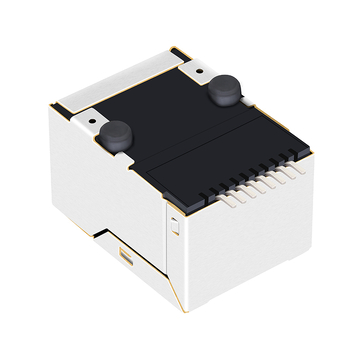

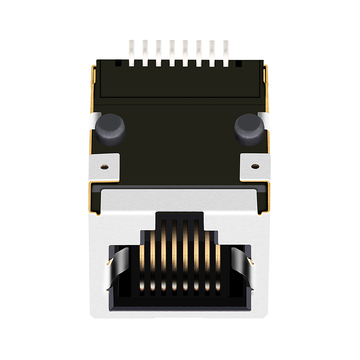

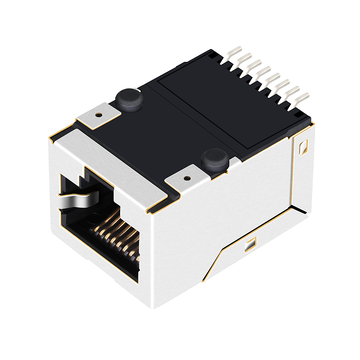

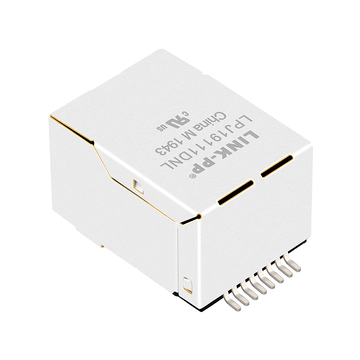

Pulse J0C-0005NL Compatible LINK-PP LPJ19111DNL 10/100 Base-T Without LED Tab Down SMD RJ45 Connector Specification

Product summary

Product
Pulse J0C-0005NL Compatible LINK-PP LPJ19111DNL 10/100 Base-T Without LED Tab Down SMD RJ45 Connector Specification
SKU
139085
P/N
LPJ19111DNL
Price
$ 3.97
Stock
3000 in Stock
Sold
7K
Unit price $ 3.97
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ19111DNLSKU: 139085

Compatible with Pulse J0C-0005NL3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 3.970
1–99 pcs
$ 3.254
100–599 pcs
$ 2.857
600–1,199 pcs
$ 2.182
1,200–5,999 pcs
$ 1.865
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 120
Total Price:
$ 3.97
Packaging Details
120 pcs
720 pcs
Tray
36×36×35 cm
0.11 kg
8 kg

Pulse J0C-0005NL Compatible LINK-PP LPJ19111DNL 10/100 Base-T SMD RJ45 Connector Specification For Patient Care ( Tab Down ,Without LED )


The LPJ19111DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Router and Surgical Equipment .


LINK-PP Part Number:
LPJ19111DNL Pulse Part Number J0C-0005NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.833/21.15

Package Width (Inches/mm)
0.631/16.04
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJ19111DNL模型.zip
3D Model LPJ19111DNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A 0.12 mm stencil with a 90 percent window gave clean fillets on 500 units. Without the reduction we saw two bridges on the first panel. The pad pitch is the reason a 1 to 1 window bridges. by LINK-PP Technical Support
  • A:
    There are no pin tails under the board, so the body can sit closer to the edge. That 0.1 mm saved us a rail on a tight panel. The 16.04 mm width is what actually grew. by LINK-PP Technical Support
  • A:
    Two locating pegs take the side load and the 4 solder pads only hold the shell down. We measured 9 N per mate with no movement at the pegs. A stencil at 0.12 mm gave full fillets. by LINK-PP Technical Support
  • Q:
    A:
    Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on the products. by LINK-PP Technical Support
