Lan Transformer
Single Port Lan Transformer
10/100 Base-T Lan Transformer
138732

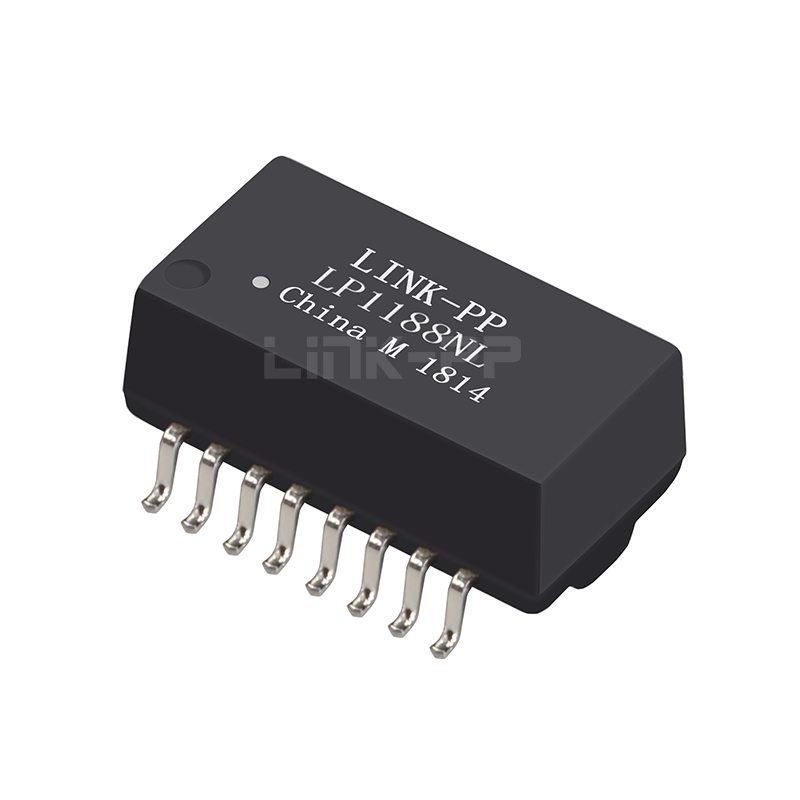

Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Single Port SMD 16PIN Lan Magnetics
  • Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Single Port SMD 16PIN Lan Magnetics thumb image 1
  • Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Single Port SMD 16PIN Lan Magnetics thumb image 2

Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Single Port SMD 16PIN Lan Magnetics

#138732
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Single Port SMD 16PIN Lan Magnetics

  • C$  0.959

    9679 in Stock

 29 Reviews
0 Questions
Request Stock
113.2K Sold
C$  0.959
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
10
C$0.959
600
C$0.633
3600
C$0.509
10800
C$0.461
21600
C$0.413
Manufacture: LINK-PP
P/N: LP1188NL
Compatible:
LINK-PP
Belfuse
Pulse
WE
XFMRS
Competitor P/N:
H1601CG
HX1188
HX1188FNL
HX1188NL
HX1260NL
Shipping:
C$ 40.374
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
9679 in Stock .
Quantity:
Total Price:
C$ 0.959
Packaging Details:
0.002kg
Reel
750pcs
4500pcs
36*35.5*23cm
6.3kg
Add to wish

Pulse HX1260NL Compatible LINK-PP LP1188NL 10/100 Base-T Lan Magnetics for 1/0 Controller ( SMD 16PIN Single Port )


The LP1188NL speed 10/100 Base-T, It is compliant to IEEE 802.3 , UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Industrial PC, Embedded Main Board, Automation, Video Recorder.


LINK-PP Part Number:
 LP1188NL Pulse Part Number HX1260NL
Part Status
 Active Transformer Type
 Lan Transformer
Construction
 OPEN FRAME
 Application-Lan
 Ethernet(NoN PoE)
Number of Ports
Single PortSpeed
10/100 Base-T
Package
Tape & ReelCores per Port
4
AutomDX
YesComment

SAME AS NL VERSION

PIN number
16
Mounting Type

Surface Mount

Package Height (Inches/mm)
0.201/5.10Package Length (Inches/mm)0.504/12.80
Package Width (Inches/mm)
0.366/9.30Temperature
-40℃ TO +85℃
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C,S


  1. 1000 BASE-T Dual Port Transformer Modules

Download

Product Drawing

3D Model
