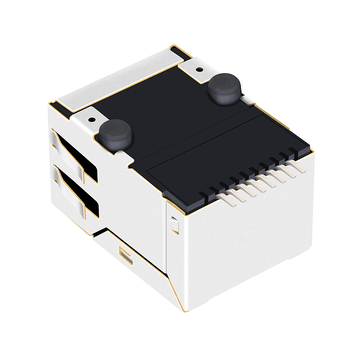

Pulse J0C-0006T Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMD RJ45 Socket PCB Mount

Product summary

Product
Pulse J0C-0006T Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMD RJ45 Socket PCB Mount
SKU
137617
P/N
LPJ19111CNL
Price
$ 3.53
Stock
4500 in Stock
Sold
5.5K
Unit price $ 3.53
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ19111CNLSKU: 137617

Compatible with Pulse J0C-0006TDatasheet3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 3.530
1–99 pcs
$ 2.892
100–599 pcs
$ 2.539
600–1,199 pcs
$ 1.940
1,200–5,999 pcs
$ 1.658
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 120
Total Price:
$ 3.53
Packaging Details
120 pcs
720 pcs
Tray
36×36×35 cm
0.11 kg
8 kg

Pulse J0C-0006T Compatible LINK-PP LPJ19111CNL 10/100 Base-T SMD RJ45 Socket PCB Mount For Machine ( Tab Down ,Without LED )


The LPJ19111CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Switches and Router.


LINK-PP Part Number:
LPJ19111CNL Pulse Part Number J0C-0006T
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.864/21.95

Package Width (Inches/mm)
0.640/16.26
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ19111CNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The mouth faces the board edge, so the plug comes in from below the plate. We left 20 mm under the board for the plug body and the boot. The jack itself is 13.60 mm tall. by LINK-PP Technical Support
  • A:
    The tails land on the top side, so no holes are drilled under the body. Paste volume matters more here, because the tails sit flat on the pad. We kept the ground pour 0.3 mm off the pad edge. 40 units built. by LINK-PP Technical Support
  • A:
    Yes, no problem. Custom logo and custom packing will be no problem for us. For example, custom artworks and patterns printing on phone cases, and OEM brand rj45 connector, lan transformer etc. with your own logos. by LINK-PP Technical Support

Customer Reviews

  • 5

    51 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (51)
No data
H***m
Verified Purchase
5.0
2026-11-14
Part number LPJ19111CNL, a reflowed body with no lamps at all. It sat within spec after the reflow.
B***k
Verified Purchase
4.0
2026-03-26
One reel came late and the tape had slipped, but every jack sat square in the pocket. The body reflowed flat and both pairs landed on the first plug. The parts were exactly as described.
P***a
Verified Purchase
5.0
2024-05-20
Reflow was the reason for this part. Our board goes through the oven in one pass and a through hole jack meant a second operation and a hand touch on every unit. This one sits flat on the pads, the tabs still bite the plate, and two pairs landed first plug.
N***g
Verified Purchase
5.0
2023-10-17
The front needs no lamp window, so the label covers the whole face and there is nothing on the jack to fog up in a washdown. The packing held up through the trip. =)
C***n
Verified Purchase
5.0
2023-05-02
The tabs reach the plate on all four sides. It matched the sheet on the form factor.
