What does a tab down 10P8C footprint look like?

The clip hangs under the mouth in this right angle through hole footprint. Ten board positions include the LED and bridge tails. A tab up drawing places the clip on the opposite edge. Your PCB library part carries that outline and drill table.

Is 802.3 af handshaking handled by the bridge?

The bridge only rectifies what arrives on the spare or data pair conductors. Detection and classification are handled by the PSE and PD chips. Those devices sit outside this connector body. Your power design picks the controller for that handshake.

Do the yellow and green LEDs have fixed meanings?

Two lens windows are moulded into the front face of this jack. Their anode and cathode tails leave as distinct board pins. We publish no state table tying a colour to a speed. Your firmware and silkscreen define those two meanings.

Which parts share the housing when magnetics and a bridge are built in?

Isolation windings and a rectifier bridge share this shielded 1x1 shell. The 8 data contacts reach the coils before leaving as board tails. Bridge output appears on 2 separate pads beside them. Your schematic assigns those pads to the supply rail.

Breadcrumb: Home; Products; Integrated RJ45 Connector; Single Port RJ45 Connector; 10/100 Base-T RJ45 Connector; 105786

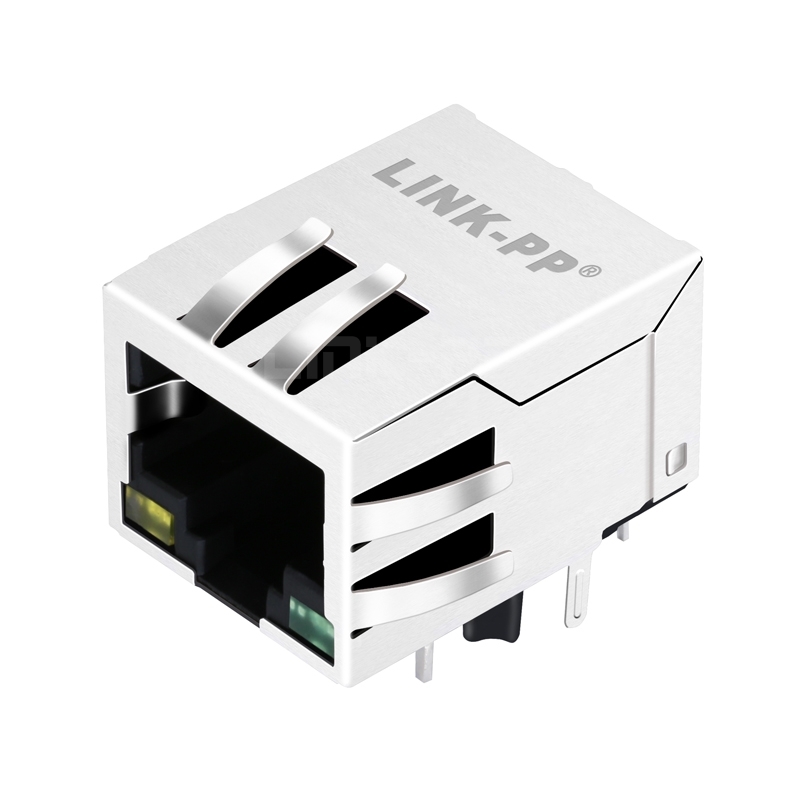

LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 PoE Magnetics Connector With Rectifier Bridge Tab Down Yellow/Green LED

Name: LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 PoE Magnetics Connector With Rectifier Bridge Tab Down Yellow/Green LED
Brand: LINK-PP
SKU: 105786
Price: 2.63 USD
Availability: InStock
Rating: 5 (120 reviews)

Product: LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 PoE Magnetics Connector With Rectifier Bridge Tab Down Yellow/Green LED
SKU: 105786
P/N: LPJ0009GDNL
Price: $ 2.63
Stock: 9774 in Stock
Sold: 226
Product URL: https://www.l-p.com/products/439661.htm

120 Reviews

4 Questions

226Sold

Unit price $ 2.63

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LPJ0009GDNLSKU: 105786

LINK-PP originalDatasheet 3D Model All downloads

Compatible:: LINK-PP

Compatible P/N:: LPJ0009GDNL

Volume pricing Online tiers · larger qty or custom price on request

$ 2.630

1–99 pcs

$ 2.158

100–599 pcs

$ 1.895

600–1,199 pcs

$ 1.448

1,200–5,999 pcs

$ 1.237

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

9774 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.63

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.007 kg
G.W./carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJ0009GDNL 10/100 Base-T RJ45 PoE Magnetics Connector for Monitoring System and Smart Meters (Rectifier Bridge, POE, 1x1 Port, Tab Down, Yellow/Green Led)

The LPJ0009GDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.

LINK-PP Part Number	LPJ0009GDNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow/Green
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	Rectifier Bridge	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

With Tvs and Diode RJ45 Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

3D Model LPJ0009GDNL.zip

3D Model LPJ0009GDNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
What does a tab down 10P8C footprint look like? by A***e

A:
The clip hangs under the mouth in this right angle through hole footprint. Ten board positions include the LED and bridge tails. A tab up drawing places the clip on the opposite edge. Your PCB library part carries that outline and drill table. by LINK-PP Technical Support
Q:
Is 802.3 af handshaking handled by the bridge? by A***t

A:
The bridge only rectifies what arrives on the spare or data pair conductors. Detection and classification are handled by the PSE and PD chips. Those devices sit outside this connector body. Your power design picks the controller for that handshake. by LINK-PP Technical Support
Q:
Do the yellow and green LEDs have fixed meanings? by J***n

A:
Two lens windows are moulded into the front face of this jack. Their anode and cathode tails leave as distinct board pins. We publish no state table tying a colour to a speed. Your firmware and silkscreen define those two meanings. by LINK-PP Technical Support
Q:
Which parts share the housing when magnetics and a bridge are built in? by B***e

A:
Isolation windings and a rectifier bridge share this shielded 1x1 shell. The 8 data contacts reach the coils before leaving as board tails. Bridge output appears on 2 separate pads beside them. Your schematic assigns those pads to the supply rail. by LINK-PP Technical Support
