LPJ4284EENL 10 100 base-t green yellow led tab down 1 port rectifier bridge poe rj45 magjack

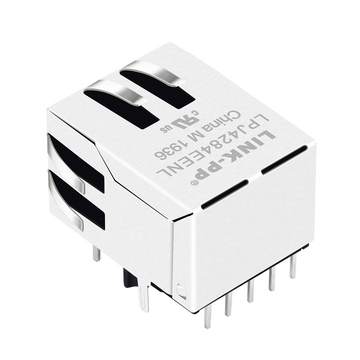

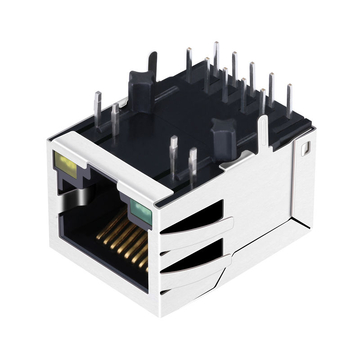

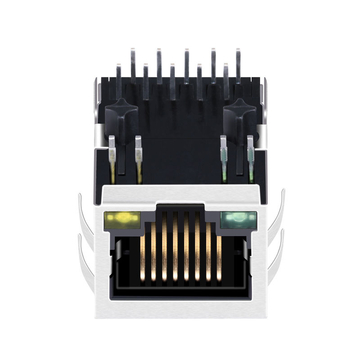

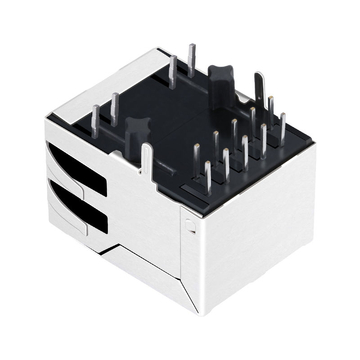

LPJ4284EENL 10/100 Base-T Green/Yellow LED Tab Down 1 Port Rectifier Bridge PoE RJ45 Magjack

Product summary

Product
LPJ4284EENL 10/100 Base-T Green/Yellow LED Tab Down 1 Port Rectifier Bridge PoE RJ45 Magjack
SKU
105646
P/N
LPJ4284EENL
Price
$ 3.53
Stock
1047 in Stock
Sold
217.5K
Unit price $ 3.53
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ4284EENLSKU: 105646

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJ4284EENL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.530
1–99 pcs
$ 2.892
100–599 pcs
$ 2.539
600–1,199 pcs
$ 1.940
1,200–5,999 pcs
$ 1.658
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1047 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.53
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

10/100 Base-T PoE RJ45 Magnetic Jack for Monitoring System and Smart Meters (Rectifier Bridge, POE, 1x1 Port, Tab Down, Green/Yellow Led)

The LPJ4284EENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.

LINK-PP Part Number: LPJ4284EENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes Rectifier Bridge Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ4284EENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 4.9

    95 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (95)
No data
R***o
Italy
Verified Purchase
4.0
2026-11-07
Four stars because the bag had the part number but not the latch direction, and we fitted two into a chassis expecting tab up. Once we turned the boards over the ports worked and PoE came up on every one.
D***e
Finland
Verified Purchase
5.0
2026-10-12
Two year record on a hundred jacks in outdoor cameras. We log PoE current per port and data errors per port every day, and the numbers have been flat: no port has lost the data link while delivering power, and the only failures were three mechanical, all cables pulled out sideways with the clip still engaged. The bridge rectifier has meant we never had to care which way the pairs went in.
K***n
Ireland
Verified Purchase
5.0
2026-09-15
Green and yellow lamps, and the PoE bridge sits inside the housing.
M***t
India
Verified Purchase
5.0
2026-08-19
Ten cameras on one switch, all fed through this jack, none dropped.
C***n
Czech Republic
Verified Purchase
5.0
2026-07-24
The four core layout is right for a 100M PoE camera and cheaper than the eight core part. Only two pairs carry data, the other two feed the rectifier, so the jack does not need the extra contacts a gigabit design would.
