LPJ4025GENL 10 100 base-t jack rj45 magnetics single port tab down green yellow led

LPJ4025GENL 10/100 Base-T Jack RJ45 Magnetics Single Port Tab Down Green/Yellow LED

Product summary

Product
LPJ4025GENL 10/100 Base-T Jack RJ45 Magnetics Single Port Tab Down Green/Yellow LED
SKU
105610
P/N
LPJ4025GENL
Price
$ 2.16
Stock
6000 in Stock
Sold
999
Unit price $ 2.16
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ4025GENLSKU: 105610

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
XFMRS
LINK-PP
Compatible P/N:
LPJ4025GENL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.160
1–99 pcs
$ 1.771
100–599 pcs
$ 1.555
600–1,199 pcs
$ 1.188
1,200–5,999 pcs
$ 1.015
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
6000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.16
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

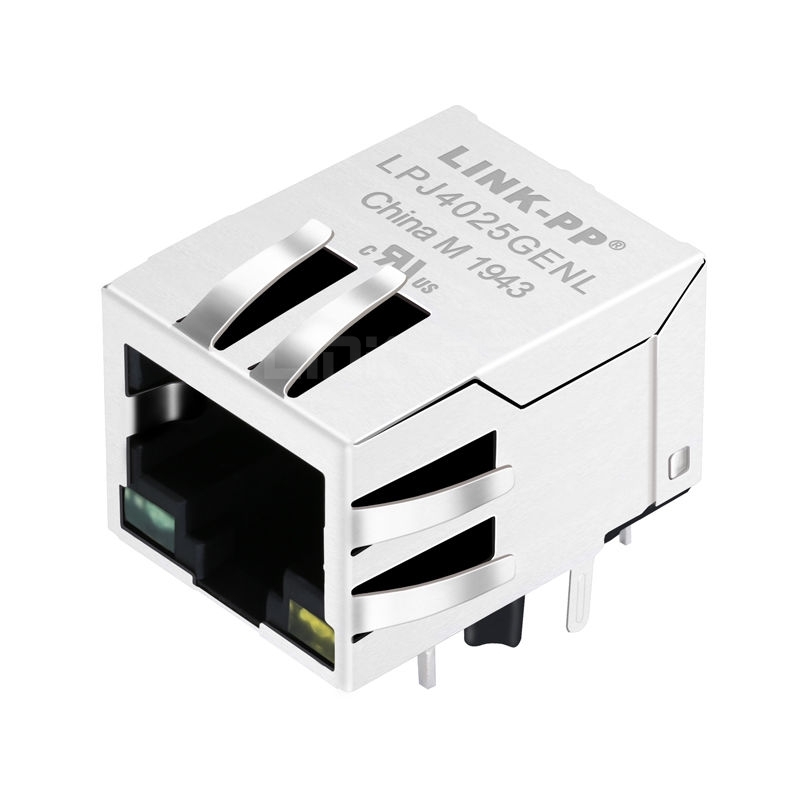

LPJ4025GENL Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS

LINK-PP Part Number:
LPJ4025GENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches)
0.626/15.90Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ4025GENL Drawing LPJ4025GENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Only after comparing drawings. Tab Down changes which edge of the opening needs finger room, and on many Magjacks the indicator pin order follows the tab orientation. Mirroring the outline is the usual mistake: the part then sits with the cable exit on the wrong side and the Green/Yellow legs reversed. Electrically the 1CT:1CT ratio and the termination note are the same, but the mechanics are not. If the bezel cannot change, order the Tab Up sibling and keep the rest of the design as it is. by LINK-PP Technical Support
  • A:
    The jack is rated for 10/100 and the 1CT:1CT ratio is the standard match, so no extra magnetics are needed. For long runs check termination and layout: keep the Bob Smith network beside the pins, match the differential pair lengths, and avoid stubs between jack and PHY. Circuit Yes and Diodes No place that network on your board. If links turn marginal at length, check the cable and the PHY drive setting before blaming the connector - at 100 Base-T the jack is seldom the limiting part. by LINK-PP Technical Support
  • A:
    With a moulded case there is no panel for the fingers to press on, so their usual job disappears. Dropping the shell onto digital ground and assuming the shielding still works is the common mistake. If you later move to a metal bezel, revisit the bond and let the fingers make contact. Check their shape after insertion; a bent finger can touch the plug shell. by LINK-PP Technical Support
  • A:
    On most builds yes, but the saving is in assembly rather than the unit price. The 1CT:1CT RX/TX ratio matches the usual 10/100 PHY reference, so the symbol often carries over unchanged. Check two things first: the termination network still sits on your board, because Circuit Yes describes a recommended network rather than hidden parts, and no older layout has tied a supply rail to the centre taps. by LINK-PP Technical Support
