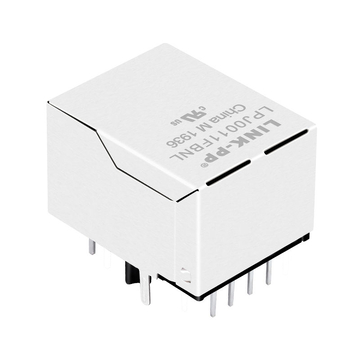

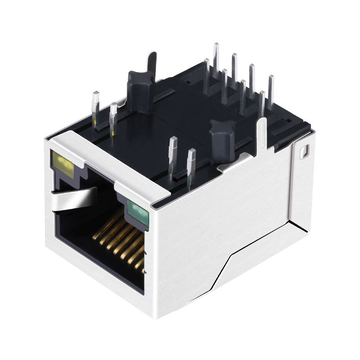

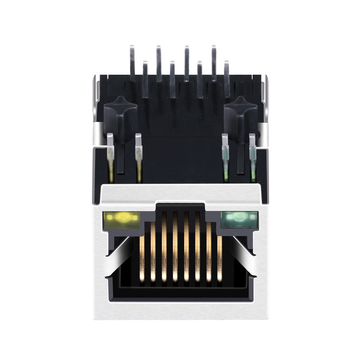

LPJ0011FBNL 10/100 Base-T Tab Down 1x1 Port RJ45 Magjack Green/Yellow LED

Product summary

Product
LPJ0011FBNL 10/100 Base-T Tab Down 1x1 Port RJ45 Magjack Green/Yellow LED
SKU
103895
P/N
LPJ0011FBNL
Price
$ 2.08
Stock
7344 in Stock
Sold
178.7K
Unit price $ 2.08
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ0011FBNLSKU: 103895

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJ0011FBNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.080
1–99 pcs
$ 1.706
100–599 pcs
$ 1.498
600–1,199 pcs
$ 1.145
1,200–5,999 pcs
$ 0.978
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
7344 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.08
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LPJ0011FBNL 10/100 Base-T Tab Down 1x1 Port RJ45 Magjack Green/Yellow LED

LINK-PP Part Number: LPJ0011FBNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.528/13.40 Package Length (Inches/mm)

0.836/21.30

Package Width (Inches/mm) 0.626/15.90 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0011FBNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 5

    70 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (70)
No data
L***e
Argentina
Verified Purchase
5.0
2026-11-13
Lamp pair reads green then yellow, handy at the plate.
R***n
Brazil
Verified Purchase
4.0
2026-07-07
One shipment was late by 3 days, but every body seated flat on the posts. Both pairs trained at 100 megabit, and the lamps show through the cover. A solid part.
L***y
Verified Purchase
5.0
2025-12-09
The 13.40 by 15.90 footprint matched the part we retired, so the opening did not change. Four cores carry both pairs, and the magnetics sit inside the body. A quiet swap. It sat within spec on the body height.
N***d
United States
Verified Purchase
5.0
2025-09-16
Clean swap, no retooling.
Y***a
Israel
Verified Purchase
5.0
2025-03-09
This board sits behind a polycarbonate cover, so a shielded shell would only add cost. Ground returns through the housing posts into our bracket, and the emissions run stayed inside the limit. Four cores carry both data pairs and the spare line our reader needs. 300 units out, no port fault and no rework, good.
