The LP1183NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

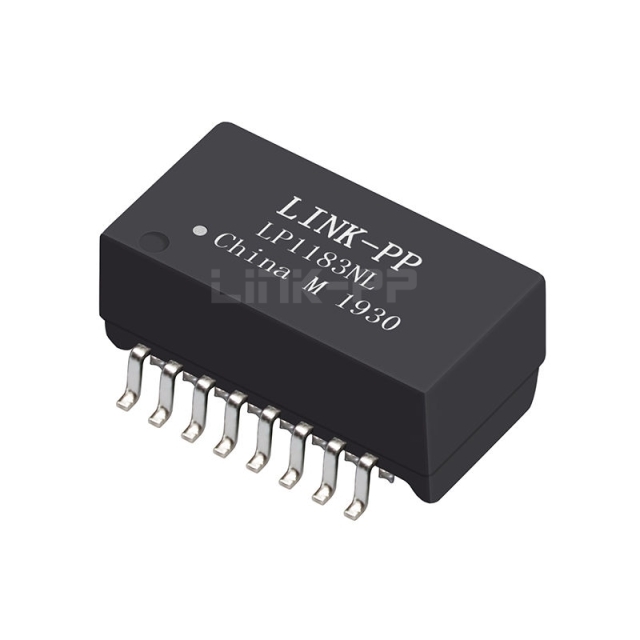

LINK-PP Part Number: | LP1183NL | Pulse Part Number | H1183NL |
Part Status | Active | Transformer Type | Lan Transformer |
Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
Number of Ports | Single Port | Speed | 10/100 Base-T |
Package | Tape & Reel | Cores per Port | 4 |
AutomDX | Yes | Comment | SAME AS NL VERSION |
PIN number | 16 | Mounting Type | Surface Mount |
Package Height (Inches/mm) | 0.244/6.20 | Package Length (Inches/mm) | 0.500/12.70 |
Package Width (Inches/mm) | 0.366/9.30 | Temperature | 0℃ TO +70℃ |
Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
