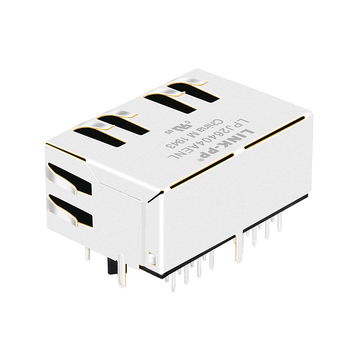

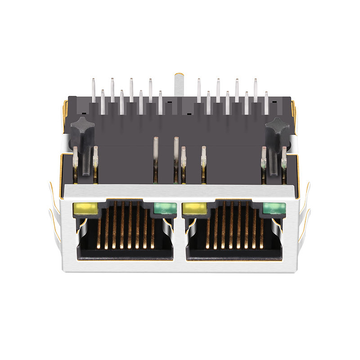

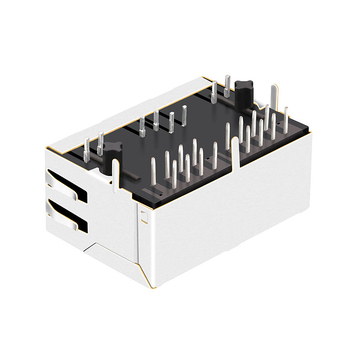

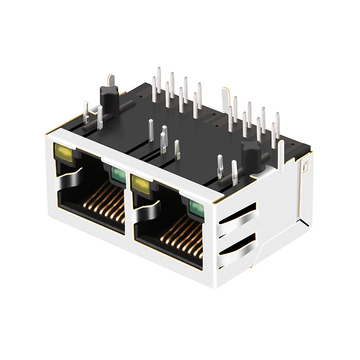

Pulse JX80-0037NL Compatible LINK-PP LPJ26404AENL 10/100 Base-T Tab Down Green/Yellow LED 1x2 Port RJ45 Connectors w/o Magnetics

Product summary

Product
Pulse JX80-0037NL Compatible LINK-PP LPJ26404AENL 10/100 Base-T Tab Down Green/Yellow LED 1x2 Port RJ45 Connectors w/o Magnetics
SKU
103378
P/N
LPJ26404AENL
Price
$ 4.85
Stock
2447 in Stock
Sold
18.8K
Unit price $ 4.85
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ26404AENLSKU: 103378

Compatible with Pulse JX80-0037NLDatasheet3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 4.850
1–99 pcs
$ 3.977
100–599 pcs
$ 3.492
600–1,199 pcs
$ 2.668
1,200–5,999 pcs
$ 2.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2447 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 30
Total Price:
$ 4.85
Packaging Details
30 pcs
600 pcs
Tray
37×30×30 cm
0.015 kg
9 kg

Pulse JX80-0037NL Compatible LINK-PP LPJ26404AENL 10/100 Base-T RJ45 Connectors w/o Magnetics for Machine and Router (1x2 Port , Tab Down ,Green/Yellow LED)


The LPJ26404AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Machine, Router,Operation Generator and .


LINK-PP Part Number:
LPJ26404AENL Pulse Part Number JX80-0037NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.536/13.61Package Length (Inches/mm)

0.841/21.36

Package Width (Inches/mm)
1.228/31.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ26404AENL Drawing LPJ26404AENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Because the same body and windings go into outdoor and industrial gear, where a cabinet can sit well below freezing before its heater comes on. Nothing in the magnetics is troubled at ten megabit, but the moulding and the plating are, and the cold end is where a cheap compound cracks. We screen both limits and keep the wide range on the drawing rather than on special order. by LINK-PP Technical Support
  • A:
    Two windows with a bridge between them, when the sheet metal can take it. A single opening that wide loses the web that keeps the plate flat, and a bowed plate pinches one mouth while loosening the other. If one window is unavoidable, add a centre post landing on the body. Gauge both openings with a plug after the panel is formed. by LINK-PP Technical Support
  • A:
    At these rates there is plenty of headroom, so the shared housing is not the problem it would be at gigabit. Each mouth has its own four core transformer and the pair separation inside the part is sized for the band. Keep the two channels apart on your board, avoid running one pair beneath the other opening, and the ports behave like two independent jacks. by LINK-PP Technical Support
