tyco 6605760-3 compatible link-pp lpj16264dnl 10 100 base-t rj45 ethernet connector tab up without led

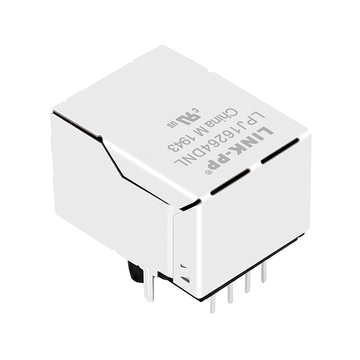

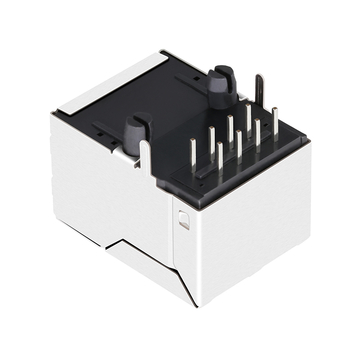

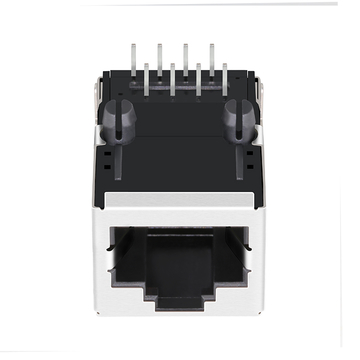

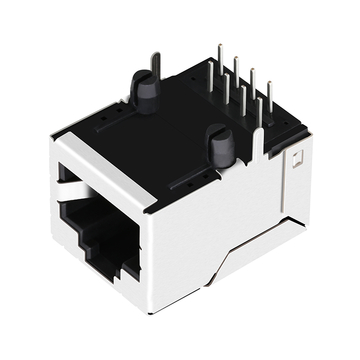

Tyco 6605760-3 Compatible LINK-PP LPJ16264DNL 10/100 Base-T RJ45 Ethernet Connector Tab Up Without Led

Product summary

Product
Tyco 6605760-3 Compatible LINK-PP LPJ16264DNL 10/100 Base-T RJ45 Ethernet Connector Tab Up Without Led
SKU
95412
P/N
LPJ16264DNL
Price
$ 2.34
Stock
2575 in Stock
Sold
43.9K
Unit price $ 2.34
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ16264DNLSKU: 95412

Compatible with Tyco 6605760-33D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
6605760-3
Volume pricing Online tiers · larger qty or custom price on request
$ 2.340
1–99 pcs
$ 1.916
100–599 pcs
$ 1.683
600–1,199 pcs
$ 1.285
1,200–5,999 pcs
$ 1.098
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2575 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.34
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Tyco 6605760-3 Compatible LINK-PP LPJ16264DNL 10/100 Base-T RJ45 Ethernet Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Without Led)


The LPJ16264DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ16264DNL
Tyco Part Number 6605760-3
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.846/21.50

Package Width (Inches/mm)
0.630/16.00Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJ16264DNL.zip
3D Model LPJ16264DNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, the shell stands 13.60 mm off the card. That leaves under half a millimetre of air under a 14 mm lid. We checked the gap with a feeler gauge on ten samples and all cleared. by LINK-PP Technical Support
  • A:
    Lamps add a lens that can foul a low cover and a window that has to be cut. This board already shows link state on a front panel. A bare mouth keeps the plate simple and the cutout very small. by LINK-PP Technical Support
  • A:
    The jack is rated 0℃ to 70℃ and the body is closed on the sides. Wash down depends on the enclosure, not on the jack. We fit it inside a sealed box with a gasket around the plate. by LINK-PP Technical Support
  • A:
    Four cores per port, which is two pairs. That is all a 100 Base-T link needs on the line we run. If the design may move to gigabit later, a part with eight cores is the safer choice. by LINK-PP Technical Support
