pulse jxd1-0015nl compatible link-pp lpjg16464adnl 100 1000 base-t single port shielded rj45 magjack tab up yellow green led

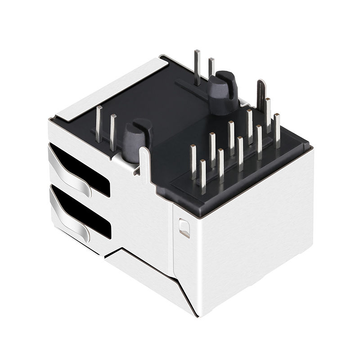

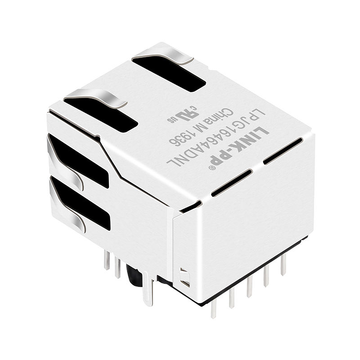

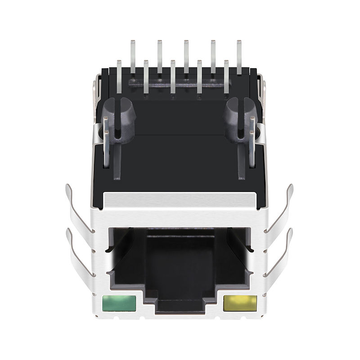

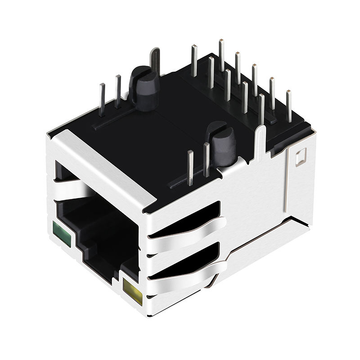

Pulse JXD1-0015NL Compatible LINK-PP LPJG16464ADNL 100/1000 Base-T Single Port Shielded RJ45 Magjack Tab Up Yellow/Green LED

Product summary

Product
Pulse JXD1-0015NL Compatible LINK-PP LPJG16464ADNL 100/1000 Base-T Single Port Shielded RJ45 Magjack Tab Up Yellow/Green LED
SKU
95288
P/N
LPJG16464ADNL
Price
$ 3.35
Stock
9956 in Stock
Sold
78.8K
Unit price $ 3.35
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG16464ADNLSKU: 95288

Compatible with Pulse JXD1-0015NLDatasheet3D ModelAll downloads

Compatible:
Pulse
Compatible P/N:
JXD1-0015NL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.350
1–99 pcs
$ 2.748
100–599 pcs
$ 2.413
600–1,199 pcs
$ 1.843
1,200–5,999 pcs
$ 1.575
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
9956 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.35
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

Pulse JXD1-0015NL Compatible LINK-PP LPJG16464ADNL 100/1000 Base-T Shielded rj45 Ethernet Magjack for Industrial PC and Fieldbus System (Single Port, Tab Up,Yellow/Green Led)

The LPJG16464ADNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number: LPJG16464ADNL Pulse Part Number JXD1-0015NL
Part Status Active Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Yellow/Green Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.530/13.45 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG16464ADNL Drawing LPJG16464ADNL-Drawing.pdf
