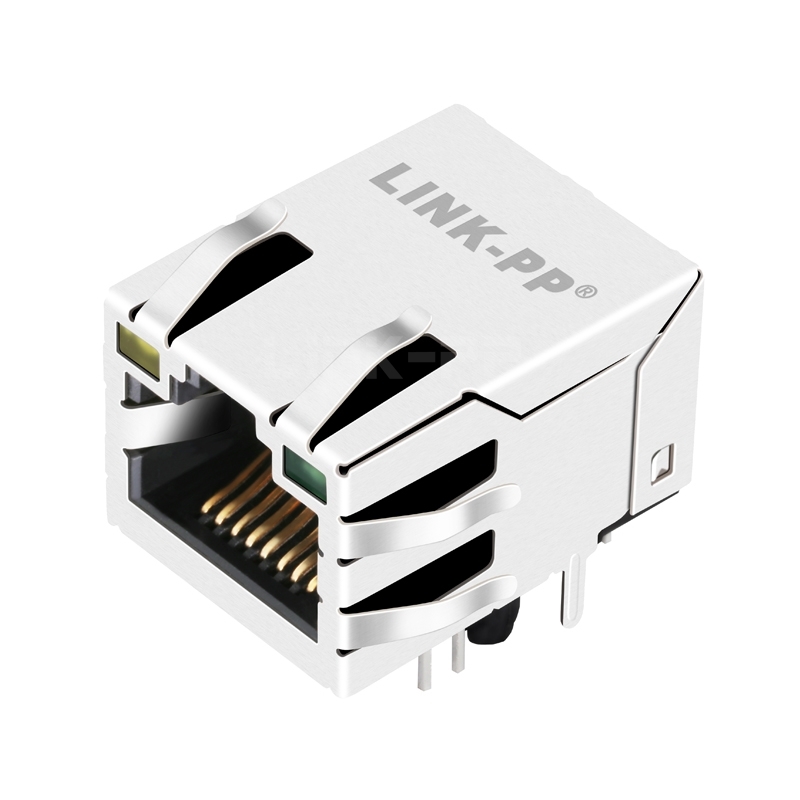

Pulse JXD1-0025NL Compatible LINK-PP LPJG16459ADNL 100/1000 Base-T Tab Up Yellow/Green Led Single Port Shielded 8P8C Magnetic RJ45 Connector Price

Product summary

Product
Pulse JXD1-0025NL Compatible LINK-PP LPJG16459ADNL 100/1000 Base-T Tab Up Yellow/Green Led Single Port Shielded 8P8C Magnetic RJ45 Connector Price
SKU
137342
P/N
LPJG16459ADNL
Price
$ 3.53
Stock
1130 in Stock
Sold
11.5K
Unit price $ 3.53
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG16459ADNLSKU: 137342

Compatible with Pulse JXD1-0025NLDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
JXD1-0025NL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.530
1–99 pcs
$ 2.892
100–599 pcs
$ 2.539
600–1,199 pcs
$ 1.940
1,200–5,999 pcs
$ 1.658
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1130 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.53
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

Pulse JXD1-0025NL Compatible LINK-PP LPJG16459ADNL 100/1000 Base-T Shielded 8P8C Magnetic RJ 45 Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Yellow/Green Led)


The LPJG16459ADNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJG16459ADNL Pulse Part Number JXD1-0025NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP
