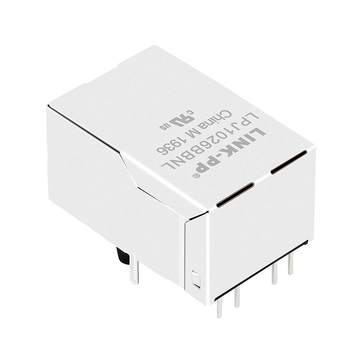

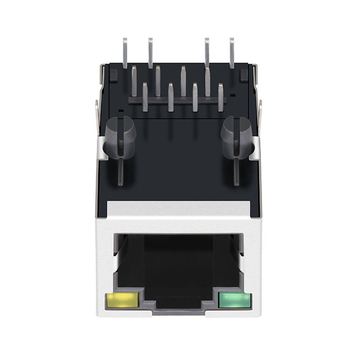

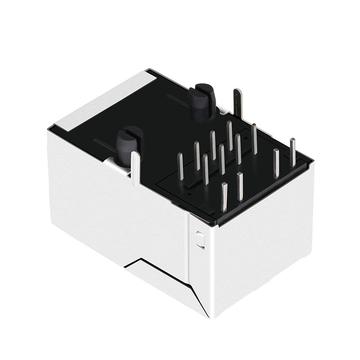

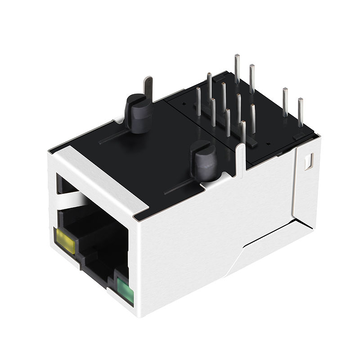

Pulse J1026F01PNL Compatible LINK-PP LPJ1026BBNL 100 Base-T Single Port RJ45 Mag Jack Tab Up Green/Yellow Led

Name: Pulse J1026F01PNL Compatible LINK-PP LPJ1026BBNL 100 Base-T Single Port RJ45 Mag Jack Tab Up Green/Yellow Led
Brand: LINK-PP
SKU: 117555
Price: 2.56 USD
Availability: InStock
Rating: 5 (84 reviews)

Product: Pulse J1026F01PNL Compatible LINK-PP LPJ1026BBNL 100 Base-T Single Port RJ45 Mag Jack Tab Up Green/Yellow Led
SKU: 117555
P/N: LPJ1026BBNL
Price: $ 2.56
Stock: 7576 in Stock
Sold: 6.7K
Product URL: https://www.l-p.com/products/433681.htm

84 Reviews

0 Questions

6.7KSold

Unit price $ 2.56

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJ1026BBNLSKU: 117555

Compatible with Pulse J1026F01PNLDatasheet 3D Model Test report All downloads

Compatible:: Pulse

Compatible P/N:: J1026F01PNL

Volume pricing Online tiers · larger qty or custom price on request

$ 2.560

1–99 pcs

$ 2.097

100–599 pcs

$ 1.841

600–1,199 pcs

$ 1.406

1,200–5,999 pcs

$ 1.202

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

7576 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 99.00 (transceivers & cages) / $ 600.00 (others)

Quantity:

SPQ 50

Total Price:

$ 2.56

Packaging Details

SPQ:50 pcs
Qty/carton:1000 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.009 kg
G.W/carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Pulse J1026F01PNL Compatible LINK-PP LPJ1026BBNL 10/100 Base-T RJ45 Mag Jack for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Yellow Led)

The LPJ1026BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.

LINK-PP Part Number:	LPJ1026BBNL	Pulse Part Number	J1026F01PNL
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	UP	Cores per Port	6
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.530/13.45	Package Length (Inches/mm)	0.994/25.25
Package Width (Inches)	0.636/16.15	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJ1026BBNL.pdf
