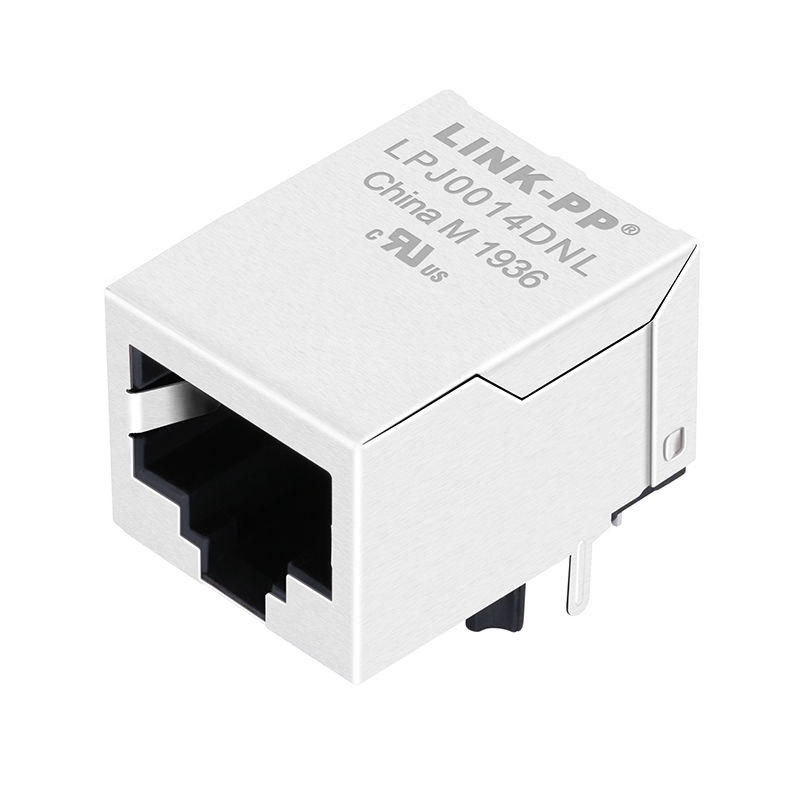

Bothhand LU1S041C LF Compatible LINK-PP LPJ0014DNL 10/100 Base-T Tab Down Without Led 1 Port Cat5e RJ 45 Jack Connectors

Name: Bothhand LU1S041C LF Compatible LINK-PP LPJ0014DNL 10/100 Base-T Tab Down Without Led 1 Port Cat5e RJ 45 Jack Connectors
Brand: LINK-PP
SKU: 117814
Price: 2.21 USD
Availability: InStock
Rating: 5 (5 reviews)

Product: Bothhand LU1S041C LF Compatible LINK-PP LPJ0014DNL 10/100 Base-T Tab Down Without Led 1 Port Cat5e RJ 45 Jack Connectors
SKU: 117814
P/N: LPJ0014DNL
Price: $ 2.21
Stock: 1018 in Stock
Sold: 11.2K
Product URL: https://www.l-p.com/products/432743.htm

For Order Over $ 1,000.00 Get $ 15.00 Off , Code: Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off , Code: Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off , Code: Linkpp100

New Users: $ 10.00 Coupon for Orders , Code: linkpp2610

5 Reviews

0 Questions

11.2K Sold

$ 2.21

Free shipping over $ 99.00 (transceivers & cages) / $ 600.00 (others). For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 2.205

100

$ 1.809

600

$ 1.588

1200

$ 1.213

6000

$ 1.037

Manufacture: LINK-PP P/N: LPJ0014DNL SKU: 117814

Compatible with Bothhand LU1S041C LF

Compatible:: LINK-PP; Bothhand; Hanrun

Compatible P/N:: KLU1S041C LF; LU1S041C LF

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

1018 in Stock .

Quantity:

Total Price:

$ 2.21

Packaging Details:

N.W/pcs: 0.007kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W/carton: 8.5kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Bothhand LU1S041C LF Compatible LINK-PP LPJ0014DNL 10/100 Base-T Cat5e RJ 45 Jack Connectors for Fieldbus System and Game Controller (1 Port, Tab Down, Without Led)

The LPJ0014DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Digital Camera and Game Controller.

LINK-PP Part Number:	LPJ0014DNL	Bothhand Part Number	LU1S041C LF
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Female Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJ0014DNL-Drawing.pdf Download
