Breadcrumb: Home; Products; Integrated RJ45 Connector; Single Port RJ45 Connector; 10/100 Base-T RJ45 Connector; 127767

Halo HFJ11-E2450E-L11RL Compatible LINK-PP LPJ4011GFNL 10/100 Base-T RJ45 LAN Transformer Tab Down Green/Green Led

Name: Halo HFJ11-E2450E-L11RL Compatible LINK-PP LPJ4011GFNL 10/100 Base-T RJ45 LAN Transformer Tab Down Green/Green Led
Brand: LINK-PP
SKU: 127767
Price: 2.29 USD
Availability: InStock
Rating: 5 (101 reviews)

Product: Halo HFJ11-E2450E-L11RL Compatible LINK-PP LPJ4011GFNL 10/100 Base-T RJ45 LAN Transformer Tab Down Green/Green Led
SKU: 127767
P/N: LPJ4011GFNL
Price: $ 2.29
Stock: 1659 in Stock
Sold: 11.9K
Product URL: https://www.l-p.com/products/430255.htm

101 Reviews

4 Questions

11.9KSold

Unit price $ 2.29

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJ4011GFNLSKU: 127767

Compatible with Halo HFJ11-E2450E-L11RLDatasheet 3D Model All downloads

Compatible:: Tyco; Halo; WE; LINK-PP

Compatible P/N:: HFJ11-E2450E-L11RL

Volume pricing Online tiers · larger qty or custom price on request

$ 2.290

1–99 pcs

$ 1.880

100–599 pcs

$ 1.651

600–1,199 pcs

$ 1.261

1,200–5,999 pcs

$ 1.078

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1659 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.29

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.007 kg
G.W./carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

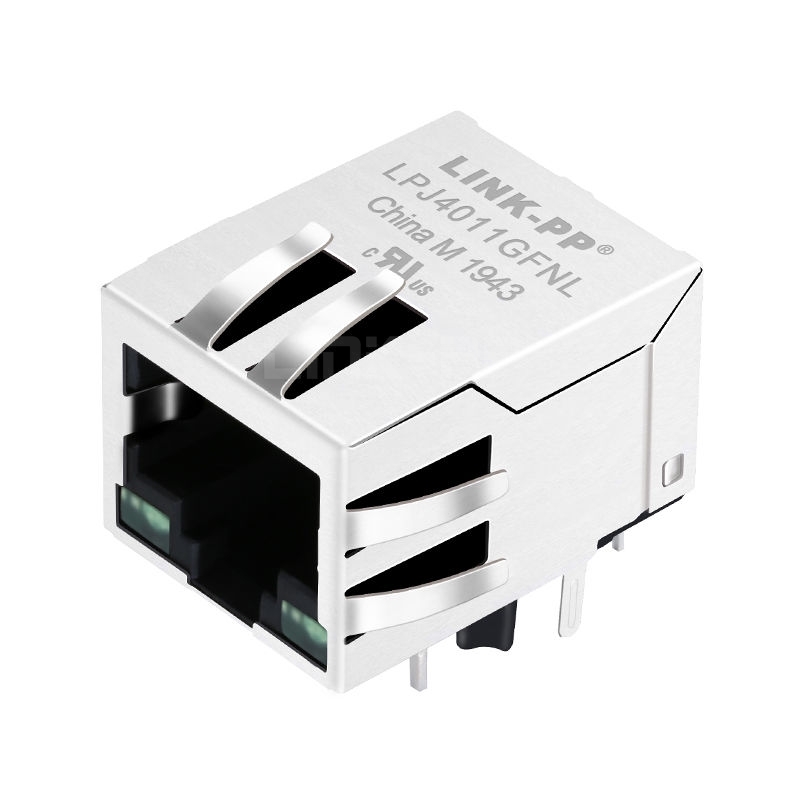

Halo HFJ11-E2450E-L11RL Compatible LINK-PP LPJ4011GFNL 10/100 Base-T RJ45 LAN Transformer for SMPS and Entrance Guard System (1X1 Port, Tab Down, Green/Green Led)

The LPJ4011GFNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, SMPS, Hub and Entrance Guard System.

LINK-PP Part Number:	LPJ4011GFNL	Halo Part Number	HFJ11-E2450E-L11RL
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Green
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
