halo hfjt1-rp44-l12rl compatible lpj3190aenl 10 100 base-t rj45 poe magjack with rectifier bridge tab up green yellow led
Click to open expanded view

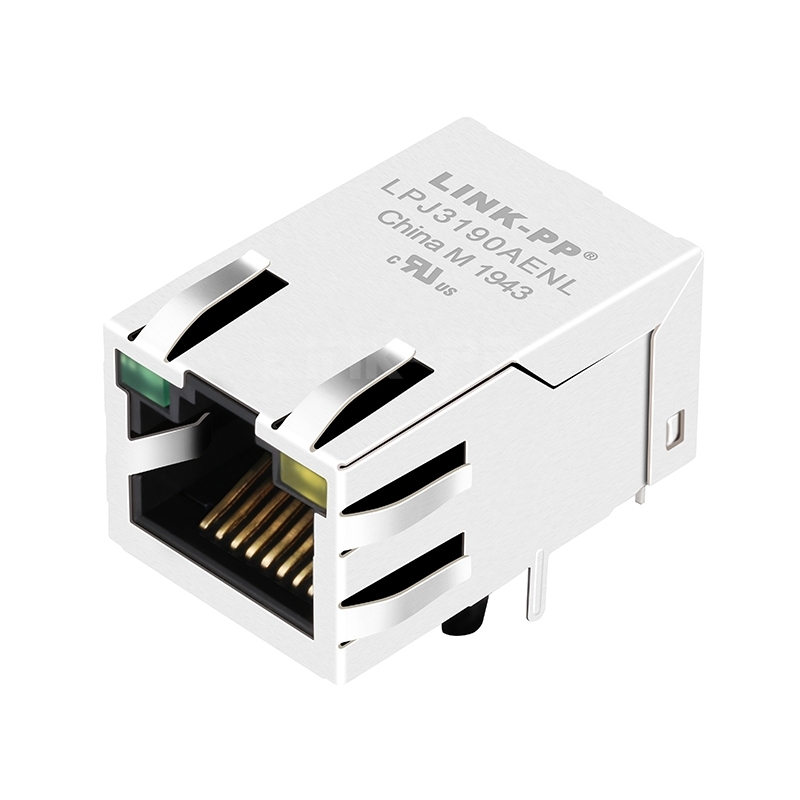

Halo HFJT1-RP44-L12RL Compatible LPJ3190AENL 10/100 Base-T RJ45 PoE MagJack With Rectifier Bridge Tab Up Green/Yellow LED

Product summary

Product
Halo HFJT1-RP44-L12RL Compatible LPJ3190AENL 10/100 Base-T RJ45 PoE MagJack With Rectifier Bridge Tab Up Green/Yellow LED
SKU
172355
P/N
LPJ3190AENL
Price
$ 4.41
Stock
897 in Stock
Sold
21.6K
Unit price $ 4.41
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ3190AENLSKU: 172355

Compatible with Halo HFJT1-RP44-L12RLDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
HFJT1-RP44-L12RL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.410
1–99 pcs
$ 3.615
100–599 pcs
$ 3.174
600–1,199 pcs
$ 2.425
1,200–5,999 pcs
$ 2.072
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
897 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.41
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Halo HFJT1-RP44-L12RL Compatible LINK-PP LPJ3190AENL 10/100 Base-T RJ45 MagJack for Monitoring System and Smart Meters (Rectifier Bridge, Single Port, Tab Up,Green/Yellow Led)


The LPJ3190AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.


LINK-PP Part Number:
LPJ3190AENL Halo Part Number
HFJT1-RP44-L12RL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.537/13.64Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
0.625/15.88Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier BridgeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ3190AENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The shell bonds to chassis at the panel, and the supply return is a separate conductor back to the source, so the two should not be treated as the same net. Tying them together at the jack can put return current on the shield and that shows up as noise on long runs. Our board keeps chassis and supply return apart until a single defined point near the entry. Follow the equipment grounding scheme rather than whatever is convenient at the connector. by LINK-PP Technical Support
  • A:
    The centre taps on the cable side become the feed, so they go to the source controller through the magnetics, while the PHY side stays with the reference network from the silicon vendor. Keep those two paths distinct in the layout; the supply traces carry real current and should not be run as if they were signal pairs. We followed the reference schematic for the controller and checked the voltage at the far end under full load before shipping. by LINK-PP Technical Support
  • A:
    The published compliance is the af class, which is roughly thirteen watts at the powered device after cable loss, so an at class camera asking for more is outside what this jack is rated to pass. The source and the endpoint negotiate the class before any current flows, and an undersized request should simply be refused rather than browning out the link. Plan the budget from the source, the cable length and the device together, not from the jack alone. by LINK-PP Technical Support
  • A:
    It makes the powered side indifferent to which way the supply arrives on the spare pairs or the data pairs. Without it, swapping the two conductors can leave a device dark even though the data link still comes up, which is a frustrating fault to chase in the field. We have had installers mix the pair order on a long run and the endpoint still booted. The bridge costs a little voltage drop, so include that in the budget at the far end. by LINK-PP Technical Support

Customer Reviews

  • 5

    85 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (85)
No data
A***k
Verified Purchase
5.0
2026-11-14
13.64 mm high and 15.88 mm across, which fitted the pole box we already had. The second order arrived with better packing.
Y***d
Verified Purchase
5.0
2026-06-17
LPJ3190AENL, powered with a bridge. It matched the drawing on every pair.
R***h
Verified Purchase
5.0
2026-01-06
PoE in, rectified on the board. The contacts came up within spec.
G***r
Verified Purchase
5.0
2025-08-24
Green one side, yellow the other, latch up. The plug seats flush, as described.
P***w
Verified Purchase
5.0
2025-06-08
Eight contacts and four cores behind them. It cleared hipot first try.
