LINK-PP LS-BL31551G-02C SFP 1.25G BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1310nm-TX/1550nm-RX, 2km, LC, DOM)The LS-BL31551G-02C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 2km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics

LINK-PP LS-BL55311G-02C SFP 1.25G BiDi Simplex LC/UPC SMF Optical Transceiver Module(SMF, 1550nm-TX/1310nm-RX, 2km, DOM)The LS-BL55311G-02C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 2km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics

LINK-PP LS-BL49551G-A6I SFP 1.25G BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1490nm-TX/1550nm-RX, 160km, DOM,, Industrial)The LS-BL49551G-A6I SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 160km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital

LINK-PP LS-BL315501-15C SFP 155Mbps BiDi DOM Simplex Optical Transceiver Module(SMF, 1310nm-TX/1550nm-RX, 15km, LC, DOM)The LS-BL315501-15C SFP transceivers are high performance, cost effective modules supporting data rate of 125Mbps/155Mbps and 15km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics

LINK-PP LS-BL312725-40I 25G SFP28 BiDi Simplex LC/UPC SMF Optical Transceiver Module for Data Center and Telecom(SMF,1310nm-TX/1270nm-RX,40km,DOM, Industrial)The LS-BL312725-40I SFP28 BIDI optical Transceiver integrates receiver and transmitter path on one module. In the transmit side,one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption.The product is designed with form

LINK-PP LS-BL273125-40I 25G SFP28 BiDi Simplex LC/UPC SMF Optical Transceiver Module for Data Center and Telecom(SMF,1270nm-TX/1310nm-RX,40km,DOM,Industrial)The LS-BL273125-40I SFP28 BIDI optical Transceiver integrates receiver and transmitter path on one module. In the transmit side,one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption.The product is designed with form factor,

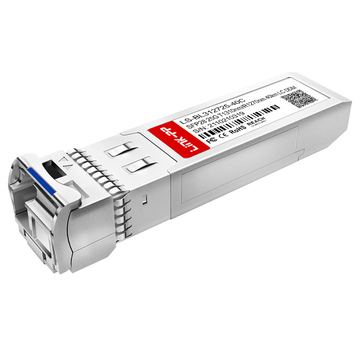

LINK-PP LS-BL312725-40C 25G SFP28 BiDi Simplex LC/UPC SMF Optical Transceiver Module for Data Center and Telecom(SMF,1310nm-TX/1270nm-RX,40km,DOM)The LS-BL312725-40C SFP28 BIDI optical Transceiver integrates receiver and transmitter path on one module. In the transmit side,one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption.The product is designed with form factor,

LINK-PP LS-BL273125-40C 25G SFP28 BiDi Simplex LC/UPC SMF Optical Transceiver Module for Data Center and Telecom(SMF,1270nm-TX/1310nm-RX,40km,DOM)The LS-BL273125-40C SFP28 BIDI optical Transceiver integrates receiver and transmitter path on one module. In the transmit side,one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption.The product is designed with form factor,

LINK-PP LQ-BLB100-ZR4C 100G QSFP28 BiDi 80km Optical Transceiver Module for Ethernet and Data Center (SMF, 1270nm-TX/1310nm-RX, LC, DOM)Product Features:Support line rates from 103.125 Gb/sLane bit rate 25.78 Gb/s 100GEUp to 80km transmission with KR4-FECLAN WDM EML laser and PIN receiver with SOASupport Multi-Pin function with IntL/RxLOSL and LPMode/TxDISHigh speed I/O electrical interface (CAUI-4)I2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorOperating case temperature: 0℃ to 70℃Single +3.3V power supplyPower dissipationCommercial：&

LINK-PP LQ-BLA100-ZR4C 100G QSFP28 BiDi 80km Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm-TX/1270nm-RX , LC, DOM)Product Features:Support line rates from 103.125 Gb/sLane bit rate 25.78 Gb/s 100GEUp to 80km transmission with KR4-FECLAN WDM EML laser and PIN receiver with SOASupport Multi-Pin function with IntL/RxLOSL and LPMode/TxDISHigh speed I/O electrical interface (CAUI-4)I2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorOperating case temperature: 0℃ to 70℃Single +3.3V power supplyPower

LINK-PP LQ-BLB100-LRC 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1331nm-TX/1271nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 10km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <3.5 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100

LINK-PP LQ-BLA100-LRC 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1271nm-TX/1331nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 10km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <3.5 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100

LINK-PP LQ-BLB100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1311nm-TX/1291nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 20km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <4 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100G-

LINK-PP LQ-BLA100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1291nm-TX/1311nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 20km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <4 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100G-

LINK-PP LQ-BLB100-ERC 100G QSFP28 BiDi 40km Optical Transceiver Module for Ethernet and Data Center (SMF, 1309.14nm-TX/1304.58nm-RX, LC, DOM)Product Features:Supports 100GBASE-ER BIDI;Lane signaling rate 106.25 Gb/s with PAM4;Up to 40km transmission on SMF;EML TOSA and APD ROSA;4x25.78Gb/s with NRZ electrical interface (CAUI-4);High speed I/O electrical interface ;I2C interface with integrated Digital Diagnostic monitoring;QSFP28 MSA package with simplex LC connector;Single +3.3V power supply;Maximum power consumption 4.5 W;Operating case temperature: 0 to +70 °C;Compliant to 802.3cu, SFF-

LINK-PP LQ-BLA100-ERC 100G QSFP28 BiDi 40km Optical Transceiver Module for Ethernet and Data Center (SMF, 1304.58nm-TX/1309.14nm-RX, LC, DOM)Product Features:Supports 100GBASE-ER BIDI;Lane signaling rate 106.25 Gb/s with PAM4;Up to 40km transmission on SMF;EML TOSA and APD ROSA;4x25.78Gb/s with NRZ electrical interface (CAUI-4);High speed I/O electrical interface ;I2C interface with integrated Digital Diagnostic monitoring;QSFP28 MSA package with simplex LC connector;Single +3.3V power supply;Maximum power consumption 4.5 W;Operating case temperature: 0 to +70 °C;Compliant to 802.3cu, SFF-
