SFP Fiber Cable Technical Basics: Types & Selection Tips

As modern networks continue to scale in speed, capacity, and complexity, fiber-optic connectivity has become a foundational element of reliable data transmission. Among the many optical interconnection solutions available today, SFP fiber cables play a critical role in bridging optical transceivers and network devices. Designed to work seamlessly with Small Form-factor Pluggable (SFP) modules, these fiber cables enable flexible, high-performance links across data centers, enterprise networks, and telecommunication infrastructures.

Compared with traditional copper-based connections, SFP fiber cables offer clear advantages in terms of bandwidth, transmission distance, and resistance to electromagnetic interference (EMI). They support both single mode and multimode fiber types, accommodate multiple connector formats, and can be deployed in various configurations such as simplex, duplex, or active optical cables (AOC). This versatility makes SFP fiber cables a preferred choice for network architects seeking scalable and future-ready optical solutions.

This article provides a comprehensive overview of SFP Fiber Cable technical basics, covering how they work, their typical types, connector options, and real-world use cases. It also explores key factors to consider when selecting the right SFP fiber cable, offers practical guidance for network planning, and includes troubleshooting and maintenance tips. Whether you are designing a new network or optimizing an existing one, this guide aims to help you make informed decisions when choosing the right SFP fiber cable for your network application.

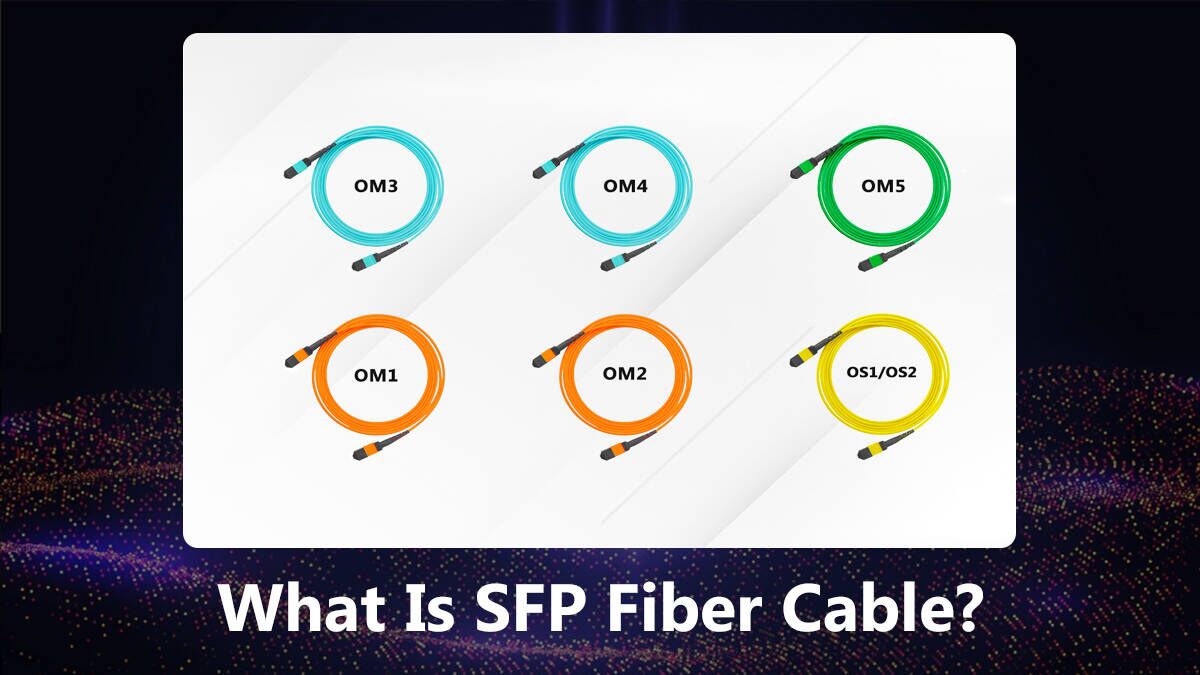

✳️ What Is SFP Fiber Cable

SFP fiber cable is the optical cabling medium used to connect an SFP transceiver module port to another optical interface for high-speed data transmission. In practical deployments, it determines link reach, connector compatibility, and optical signal integrity between network devices.

Definition of SFP Fiber Cable

An SFP fiber cable is not the SFP transceiver itself, but the cable that connects to it. It’s a fiber optic patch cord fitted with connectors that interface with the ports on SFP optical transceivers (such as SFP 1G, SFP+ 10G, SFP28 25G, QSFP+ 40G, and QSFP28 100G). At its core is a fiber strand made of glass or silica, encased in cladding and a protective outer jacket. The cable is characterized by its connector type, fiber mode, and performance specifications, all of which must be compatible with the SFP module it connects to.

The Role of SFP Fiber Cable in Network

In network architecture, an SFP fiber cable serves as the optical transmission medium that physically connects two transceiver endpoints. It forms the optical channel between SFP modules and plays a key role in preserving signal integrity. By maintaining low insertion loss and stable optical return loss, the fiber cable helps ensure the transceivers operate within the intended optical power budget, including transmit output power and receiver sensitivity thresholds.

SFP fiber cables have a direct impact on network performance in several areas:

• Transmission Distance & Coverage: The cable type (single mode or multimode) defines how far data can travel. Single mode supports long-distance links, while multimode suits short, high-throughput connections.
• Port Density & Thermal Design: Compact LC connectors allow high port density on switches, while fiber cables generate less heat and reduce EMI, improving cooling efficiency.
• Stability & Reliability: Quality SFP fiber cables maintain low signal loss and consistent performance, ensuring reliable data transmission.

How Does SFP Fiber Cable Work

SFP fiber cables transmit optical signals through light pulses generated and received by SFP transceivers. Each strand of fiber carries light in one direction—one for transmitting (TX) and the other for receiving (RX). In duplex configurations, both fibers work simultaneously to achieve bidirectional data flow.

The light signals travel through the fiber core via total internal reflection, ensuring minimal attenuation even across long distances. The SFP transceiver converts electrical signals from the network device into optical form for transmission, and vice versa upon reception. This conversion and transmission process allow SFP fiber cables to deliver reliable, high-speed communication in environments where copper cables cannot meet the bandwidth or distance demands.

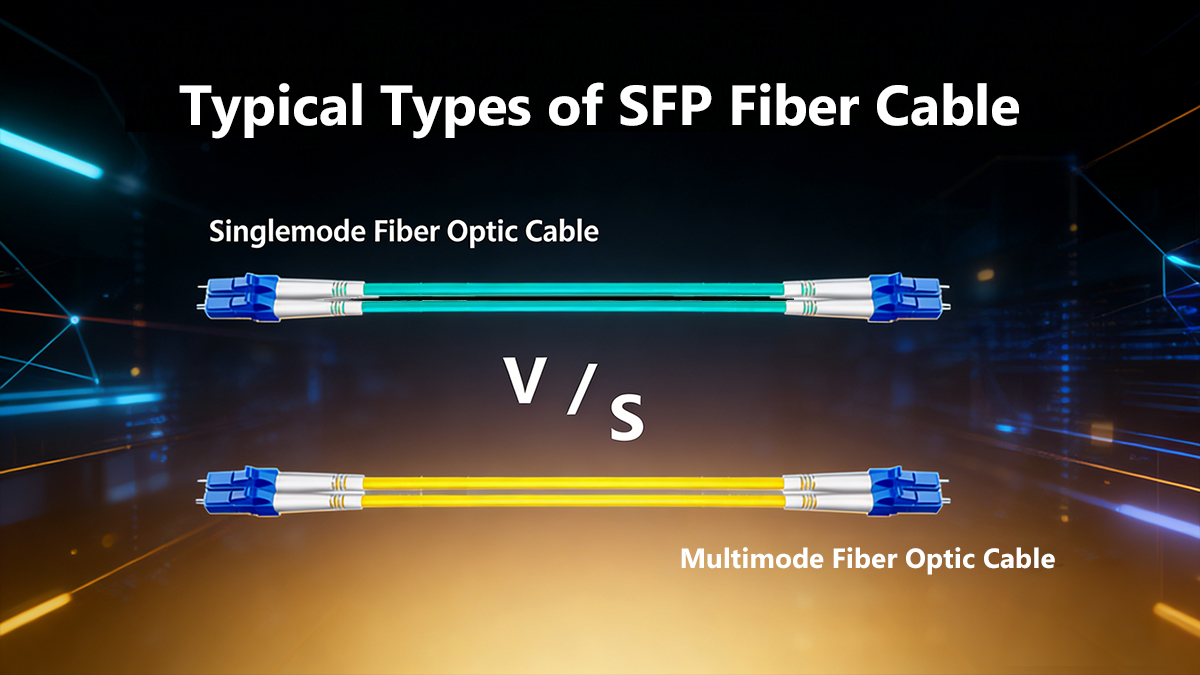

✳️ Typical Types of SFP Fiber Cable

SFP fiber cables come in multiple forms, each designed to match different transmission distances, bandwidth requirements, and cabling architectures. Understanding the most common types helps you quickly narrow down the right option for your network design and optical transceiver setup.

Single Mode vs. Multimode Fiber Optic Cable

Singlemode and multimode are the two most fundamental fiber categories used with SFP optical modules. The key difference lies in how light propagates through the fiber core, which directly affects achievable distance, performance stability, and deployment cost.

Singlemode fiber cables are preferred for long-distance transmission (campus networks, telecom, long backbone links). Multimode fiber cables are widely used for short-reach, high-density environments like data centers due to lower overall optics cost.

The table below shows a comparison of single mode and multimode fiber optic cable features.

Simplex vs. Duplex Fiber Patch Cable

Beyond fiber mode, SFP fiber cables are also categorized by how many fiber strands are used to transmit and receive signals. Simplex means one fiber strand (one direction at a time, or bidirectional over one fiber). Duplex means two fiber strands (one for TX, one for RX).

Most traditional SFP optical links use duplex fiber, while simplex is commonly used with BiDi SFP modules, where transmit and receive signals travel on the same fiber using different wavelengths.

The following table highlights the main differences between simplex and duplex fiber patch cables.

Active Optical Cable (AOC)

The Active Optical Cable (AOC) is an integrated optical assembly that combines the fiber cable and transceivers into one plug-and-play solution. Instead of buying separate SFP modules and fiber patch cords, you use a single AOC with SFP/SFP+ connectors already built in on both ends.

LINK-PP offers a range of AOC solutions designed for high-speed data transmission and efficient deployment. These cables deliver outstanding performance and reliability with the following advantages:

• Flexible Breakout Configuration: It supports multiple high-density architectures, including QSFP28 – 4×SFP28, QSFP56 – 2×QSFP28, QSFP-DD – 4×QSFP28. These configurations enable efficient port expansion and smooth migration to higher-speed networks.
• Low Latency Performance: Optimized optical and electrical design minimizes transmission delay, making them well-suited for latency-sensitive environments such as cloud computing, AI clusters, and high-frequency trading networks.
• Low Bit Error Rate (BER): Factory pre-tested assemblies ensure stable signal transmission with consistently low BER, improving overall link reliability and reducing troubleshooting effort.
• Excellent Electromagnetic Interference (EMI) Suppression: Optical signal transmission provides superior resistance to EMI, ensuring consistent performance in high-density racks and electrically noisy data center environments.

✳️ Different Connector Types for SFP Fiber Cable

SFP fiber cables support multiple connector types, each designed to meet specific requirements for port density, mechanical stability, and network environments. Selecting the appropriate connector type ensures reliable optical performance, physical compatibility with SFP modules, and efficient cable management.

LC Connector

The LC (Lucent Connector) is the most widely used connector type for SFP fiber cables due to its compact form factor and high port density support. Featuring a 1.25mm ferrule—half the size of traditional SC connectors—the LC connector is particularly suitable for SFP transceivers used in data centers and high-density switch environments. LC connectors are typically used in duplex configurations for bidirectional transmission and offer a secure latch mechanism to prevent accidental disconnection.

SC Connector

The SC (Subscriber Connector) uses a 2.5mm ferrule and a push-pull locking mechanism, providing stable optical alignment and low insertion loss. Although bulkier than LC connectors, SC connectors are still commonly found in legacy SFP deployments and enterprise backbone networks. SFP fiber cables terminated with SC connectors are often used in scenarios where port density is not a primary concern, but robustness and ease of manual handling are important, such as wiring closets or distribution frames.

FC Connector

The FC (Ferrule Connector) is distinguished by its threaded coupling mechanism, which ensures excellent mechanical stability and resistance to vibration. This makes FC connectors suitable for SFP fiber cable applications in industrial environments or telecom facilities where physical disturbances may affect connection integrity. While less common in modern data center SFP deployments, FC connectors are still used in long-distance single mode links and test or measurement systems that require precise fiber alignment and minimal signal reflection.

ST Connector

The ST (Straight Tip) connector employs a bayonet-style twist-lock design and a 2.5mm ferrule, historically popular in early fiber optic networks. In SFP fiber cable applications, ST connectors are mainly encountered in legacy systems or specialized installations rather than new network builds. Although ST connectors are easy to install and remove, their larger size and lower port density compared to LC connectors limit their practicality in modern SFP-based switching equipment.

✳️ Use Cases for SFP Fiber Cable

SFP fiber cables are widely used to provide flexible, high-performance optical links across different network layers and environments. Their modular design allows network engineers to adapt cable types and fiber modes to specific distance, bandwidth, and deployment requirements.

Data Center Interconnections

In data centers, SFP fiber cables are primarily used for short- to medium-range interconnections between switches, servers, and storage systems. Multimode SFP fiber cables (such as OM3 or OM4) are commonly deployed for intra-rack and inter-rack connections supporting 10G or 25G Ethernet, where distances typically remain under 300m. For data center interconnects (DCI) spanning buildings or campuses, single mode SFP fiber cables paired with SFP LR or ER modules enable stable transmission over tens of kilometers while maintaining low latency and minimal signal loss.

Enterprise Network Infrastructure

Within enterprise networks, SFP fiber cables are often used to connect access switches to aggregation or core switches across office floors or buildings. Single mode SFP fiber cables are preferred in large campus networks where longer distances and future bandwidth scalability are required, while multimode fiber cables are suitable for shorter backbone links within the same building. SFP fiber cables also support modular upgrades, allowing enterprises to change data rates or transmission distances by replacing transceivers without rewiring the entire fiber link.

Telecommunications and ISP Networks

Telecommunications operators and ISPs rely on SFP fiber cables for metro access networks, base station backhaul, and aggregation links. Single mode SFP fiber cables dominate these scenarios due to their ability to support long-distance transmission and higher optical budgets. In fiber-to-the-node (FTTN) or fiber-to-the-building (FTTB) deployments, SFP fiber cables provide a standardized interface between optical line terminals (OLTs), routers, and transmission equipment, ensuring compatibility with various optical modules and network standards.

Industrial and Smart City Applications

In industrial automation, transportation systems, and smart city networks, SFP fiber cables withstand harsh environmental conditions and electromagnetic interference. They link control units, IoT gateways, and surveillance systems, ensuring uninterrupted communication in areas with heavy machinery or wide coverage. Ruggedized SFP cables with enhanced sheathing and strong connectors (often FC or SC types) are used to maintain stable operation in vibration-prone or outdoor installations.

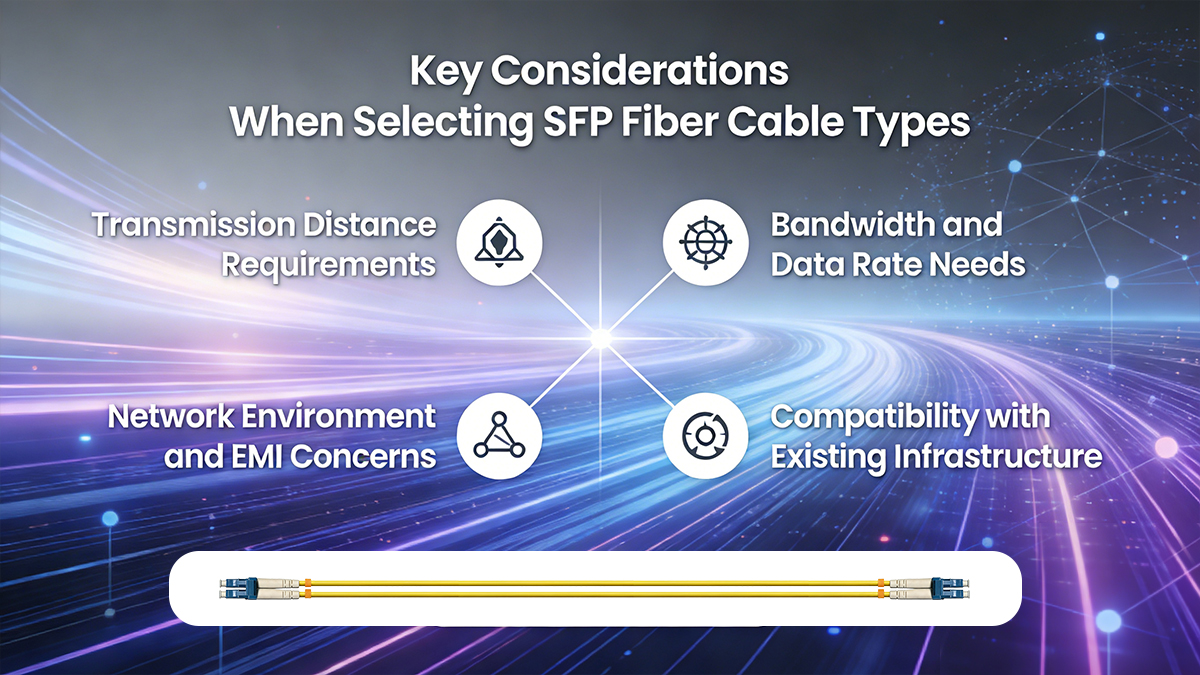

✳️ Key Considerations When Selecting SFP Fiber Cable Types

Choosing the right SFP fiber cable type is not only about connector shape or cable price—it directly impacts link stability, performance headroom, and long-term scalability. The best selection comes from matching cable type to distance, speed, environment, and existing network standards.

Transmission Distance Requirements

Transmission distance should be the first filter when selecting SFP fiber cable types, because it determines fiber mode and optical module class. Short links inside racks favor multimode, while longer campus or metro runs typically require OS2 single mode to avoid attenuation limits.

Bandwidth and Data Rate Needs

Bandwidth planning must consider both your current data rate and future upgrades, since fiber choice can create bottlenecks. OM3/OM4 multimode supports high-speed short-reach links, while single mode provides broader upgrade flexibility for 10G/25G/40G/100G deployments over long-reach links.

Network Environment and EMI Concerns

Environmental conditions and electromagnetic interference (EMI) levels influence cable type selection. In high-EMI areas or industrial sites, fiber cables outperform copper by ensuring data integrity and signal isolation, while armored or ruggedized designs add protection against mechanical stress and harsh temperatures.

Compatibility with Existing Infrastructure

Compatibility checks prevent expensive rework, especially when upgrading only part of the network. Confirm connector types (LC/SC), polarity requirements, patch panel interfaces, and whether the link uses simplex or duplex optics. Also, ensure the cable matches existing fiber grades and labeling practices.

✳️ How to Choose The Right SFP Fiber Cable for Your Network

Selecting the right SFP fiber optic cable is a structured process that starts from the deployment scenario and ends with validation against standards. A correct choice ensures stable optical performance, clean installation, and smooth upgrades without unexpected compatibility issues.

Identify Your Application Scenario

Start by defining where the SFP fiber cable will be deployed, such as rack-to-rack in a data center, building backbone links, or outdoor access networks. Document link length, patch panel layout, and equipment ports to avoid choosing cable types that exceed routing or reach limits.

Select the Correct Fiber Mode

Choose fiber mode based on both distance and transceiver optics, not cable availability. Multimode (OM3/OM4) is ideal for short-reach high-speed links, while single mode (OS2) supports longer runs with lower attenuation and better scalability for future bandwidth upgrades.

Consider Connector and Cable Structure

Match connector type to your SFP module and patch panel interfaces, with LC being the most common for SFP module deployments. Then choose the cable structure — simplex or duplex — based on transceiver design, polarity requirements, and whether your link needs separate TX/RX paths.

Verify Standards and Vendor Support

Confirm the cable meets relevant standards such as TIA/EIA and ISO/IEC performance requirements, including insertion loss and return loss specifications. Use reputable vendors that provide test reports, consistent fiber grade labeling, and verified compatibility with major SFP module manufacturers.

✳️ Troubleshooting and Maintenance Tips for SFP Fiber Cable

Proper troubleshooting and maintenance practices keep SFP fiber cables performing reliably over time. Regular inspection, cleaning, and timely replacement reduce signal loss, minimize downtime, and extend network component lifespan.

Common Connection and Signal Loss Issues

Typical SFP fiber issues include incorrect TX/RX polarity, mismatched fiber mode, loose LC connections, or using incompatible optics for the required reach. Also check for excessive bend radius, damaged ferrules, and high insertion loss that triggers link flaps or CRC errors.

Testing and Cleaning Fiber Connectors Properly

Fiber connectors must be inspected and cleaned before every connection using lint-free wipes and specialized cleaning tools. Contaminants, even microscopic dust, can severely impact optical performance. Follow standard procedures under IEC 61300-3-35 to maintain low insertion loss and stable transmission.

Routine Inspection and Replacement

Implement scheduled checks for connector wear, latch integrity, and cable strain at patch panels and switches. Track recurring error counters to spot degrading links early. Replace cables showing intermittent link drops, visible jacket damage, or abnormal loss measurements beyond acceptable thresholds.

✳️ FAQs about SFP Fiber Cable

As SFP fiber cables are widely used across data centers, enterprise networks, and telecom systems, users often encounter practical questions during planning and deployment. This section addresses common concerns related to performance, compatibility, and cable selection to help ensure reliable and efficient network operation.

How does SFP fiber cable type affect data transfer efficiency?

The fiber type directly impacts supported distance, bandwidth, and signal quality. Single-mode fiber enables higher efficiency over long distances, while multimode fiber is optimized for short-reach, high-density deployments. Using the correct fiber type ensures stable transmission and minimizes attenuation and errors.

Can I mix single mode and multimode SFP fiber cables in the same system?

Single mode and multimode SFP fiber cables cannot be directly mixed on the same optical link. Each requires matching SFP transceivers designed for its specific fiber core size and light source. Mixing them will result in signal mismatch and link failure.

What are the main benefits of duplex fiber optic cables?

Duplex fiber optic cables support simultaneous transmit and receive signals using two fibers. This allows full-duplex communication, which improves throughput and reduces latency. They are widely used in Ethernet and data center environments for stable bidirectional data flow.

Are simplex and duplex fiber optic cables compatible for interchangeable use?

Simplex and duplex fiber cables are not directly interchangeable without proper configuration. Simplex supports one-way transmission, while duplex supports two-way communication. Using specific transceiver designs may be required, depending on the network setup.

What advantages do AOC fiber cables offer to users?

AOC cables deliver superior performance through greater bandwidth, longer distances, lighter construction, and diminished signal noise. They are ideal for high-performance computing and data centers that need fast, high-capacity data transfer while maintaining interoperability.

How do AOC fiber cables perform when compared with standard copper cables?

AOC fiber cables provide better performance than standard copper cables in terms of bandwidth, transmission distance, and signal stability. They are immune to electromagnetic interference and generate less heat, making them well suited for high-speed, short-to-medium reach connections. Copper cables are typically limited in distance and data rate.

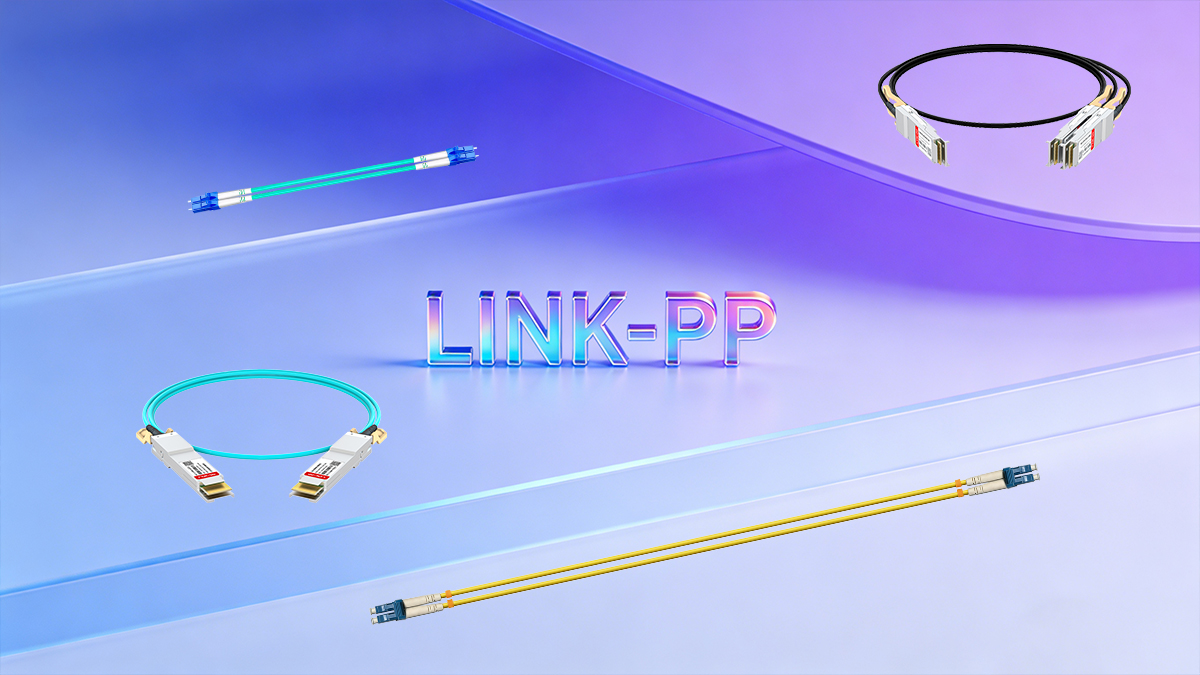

✳️ Conclusion: Which SFP Fiber Cable Is the Right Fit for You?

Choosing the right SFP fiber cable ultimately comes down to aligning your network’s technical requirements with the appropriate fiber type, connector, and structure. Factors such as transmission distance, bandwidth demands, deployment environment, and compatibility with existing SFP transceivers all play a decisive role. Multimode fiber is well-suited for short-reach, high-density data center links, while single mode fiber provides the scalability and reach needed for campus, metro, and telecom networks. Likewise, selecting between simplex, duplex, or integrated AOC solutions ensures your optical links remain efficient and stable.
