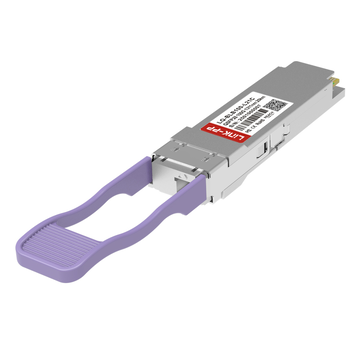

LINK-PP LQ-BLB100-L21C 100G QSFP28 Specifications The LINK-PP LQ-BLB100-L21C is a high-performance 100G BiDi QSFP28 optical transceiver designed for efficient single-fiber bidirectional networking. It features a 106.25Gb/s PAM4 optical signal rate alongside a 4x25.78Gb/s NRZ CAUI-4 electrical interface. With integrated KP4 FEC and a low power consumption of under 4W, this commercial-grade module ensures exceptional stability for high-density architectures. LINK-PP Part Number LQ-BLB100-L21C Vendor Name LINK-PP Form Factor QSFP28 Max Data Rate 106.25Gbps

LINK-PP LQ-BLA100-L21C 100G BiDi QSFP28 Specifications The LINK-PP LQ-BLA100-L21C is a premium 100G BiDi QSFP28 optical transceiver engineered for robust data center interconnects. Utilizing an advanced EML laser and PIN receiver, this module delivers 106.25Gb/s PAM4 signaling across single-mode fiber. It natively integrates KP4 FEC and features a CAUI-4 electrical interface, ensuring ultra-reliable connectivity with low power consumption. LINK-PP Part Number LQ-BLA100-L21C Vendor Name LINK-PP Form Factor QSFP28 Max Data Rate 106.25Gbps Wavelength

LINK-PP LQ-BLB100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1311nm-TX/1291nm-RX, LC, DOM)   Product Features: Lane signaling rate 106.25Gb/s with PAM4 Up to 20km transmission on SMF EML Laser and PIN receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) Support KP4 FEC inside the module High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Power consumption <4 W Compliant to SFF-8636&SFF-8679 standard

LINK-PP LQ-BLA100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1291nm-TX/1311nm-RX, LC, DOM)   Product Features: Lane signaling rate 106.25Gb/s with PAM4 Up to 20km transmission on SMF EML Laser and PIN receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4) Support KP4 FEC inside the module High speed I/O electrical interface I2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with simplex LC connector Single +3.3V power supply Power consumption <4 W Compliant to SFF-8636&SFF-8679 standard
