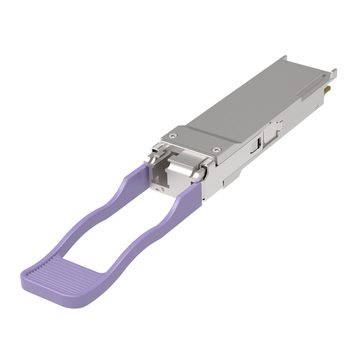

Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 BiDi 1311nm-TX/1291nm-RX 20km DOM Simplex LC SMF Optical Transceiver Module

Name: Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 BiDi 1311nm-TX/1291nm-RX 20km DOM Simplex LC SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 223810
Price: 2170.96 USD
Availability: InStock
Rating: 4.9 (11 reviews)

Product: Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 BiDi 1311nm-TX/1291nm-RX 20km DOM Simplex LC SMF Optical Transceiver Module
SKU: 223810
P/N: LQ-BLB100-L21C
Price: $ 2,467
Stock: 222 in Stock
Sold: 744
Product URL: https://www.l-p.com/products/494720.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

11 Reviews

5 Questions

744 Sold

$ 2,467

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 2,467

$ 2,392.99

100

$ 2,318.98

1000

$ 2,244.97

3000

$ 2,170.96

Manufacture: LINK-PP P/N: LQ-BLB100-L21C SKU: 223810

Compatible:: Cisco; LINK-PP; Arista; Dell; FS; Generic; HPE Aruba; Juniper; NVIDIA/Mellanox

Compatible P/N:: QSFP-100G-SR1.2 | 100m; QSFP-40/100-SRBD | 100m; QSFP-BX10-100G | 10km; QSFP-BX20-100G | 20km; QSFP-BX40-100G | 40km

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3 - 10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 Specifications

The Cisco QSFP-BX20-100G Compatible LINK-PP module is a high-performance 100G BiDi QSFP28 optical transceiver designed for efficient single-fiber bidirectional networking. It features a 106.25Gb/s PAM4 optical signal rate alongside a 4x25.78Gb/s NRZ CAUI-4 electrical interface. With integrated KP4 FEC and a low power consumption of under 4W, this commercial-grade module ensures exceptional stability for high-density architectures.

Cisco QSFP-BX20-100G Compatible LINK-PP 100G BiDi QSFP28 Specifications

Cisco Part Number	QSFP-BX20-100G	Vendor Name	LINK-PP
Form Factor	QSFP28	Max Data Rate	106.25Gbps
Wavelength	1311nm-TX/1291nm-RX	Max Cable Distance	20km
Connector	Simplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
Modulation (Electrical)	4x 25G-NRZ	Modulation (Optical)	1x 100G-PAM4
DDM/DOM	Supported	Operating Temperature Range	0°C to +70°C
Protocols	QSFP28 MSA	Warranty	5 Years

Key Features of Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28

This robust 100GBASE-LR1 BiDi single-mode fiber transceiver delivers high-speed connectivity while cutting cabling infrastructure costs in half. Easily identifiable by its red pull tab, it seamlessly integrates advanced EML laser technology and PIN receivers to guarantee superior optical signal integrity across demanding data center interconnects.

Cisco QSFP-BX20-100G Compatible LINK-PP 100G BiDi QSFP28 Optical Module

Engineered for next-generation networks, this 100G bidirectional optical module is fully compliant with 100G Lambda MSA specifications. It provides an innovative approach to scaling bandwidth capacity efficiently without the need to deploy additional expensive fiber optic cables.

QSFP-BX20-100G: 100G Connectivity for Edge Data Center

Addressing the high-capacity needs of edge data center networking, this transceiver is an ideal choice for localized 100G DCI solutions and enterprise backhaul. Its robust architecture guarantees seamless and uninterrupted data flow across modern cloud computing environments.

QSFP-BX20-100G Module with 1311nm-TX and 1291nm-RX Wavelength

Utilizing advanced WDM technology, this device operates using a precise 1311nm transmitter paired with a sensitive 1291nm receiver. This specific wavelength configuration requires pairing with the complementary purple-latched BLA module to establish a complete synchronized communication link.

QSFP-BX20-100G Module Supporting 20km Transmission

Built for extended reach, this long-reach 100G optics solution seamlessly supports up to 20km SMF transmission distances. It easily bridges geographically separated facilities, ensuring reliable and high-fidelity long-haul data transport for metropolitan area network expansions.

QSFP-BX20-100G Module with Simplex LC Interface

Featuring a standard simplex LC connector, this hardware simplifies single-fiber networking deployments. Network administrators can quickly plug in standard LC patch cords, maximizing existing cabling infrastructure efficiency while significantly reducing physical space requirements within high-density server racks.

QSFP-BX20-100G Module with DOM for Real-Time Monitoring

Integrated Digital Optical Monitoring through a standard I2C interface empowers administrators with real-time optical transceiver DOM capabilities. Network operators can accurately track temperature, voltage, laser bias current, and optical power levels to preemptively identify potential system anomalies.

Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 Certification

Industry-leading optical module compliance is guaranteed through strict adherence to global regulatory standards. Every unit is engineered to meet critical safety, environmental, and performance benchmarks worldwide.

QSFP-BX20-100G Quality Testing Program

A comprehensive factory quality assurance program governs our transceiver reliability testing. We subject every module to intensive automated verification to ensure zero defects before final packaging.

QSFP-BX20-100G Quality Certifications

This product holds globally recognized CE, FCC, UKCA, UL, and REACH approvals. Furthermore, it utilizes RoHS compliant optics to ensure environmentally responsible and safe manufacturing practices.

QSFP-BX20-100G Certified for Reliable Host-Device Compatibility

As a fully MSA compliant transceiver adhering to SFF-8636 protocols, it delivers flawless multi-vendor interoperability. This ensures plug-and-play compatibility across a wide range of branded switches and routers.

Rigorous Testing Ensures Reliable QSFP28 Performance

Advanced optical performance validation processes are executed in our labs, ensuring every QSFP28 module maintains peak operational integrity under high-demand network traffic.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Precise wavelength stability is confirmed to prevent signal overlap and ensure optimal laser functioning.

Eye Pattern Test

Detailed mask margin analysis validates PAM4 signal integrity for distortion-free high-speed data transmission.

Bit Error Rate Test

Long-duration stress testing verifies zero packet loss and confirms the reliability of onboard FEC.

Temperature Test

Modules undergo cyclical thermal evaluation to guarantee commercial thermal tolerance from 0°C to 70°C.

Product Shipping for Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28

We utilize a highly secure optical module distribution network, ensuring your mission-critical networking hardware arrives quickly and safely at any global destination.

Anti-Static Protective Packaging

Specialized ESD safe transit bags prevent electrical damage during manual handling.

Shock-Resistant Transport Protection

Custom-molded secure foam packaging shields delicate optics from unexpected impact drops.

Fast Order Processing and Dispatch

Streamlined warehouse operations guarantee expedited warehouse fulfillment for urgent hardware upgrades.

Global Logistics and International Delivery

We partner with top carriers for reliable worldwide courier shipping solutions.

Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 Usage Demonstration

Deploying this hot-swappable optical module is incredibly straightforward. Simply insert the transceiver into a compatible QSFP28 port, engage the red latch, connect your simplex single-mode fiber, and the system will automatically initialize the link within ten seconds.

QSFP-BX20-100G Technical Support

LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.

Pre-Sales Technical Consultation

Professional technical guidance to help customers select the most suitable QSFP-BX20-100G modules based on network architecture and application requirements.

Compatibility Verification Support

Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.

Deployment & Installation Assistance

Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.

Cisco QSFP-BX20-100G Compatible LINK-PP 100G QSFP28 After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Model Comparison Table

	Current Model QSFP-BX20-100G	QSFP-BX10-100G	QSFP-BX40-100G	QSFP-BX20-100G	QSFP-BX10-100G	QSFP-BX40-100G

Compatible	Cisco	Cisco	Cisco	Cisco	Cisco	Cisco
Data Rate (Max)	106.25Gbps	106.25Gbps	106.25Gbps	106.25Gbps	106.25Gbps	106.25Gbps
Wavelength	1311nm-TX/1291nm-RX	1331nm-TX/1271nm-RX	1309.14nm-TX/1304.58nm-RX	1291nm-TX/1311nm-RX	1271nm-TX/1331nm-RX	1304.58nm-TX/1309.14nm-RX
Connector	Simplex LC	Simplex LC	Simplex LC	Simplex LC	Simplex LC	Simplex LC
Cable Distance (Max)	20km	10km	40km	20km	10km	40km
Cable Type	SMF	SMF	SMF	SMF	SMF	SMF
Operating Temperature	0°C to +70°C	0°C to +70°C	0°C to +70°C	0°C to +70°C	0°C to +70°C	0°C to +70°C
Vendor Name	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Form Factor	QSFP28	QSFP28	QSFP28	QSFP28	QSFP28	QSFP28
Transmitter Type	EML	EML	EML	EML	EML	EML
Receiver Type	PIN	PIN	APD	PIN	PIN	APD
Modulation (Electrical)	4x 25G-NRZ	4x 25G NRZ	4x 25G-NRZ	4x 25G-NRZ	4x 25G NRZ	4x 25G-NRZ
Modulation (Optical)	1x 100G-PAM4	1x 100G PAM4	1x 100G-PAM4	1x 100G-PAM4	1x 100G PAM4	1x 100G-PAM4
DDM/DOM	Supported	Supported	Supported	Supported	Supported	Supported
Protocols	QSFP28 MSA	QSFP28 MSA, SFF-8636, IEEE 802.3bs, CAUI-4	QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA	QSFP28 MSA	QSFP28 MSA, SFF-8636,IEEE 802.3bs , CAUI-4	QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LQ-BLB100-L21C.pdf Download

Questions & Answers
Ask a Question

No data

Q: Which exact fiber patch cord and paired module do I need to establish a working 100G link? By D***n on 2025-11-22

A: This module uses a Simplex LC connector over standard single-mode fiber (SMF / OS2 9/125μm) up to 20km. Since this unit transmits at 1311nm and receives at 1291nm (Red pull tab), the opposite end of the fiber strand must be equipped with the complementary LQ-BLA100-L21C module (1291nm-TX / 1311nm-RX, Purple pull tab) to establish a synchronized bidirectional link. By admin on 2025-11-22
Q: How does the optical performance and packet error rate of this BiDi optic compare against original brand 100GBASE-BX20 modules? By D***g on 2025-06-19

A: This module delivers identical carrier-grade performance to OEM equivalents. Equipped with an industry-grade 1311nm EML transmitter, high-sensitivity PIN receiver, integrated DSP with KP4 FEC, and power consumption under 4W, it guarantees zero-packet-loss transmission over 20km single-mode fiber at a fraction of the OEM cost. By admin on 2025-06-19
Q: Can this QSFP28 BiDi optic operate in harsh outdoor telecom cabinets, or is an industrial wide-temperature version available? By C***n on 2025-05-02

A: The standard LQ-BLB100-L21C is rated for commercial operating temperatures (0°C to +70°C). If you are deploying in non-climate-controlled outdoor enclosures or 5G cell tower base stations, please contact our engineering team to request the industrial wide-temperature version (-40°C to +85°C). By admin on 2025-05-02
Q: Does this transceiver comply with international telecommunications and environmental standards? By E***l on 2025-04-24

A: Yes, the module complies with IEEE 802.3cd/100GBASE-LR1, QSFP28 MSA, and SFF-8636 management specifications. It is fully certified under CE, FCC, RoHS, and REACH directives, meeting Class 1 Laser Safety standards (IEC 60825-1). By admin on 2025-04-24
Q: Can this LQ-BLB100-L21C module interoperate smoothly between a Cisco Nexus switch on one end and an Arista or Juniper switch on the other? By E***n on 2024-12-30

A: Yes. The module is engineered in full compliance with QSFP28 MSA and 100G Lambda MSA standards. We offer custom EEPROM vendor coding for Cisco, Arista, Juniper, Dell, Mellanox/NVIDIA, and Generic platforms to guarantee 100% host recognition, DDM functionality, and seamless cross-platform optical interoperability. By admin on 2024-12-30
