LINK-PP LQ-BL859140-SRC 40G QSFP+ BiDi Hot Pluggable Optical Transceiver Module(MMF, 850/910nm, 100m, Duplex LC )The LQ-BL859140-SRC is a Four-Channel Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

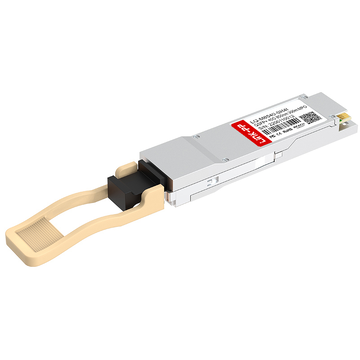

LINK-PP LQ-M8540-SR4I QSFP+ 40GBASE-SR4 MPO-12/UPC Optical Transceiver Module(MMF, 850nm, 150m, DOM, Industrial)The LQ-M8540-SR4I QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters.

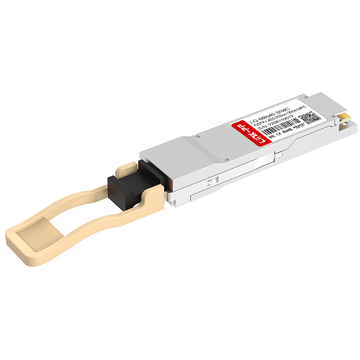

LINK-PP LQ-M8540-SR4C QSFP+ 40GBASE-SR4 MPO-12/UPC Optical Transceiver Module(MMF, 850nm, 150m, DOM)The LQ-M8540-SR4C QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. At the same time, it is completely interoperable with all standard 40GBASE-SR4 interfaces. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With its

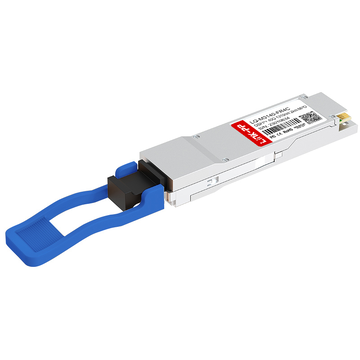

LINK-PP LQ-M3140-LR4C QSFP+ 4 x 10GBASE-LR Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO-12, DOM)The transceiver is designed for 10km optical communication applications,which compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 channels signals, and converts them to 4 channel output electrical data.

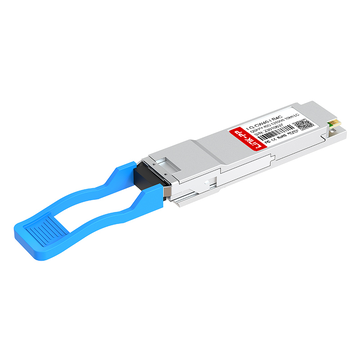

LINK-PP LQ-CW40-LR4C QSFP+ 40GBASE-LR4 Duplex LC/UPC Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)The QSFP+ LR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals,and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output

LINK-PP LQ-CW40-LR4I 40Gbps LR4 QSFP+ 1310nm 10km SMF Optical Transceiver Module DOM Duplex LC（40Gbps,1310nm,10km, Industrial）The LQ-CW40-LR4I QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. LINK-PP Part Number LQ-CW40-LR4I Vendor Name LINK-PP Form Factor QSFP+ Max Data

LINK-PP LQ-CW40-L24C 40GBASE-T QSFP+ Optical Transceiver Module DOM Duplex LC(SMF, 1310nm, 20km)The LQ-CW40-L24C QSFP+ FR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals,and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output

LINK-PP LQ-CW40-FR4C 40GBASE-T QSFP+ Optical Transceiver Module DOM Duplex LC(SMF, 1310nm, 2km, LC,)The LQ-CW40-FR4C QSFP+ FR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 2km transmission distance with SMF.The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals,and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output
