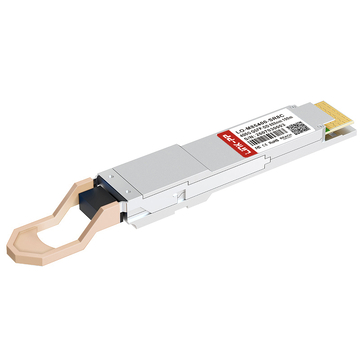

LINK-PP LO-M85400-SR8C 400GBASE-SR8 OSFP 850nm 100m MPO-16/APC IHS/Finned Top 8 x 50G PAM4 MMF Transceiver Module The LINK-PP LO-M85400-SR8C OSFP transceiver supports up to 100m link lengths over multimode fiber (MMF) with MTP/MPO-16 connector. This transceiver is compliant with OSFP MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. It is suitable for 400G Ethernet, Data Center and Cloud Networks.

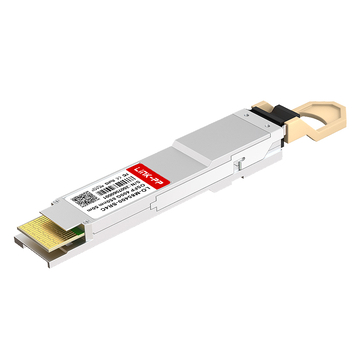

LINK-PP LO-M85400-SR4C 400GBASE-SR4 OSFP RHS/Flat Top 4 x 100G PAM4 850nm 50m MPO-12/APC MMF InfiniBand NDR Transceiver Module The LINK-PP LO-M85400-SR4C is a single-port flat-top OSFP-RHS 400G SR4 multimode optical transceiver operating with 100G PAM4 modulation. Equipped with an MPO-12/APC four-channel optical interface, it supports 400G transmission up to 50 meters over OM4 fiber.Validated for end-to-end InfiniBand NDR deployments, this module works seamlessly with ConnectX-7 OSFP adapters and 2×400G InfiniBand switches. A standout capability enables flexible 2×200G

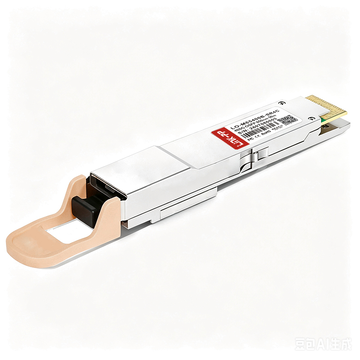

LINK-PP LO-M85400B-SR4C 400GBASE-VSR4 OSFP 8 x 50G PAM4 Transceiver Module (MMF, 850nm, 50m, MPO-12/APC, DOM) The LINK-PP LO-M85400B-SR4C Compatible OSFP optical transceiver module is designed for 400GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via MTP/MPO-12 APC connectors. This transceiver is compliant with CMIS 5.2, IEEE 802.3bs, IEEE 802.3db and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. LINK-PP Part Number LO-M85400

LINK-PP LO-CW400-LR4C 400GBASE-LR4 OSFP 8 x 50G PAM4 Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Duplex LC, DOM, IHS/Finned Top) The LINK-PP LO-CW400-LR4C is an eight-channel electrical, four-channel optical, pluggable, single-mode fiber, OSFP transceiver for 400G Ethernet applications. It converts eight host electrical data lanes in each direction at 53.125Gbps into four optical lanes at 106.25Gbps, and multiplexes them into one single-mode fiber for 425Gb/s optical transmission.Each electrical lane operates at 26.5625 GBd / 53.125 Gbps (PAM4

LINK-PP LO-M31400A-DR4C 400GBASE-FR4 OSFP 8 x 50G PAM4 Transceiver Module(SMF, 1310nm, 500m, MPO-12/APC, DOM, RHS/Flat Top) The LINK-PP LO-M31400A-DR4C 400G DR4 OSFP Optical Transceiver is an InfiniBand 400Gb/s single-port OSFP DR4 single mode parallel transceiver, featuring a Flat-top (OSFP-RHS) form factor and a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. It is qualified for use in end-to-end systems. LINK-PP Part Number LO-M31400A-DR4C Vendor

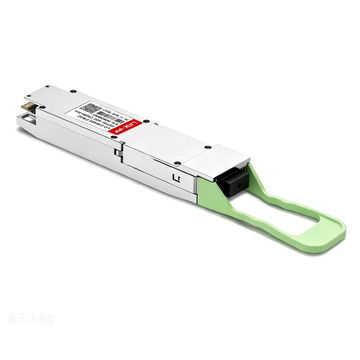

LINK-PP LO-CW400-FR4C 400GBASE-FR4 OSFP 8 x 50G PAM4 Transceiver Module(SMF, 1310nm, 2km, Duplex LC, DOM) The LINK-PP LO-CW400-FR4C 400G FR4 OSFP transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the OSFP MSA, IEEE P802.3cu4 and portions of P802.3bs5. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. LINK-PP Part Number LO-CW400-FR4C Vendor Name LINK-PP Form Factor OSFP Max Data Rate 400Gbps Max Cable Distance 2km Wavelength
