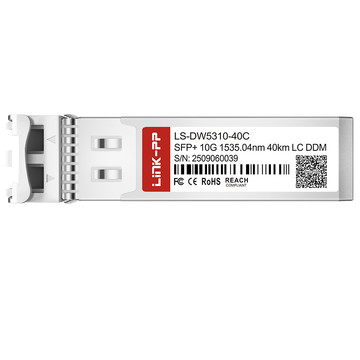

The MRV SFP-10GDWER-53 Compatible LINK-PP module is a premium 10G DWDM SFP+ transceiver engineered for dense wavelength division multiplexing systems. Integrating a Cooled EML laser and PIN photodiode, it supports Max 10.7Gbps data rates. Operating reliably on ITU channel 53, this commercial-grade optical module delivers exceptional network performance while maintaining strict SFP+ MSA compliance.
MRV Part Number
SFP-10GDWER-53
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1535.04nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
DDM/DOM
Supported
Receiver Sensitivity
-15.5dBm
Operating Temperature Range
0°C to +70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of MRV SFP-10GDWER-53 Compatible LINK-PP 10G DWDM SFP+
Explore the primary advantages of the MRV SFP-10GDWER-53 Compatible LINK-PP optical transceiver. Optimized for 10Gbps network environments, this hot-pluggable module utilizes a single 3.3V power supply. It delivers cost-effective, high-capacity fiber communication, ensuring seamless plug-and-play integration for critical enterprise and telecom infrastructures.
The MRV SFP-10GDWER-53 Compatible LINK-PP functions as a highly reliable 10G SFP+ optical module for modern data networking. Fully compliant with SFF-8472 MSA standards, it guarantees superior 10Gbps transmission, offering low latency and maximum stability for enterprise networks.
SFP-10GDWER-53: 10G Connectivity for Metropolitan Area Networks
Elevate your city-wide infrastructure with the SFP-10GDWER-53 transceiver. Specifically designed for Metropolitan Area Networks, it provides reliable 10G connectivity between distant urban locations, seamlessly routing high-speed data while preventing bandwidth bottlenecks during peak operational hours.
SFP-10GDWER-53 Module with DWDM Technology for Fiber Efficiency
Maximize your optical fiber utilization using the SFP-10GDWER-53 transceiver featuring advanced DWDM technology. By transmitting multiple signal channels simultaneously over a single fiber pair, this 10G SFP+ module exponentially increases network capacity without requiring expensive recabling.
SFP-10GDWER-53 Module with 1535.04nm Wavelength
Operating flawlessly on the 1535.04nm wavelength at 195.3 THz, the SFP-10GDWER-53 aligns perfectly with ITU channel 53. This precise C-band DWDM frequency ensures excellent signal integrity and effectively eliminates crosstalk in dense wavelength multiplexed systems.
Engineered for extended reach, the SFP-10GDWER-53 easily supports 40km transmission distances over standard single-mode fiber. The robust Cooled EML transmitter and PIN receiver guarantee pristine 10G optical data links without the need for additional signal amplification.
SFP-10GDWER-53 Module with Duplex LC Interface
The hot-swappable SFP-10GDWER-53 includes a standard duplex LC interface for secure optical connectivity. This universally recognized receptacle ensures broad compatibility with standard fiber patch cables, enabling rapid installations and effortless maintenance within complex network infrastructures.
SFP-10GDWER-53 Module with DOM for Real-Time Monitoring
Maintain complete control over your network health through the SFP-10GDWER-53 module's built-in Digital Optical Monitoring capabilities. Administrators can track vital real-time metrics including temperature, laser bias current, and optical power to ensure continuous system reliability.
The MRV SFP-10GDWER-53 Compatible LINK-PP 10G SFP+ completely satisfies rigorous international certification standards, ensuring maximum operational safety and environmental sustainability for all global telecommunications network deployments.
Each SFP-10GDWER-53 optical transceiver undergoes an intensive quality testing program. We rigorously simulate extreme data traffic to guarantee absolutely flawless 10Gbps transmission before reaching our customers.
SFP-10GDWER-53 Quality Certifications
Reflecting superior manufacturing excellence, the SFP-10GDWER-53 holds critical quality certifications including CE, FCC, UKCA, UL, and REACH, verifying its safe operation and environmentally compliant material composition.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10GDWER-53 Certified for Reliable Host-Device Compatibility
The SFP-10GDWER-53 is thoroughly certified to guarantee outstanding host-device compatibility. It integrates seamlessly into major OEM switches and routers, preventing connection errors and hardware restrictions.
Advanced diagnostic evaluations are performed on every 10G SFP+ transceiver to guarantee sustained performance, physical durability, and completely error-free fiber optic network communication.
Optical Spectrum Test
Validates the precise 1535.04nm DWDM wavelength stability and ensures excellent side-mode suppression performance.
Eye Pattern Test
Examines 10Gbps signal clarity to ensure perfect data transmission with minimal timing jitter.
Bit Error Rate Test
Confirms continuous 10G data streams operate flawlessly over extended periods without packet loss.
Temperature Test
Guarantees the commercial-grade SFP-10GDWER-53 transceiver operates safely between 0°C and +70°C ambient environments.
Product Shipping for MRV SFP-10GDWER-53 Compatible LINK-PP 10G SFP+
We ensure the MRV SFP-10GDWER-53 Compatible LINK-PP 10G SFP+ is securely packaged and rapidly dispatched, guaranteeing your networking equipment arrives in perfect working condition.
Anti-Static Protective Packaging
Every transceiver is carefully sealed in premium electrostatic discharge shielding bags.
Deploying the MRV SFP-10GDWER-53 Compatible LINK-PP module is effortlessly simple. Insert the hot-swappable module into a compatible SFP+ switch port, connect your duplex LC single-mode fiber, and immediately activate a stable 10Gbps DWDM connection without requiring complex network configurations.
SFP-10GDWER-53 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable SFP-10GDWER-53 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes, LS-DW5310-40C is 100% compliant with SFP+ MSA, SFF-8472 (real-time DOM telemetry), SFF-8431, 10GBASE-DWDM, and 10.7Gbps CPRI/eCPRI standards, as well as RoHS and Class I Laser Safety. By
admin
A:
Yes, LS-DW5310-40C is engineered for plug-and-play compatibility with Brocade, Ciena, Cisco, and HPE hardware, and its cooled EML laser outputs a tight 1535.04nm (C53) spectrum that aligns with any standard 100GHz ITU-T DWDM mux/demux. By
admin
A:
Yes, system integrators, VARs, and enterprise buyers receive substantial volume discounts at 20+, 50+, and 100+ units. Contact our sales team to set up trade pricing for LS-DW5310-40C and other DWDM channels. By
admin
A:
Yes, LS-DW5310-40C uses a Duplex LC optical port and is designed for 9/125µm OS2 Single-Mode Fiber (SMF) with UPC polish connectors to reach up to 40km. By
admin
A:
If your street cabinet has active climate control keeping internal temps between 0°C and +70°C, the standard LS-DW5310-40C works great. For unheated or non-air-conditioned outdoor enclosures, request our industrial wide-temp LS-DW5310-40I (-40°C to +85°C). By
