Will this 1270nm SFP integrate seamlessly into our existing 18-channel CWDM MUX/DEMUX chassis using duplex LC patch cords?

Yes. The transceiver strictly adheres to ITU-T G.694.2 CWDM grid specifications and features a standard duplex LC interface. Its optical launch power and high-sensitivity PIN receiver provide sufficient power budget to pass cleanly through passive single-mode MUX/DEMUX filters with minimal insertion loss penalties.

Is it possible to deploy this 1270nm CWDM SFP over legacy multimode fiber for a short intra-building run?

No. The LS-CW271G-80C CWDM module is built specifically for single-mode Fiber. Running it over multimode fiber introduces severe modal dispersion and high optical coupling loss.

How does long-term, unpowered storage in sub-zero winter warehouse conditions affect this commercial-grade 1G SFP module?

The module handles sub-zero warehouse conditions without issue. While active operating limits are 0°C to 70°C, the non-operating storage rating spans -40°C to 85°C, making unpowered cold storage completely safe.

Does this 1270nm module support Fibre Channel traffic alongside standard Ethernet across our shared metro fiber ring?

Yes. The transceiver natively supports both 1.063Gbps Fibre Channel and 1.25Gbps Gigabit Ethernet, allowing you to run storage area network (SAN) traffic across the 1270nm multiplexed CWDM channel.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 1/2/4G Transceiver Modules; 1G CWDM/DWDM SFP; 224972

Click to open expanded view

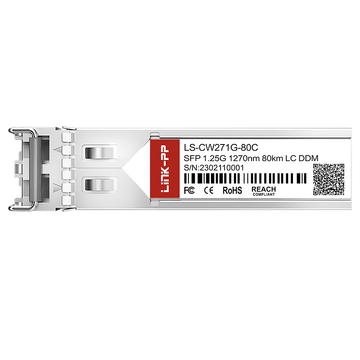

FS CW-SFP1G80-27 Compatible LINK-PP 1G SFP CWDM 1270nm 80km Duplex LC DDM SMF Optical Transceiver Module

Name: FS CW-SFP1G80-27 Compatible LINK-PP 1G SFP CWDM 1270nm 80km Duplex LC DDM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 224972
Price: 41.28 USD
Availability: InStock
Rating: 4.9 (18 reviews)

Product: FS CW-SFP1G80-27 Compatible LINK-PP 1G SFP CWDM 1270nm 80km Duplex LC DDM SMF Optical Transceiver Module
SKU: 224972
P/N: LS-CW271G-80C
Price: $ 48
Stock: 133 in Stock
Sold: 495
Product URL: https://www.l-p.com/products/497630.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

18 Reviews

4 Questions

495 Sold

$ 48

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 48

100

$ 45.6

1000

$ 44.16

3000

$ 42.72

6000

$ 41.28

Manufacture: LINK-PP P/N: LS-CW271G-80C SKU: 224972

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; Juniper; Netgear

Wavelength:: 1270nm; 1310nm; 1330nm; 1350nm

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications

Specification
Matching Products
Download
Q&A
Customer Reviews

FS CW-SFP1G80-27 Compatible LINK-PP 1G SFP Specifications

CW-SFP1G80-27 CWDM SFP module provides 1Gbps data rate over a 1270nm CWDM wavelength, built with a DFB laser and PIN receiver, and achieves an 80km link budget on single-mode fiber. It incorporates real-time DDM functionality covering Tx/Rx power, supply voltage, bias current, and temperature. The standard operating temperature range is 0 to +70°C.

FS Part Number	CW-SFP1G80-27	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1270nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-1 to +4dBm	RX Power	-26 to -1dBm
Receiver Sensitivity	-26dBm	Receiver Overload	-1dBm
EMC (Electromagnetic Compatibility)	Supported	DDM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP MSA、SFF-8472

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-CWxx1G-80x.pdf

Questions & Answers
Ask a Question

No data

Q: Will this 1270nm SFP integrate seamlessly into our existing 18-channel CWDM MUX/DEMUX chassis using duplex LC patch cords? By C***s on 2026-03-20

A: Yes. The transceiver strictly adheres to ITU-T G.694.2 CWDM grid specifications and features a standard duplex LC interface. Its optical launch power and high-sensitivity PIN receiver provide sufficient power budget to pass cleanly through passive single-mode MUX/DEMUX filters with minimal insertion loss penalties. By admin on 2026-03-21
Q: Is it possible to deploy this 1270nm CWDM SFP over legacy multimode fiber for a short intra-building run? By B***h on 2026-01-04

A: No. The LS-CW271G-80C CWDM module is built specifically for single-mode Fiber. Running it over multimode fiber introduces severe modal dispersion and high optical coupling loss. By admin on 2026-01-05
Q: How does long-term, unpowered storage in sub-zero winter warehouse conditions affect this commercial-grade 1G SFP module? By A***r on 2025-06-29

A: The module handles sub-zero warehouse conditions without issue. While active operating limits are 0°C to 70°C, the non-operating storage rating spans -40°C to 85°C, making unpowered cold storage completely safe. By admin on 2025-06-30
Q: Does this 1270nm module support Fibre Channel traffic alongside standard Ethernet across our shared metro fiber ring? By A***s on 2025-05-18

A: Yes. The transceiver natively supports both 1.063Gbps Fibre Channel and 1.25Gbps Gigabit Ethernet, allowing you to run storage area network (SAN) traffic across the 1270nm multiplexed CWDM channel. By admin on 2025-05-19
